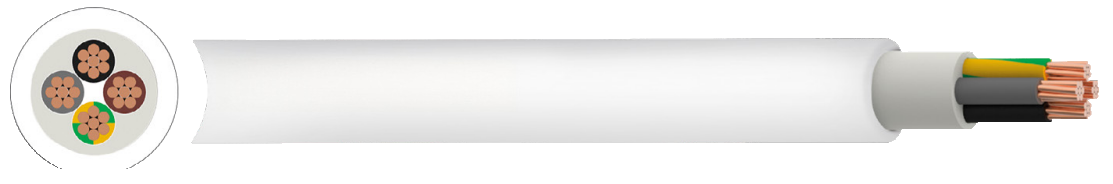

MMO/J HF Cable

APPLICATION

This cable is suitable for fixed installations, indoor, outdoor,   on surface and in conduits. Not to be laid in soil nor directly  in cast concrete. Where needed halogen free, non corrosive gases and low smoke density cables. Self extinquishing, no  after-burning.

CHARACTERISTICS

Voltage Rating Uo/U 450/750V

Temperature Rating

Operating: -15ºC to +70ºC

Short Circuit Temperature

160°C

Minimum Bending Radius

9 x overall diameter
