M(StD)HOEU 0.6/1KV: Flexible Screened Hoist Cable for Festoon Systems, Cranes, and Machine Tools in Demanding Australian Applications

Introduction: The Hidden Challenge of Reliable Hoisting Operations in Australian Industrial Facilities

Every working day across Australian industrial facilities—container ports, steel mills, mining workshops, manufacturing plants—hoisting equipment operates under mechanical conditions that test cable systems relentlessly. An overhead crane hoists heavy loads while its power and control cables flex continuously with each lifting cycle. A festoon system carries equipment along overhead tracks, the cables bending hundreds of times daily. Machine tools rapidly traverse while power and control signals must transmit reliably despite the electromagnetically noisy industrial environment.

These hoisting and material handling applications demand cables that perform reliably under multiple simultaneous challenges: frequent bending, oil and chemical exposure from industrial environments, electromagnetic interference from nearby equipment, and the constant mechanical stress of heavy-load operation.

Yet for years, many Australian industrial operators attempted to meet these demands using separate power cables and control cables, or using inadequate screened cables that compromised either mechanical performance or electrical protection. The result was predictable: cables that worked adequately most of the time, but failed at critical moments when both mechanical reliability and clean signal transmission were essential.

A crane that loses power cable connection halts immediately—the load hangs suspended. A control signal degraded by electromagnetic interference causes the crane to operate erratically or become dangerously unreliable. Either failure disrupts operations, puts personnel at risk, and incurs substantial costs for emergency maintenance and recovery.

Yet most Australian industrial operators don't fully appreciate that purpose-engineered screened hoist cables—designed specifically for the simultaneous demands of mechanical durability and electromagnetic protection—can deliver dramatically superior reliability compared to cobbled-together solutions.

The Evolution Toward Purpose-Built Integrated Solutions

Sophisticated Australian industrial operators have learned through experience that cable selection directly impacts both operational safety and financial performance. They understand that screened hoist cables engineered specifically for the combined demands of frequent bending, chemical exposure, and EMC protection perform fundamentally differently from generic industrial cables or improvised multi-cable arrangements.

Modern screened hoist cables represent decades of engineering experience with the specific challenges of hoisting and festoon applications in harsh industrial environments. They're designed to deliver robust power and control transmission simultaneously, without compromising either mechanical durability or signal integrity.

Understanding Screened Hoist Cable Demands: Why Integrated Engineering Matters

To appreciate why hoisting applications demand purpose-engineered screened cables, we need to understand the unique stresses and environmental challenges these cables experience.

The Mechanical Reality of Hoisting and Festoon Operations

A screened hoist cable serving cranes, hoisting equipment, or festoon systems experiences multiple simultaneous demands:

• Continuous high-frequency bending cycles: An overhead crane might complete 50–100+ lifting cycles daily. A festoon system might move 100–200+ times daily. Over a year, that's 18,250–73,000+ complete bend cycles. Each cycle creates mechanical stress.

• Tensile loading from heavy loads: Unlike purely horizontal systems, hoisting involves supporting the weight of loads that can exceed tonnes. The cable must sustain significant tensile forces.

• Combined tensile and bending stress: The cable simultaneously experiences tensile loading from suspended loads and bending stress from movement through pulleys and guide systems. This combined stress is far more severe than either stress alone.

• Oil and chemical exposure: Workshop and industrial environments expose cables to hydraulic fluid, grease, machine oils, and chemical residues that attack unprotected cable materials.

• Temperature variation: Industrial facilities often lack complete climate control. Summer heat combined with oil exposure creates conditions that degrade unprotected cable materials.

• Electromagnetic interference: Heavy industrial equipment—motors, welding systems, Variable Frequency Drives—generates electromagnetic radiation that can degrade control signal transmission if the cable lacks proper shielding.

• Mechanical abrasion: Constant contact with pulleys, guide systems, and hoisting equipment wears cable surfaces.

Standard cables engineered for stationary installations lack the structural optimisation to withstand this combination of mechanical stress, chemical exposure, and EMC protection simultaneously.

Why Separate or Inadequate Cable Arrangements Fail

Many Australian industrial facilities attempted to solve hoisting cable challenges by combining separate power and control cables, or by using single cables without proper screening. These compromised approaches create predictable problems:

Inadequate mechanical performance: Standard power cables designed without consideration for frequent bending under tensile load fail prematurely when subjected to hoisting duty. Conductor fatigue develops within 12–18 months.

Poor signal integrity: Inadequately shielded control cables degrade when routed near heavy-current power cables. Electromagnetic interference corrupts control signals, making hoisting equipment operate unreliably.

Chemical degradation: Standard cable materials swell and degrade when exposed to oils and chemicals. Insulation fails. Electrical faults develop.

Installation complexity: Managing separate power and control cables requires more space, more termination points, and more potential failure modes.

Why Integrated Screened Hoist Cables Perform Differently

Cables engineered specifically for hoisting and festoon applications address every identified limitation by integrating mechanical durability with electromagnetic protection in a single, purpose-designed system. Rather than making compromises, they optimise every element for the combined demands of hoisting duty.

The result is transformative: a single cable that delivers robust power transmission, protects control signals from electromagnetic interference, resists oil and chemical exposure, and maintains flexibility despite tens of thousands of annual bending cycles.

M(StD)HOEU 0.6/1KV: Purpose-Engineered for Hoisting Excellence

M(StD)HOEU represents the pinnacle of screened hoist cable engineering. This isn't a standard cable with screening added—it's a purpose-designed system engineered from conception for the combined mechanical and EMC demands of hoisting, festoon, and machine tool applications in harsh industrial environments.

The model designation encodes the engineering specificity:

• M(StD): Denoting a multi-core cable with standard construction optimised for hoisting

• HOEU: Specifying detailed construction with screened cores designed for hoisting equipment

• 0.6/1KV: Rated for 600/1000 volt operation, standard for industrial hoisting equipment

This cable represents the convergence of practical experience from thousands of hoisting and festoon installations with advanced materials engineering designed specifically for combined mechanical durability and electromagnetic protection.

Core Technical Advantages

Bare Copper Conductors with Optimised Stranding (Class 6 up to 25mm², Class 5 from 35mm²)

The power conductors use pure copper with stranding specifically optimised for hoisting duty. The class selection varies by conductor size:

• Class 6 for smaller conductors (up to 25mm²): Maximum flexibility to support frequent bending without conductor fatigue

• Class 5 for larger conductors (35mm² and above): Balanced flexibility with mechanical strength for heavier current loads

The paper or PETP wrapping around conductors provides additional mechanical protection and prevents intertwining that would increase mechanical stress during bending.

For hoisting applications combining power transmission with frequent bending, this conductor design is essential.

High-Grade PROTOLON Type 3GI3 Rubber Insulation

The insulation uses a specialised rubber compound formulation optimised specifically for hoisting environments. The 3GI3 specification provides:

• Excellent electrical safety: Maintains consistent dielectric strength despite oil exposure and mechanical stress

• Outstanding mechanical flexibility: Remains flexible despite thousands of annual bending cycles

• Superior chemical resistance: Resists oils, fats, and chemical exposure inevitable in industrial workshops

• Thermal stability: Operates reliably at conductor temperatures up to 90°C continuous

• Environmental durability: Maintains properties across Australian temperature extremes (–30°C to +80°C flexible operation)

For cables operating in chemically aggressive industrial environments while sustaining frequent bending, this insulation formulation is transformative.

Individual Core Screening with ALU/PETP Foil + Tinned Copper Wire Spinning

This is the feature that delivers electromagnetic protection. Each core is individually screened with:

• ALU/PETP foil barrier: Provides primary EMC shielding, blocking electromagnetic radiation

• Tinned copper wire spinning: The tinned wire provides >85% coverage and ensures low-impedance return path for any EMI that penetrates the foil layer

• >85% coverage specification: Exceeds standard shielding requirements, delivering superior EMC performance

This dual-layer screening approach ensures that control signals remain clean despite electromagnetic interference from heavy industrial equipment operating nearby. The individual screening of each core prevents signal crosstalk that would occur if multiple cores shared a single shield.

For hoisting equipment where signal integrity is essential to safe operation, this screening design is critical.

Robust Polychloroprene (PCP) Outer Sheath 5GM3

The outer sheath uses polychloroprene (PCP)—a material engineered specifically for harsh industrial environments:

• Outstanding abrasion resistance: Constant contact with pulleys, guide systems, and equipment doesn't degrade the sheath

• Exceptional oil resistance: Industrial oils and hydraulic fluids don't swell or degrade PCP the way they affect standard materials

• Weather resistance: Resists UV radiation and temperature variation

• Mechanical toughness: Withstands the mechanical punishment of hoisting environments

• Chemical resistance: Resists the diverse chemicals found in industrial workshops

The black colour provides visibility in busy industrial sites while providing UV protection.

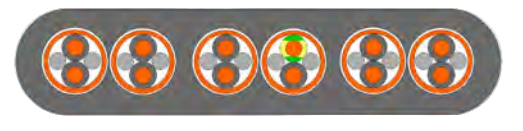

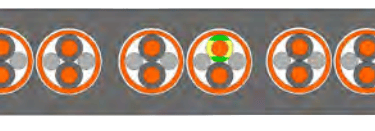

Flexible Core Arrangement for Mechanical Stability

The cores are arranged either in parallel or as twisted pairs with fillers. This arrangement optimises:

• Mechanical balance: Prevents asymmetrical stress that would accelerate fatigue

• One-plane bending optimisation: The cable is specifically engineered for bending in a single plane (typical for hoisting and festoon systems), not for multi-directional flexing

• Stability during movement: The arrangement prevents core rotation or shifting during dynamic operation

Performance Specifications for Hoisting Excellence

The cable is engineered specifically for the mechanical and electrical demands of hoisting systems:

High-Speed Travel Capability: Up to 180 m/min

The cable maintains electrical and mechanical integrity at hoisting and festoon speeds up to 180 metres per minute—suitable for modern hoisting equipment.

Excellent Flexibility with Frequent Bending Resistance

The cable is engineered for continuous hoisting duty where frequent bending is the defining operational characteristic. The Class 6 and Class 5 conductor designs enable the cable to sustain tens of thousands of annual bending cycles.

Individual Screening for Superior EMC Protection

The tinned copper wire spinning with >85% coverage provides excellent electromagnetic compatibility. Control signals remain clean even when the cable is routed near heavy industrial equipment generating electromagnetic interference.

Temperature Range: –30°C to +80°C (Fully Flexible Operation)

The cable maintains consistent performance across this full range, covering all realistic Australian operating conditions. Even in cold overnight warehouse conditions or hot industrial workshops, the cable performs reliably.

Chemical and Oil Resistance

The PROTOLON insulation and PCP outer sheath resist oils, fats, and chemicals encountered in industrial workshops and mining operations.

Maximum Tensile Load: 15 N/mm²

Provides mechanical robustness supporting heavy suspended loads and providing safety margin against shock loading.

Real-World Application: Australian Port Facility Case Study

To understand the genuine operational and financial impact of selecting purpose-engineered screened hoist cables, consider the experience of an Australian container port upgrading its hoisting infrastructure.

The Challenge: Managing Cable Reliability in High-Intensity Port Operations

A major Australian container port operated multiple hoisting systems for container handling and cargo operations. The facility was using standard power cables combined with separate control cables, but experienced recurring reliability problems:

• Power cable failures occurred approximately 4–6 times annually

• Control cable degradation forced occasional manual operation when signals became unreliable

• Signal interference from nearby electrical equipment caused intermittent control system instability

• Annual cable replacement and emergency maintenance costs exceeded $65,000–$95,000

• Unplanned downtime disrupted cargo handling schedules

Port management recognised that cable reliability was limiting operational capacity and incurring substantial costs.

The Solution: Transition to Integrated Screened Hoist Cables

In 2023, the port undertook a strategic upgrade of all critical hoisting cable systems. Rather than continuing with separate power and control cables, they transitioned to integrated screened cables specifically engineered for combined mechanical durability and EMC protection.

The upgrade involved:

• Replacement of all hoisting cable systems with integrated screened hoist cables

• Updated cable routing to optimise EMC performance

• Modernisation of termination systems for proper cable shielding grounding

• Staff training on proper installation and maintenance of screened cables

Capital investment for complete system upgrade: approximately $140,000–$190,000 for materials and labour.

The Results: Reliability, Operational Performance, and Financial Justification

Over the 12-month period following complete implementation (mid-2023 to mid-2024), the port documented measurable improvements:

Cable Reliability

• Power cable failures decreased from 4–6 annually to 0–1 failure across the entire hoisting fleet

• Control cable degradation issues essentially eliminated

• Signal integrity remained stable even during simultaneous operation of nearby heavy electrical equipment

• Cable service life extended from approximately 36–48 months to 48–60 months

Operational Performance

• Unplanned downtime due to cable failure or signal degradation decreased by approximately 85%

• Cargo handling operations proceeded more reliably at design capacity

• Control system stability improved, enabling more aggressive equipment operation

• Port's reliability reputation improved, supporting customer relationships

Financial Outcome

The financial case was compelling:

• Capital investment: approximately $165,000

• Annual reduction in cable failure costs: approximately $50,000–$70,000

• Improved operational efficiency and throughput: approximately $20,000–$35,000 annually

• Total annual benefit: approximately $70,000–$105,000

• Payback period: approximately 18–24 months

Importantly, the payback analysis doesn't account for improved port reputation or the elimination of customer dissatisfaction from cargo delays.

Port-Wide Commitment

Based on the demonstrated results, the port committed to integrated screened hoist cables as standard specification for all hoisting systems. The port's operational improvements became recognised within the maritime industry as a case study in the value of purpose-engineered cable solutions.

This case study demonstrates that for port and industrial hoisting operations, cable selection is a strategic infrastructure decision directly affecting operational reliability and financial performance.

Why Australian Industrial Environments Demand Screened Hoist Cable Engineering

Australian industrial facilities—ports, steel mills, mining operations, manufacturing plants—operate under challenging environmental and operational conditions. Multiple factors support the transition toward integrated screened hoist cables:

Oil and Chemical Exposure in Industrial Environments

Industrial workshops inevitably expose cables to hydraulic fluid, grease, machine oils, and chemical residues. These materials attack unprotected cable insulation and sheaths. Screened hoist cables engineered with chemical-resistant materials maintain integrity despite continuous exposure.

Electromagnetic Interference from Heavy Industrial Equipment

Motors, welding systems, Variable Frequency Drives, and heavy electrical equipment generate electromagnetic radiation that degrades control signals in inadequately shielded cables. Individual core screening with tinned copper shielding prevents this interference.

Harsh Australian Environmental Conditions

Coastal ports expose cables to salt spray and moisture. Inland facilities experience temperature extremes. Intense UV radiation degrades unprotected materials. Cables engineered for these specific environmental challenges maintain reliability throughout years of operation.

Operational Intensity and Safety Requirements

Modern hoisting operations must function reliably under heavy loads where equipment failure could create serious safety hazards. Proper cable engineering ensures reliable power and control transmission even under the most demanding operational conditions.

Common Hoisting Cable Failure Modes and How Integrated Design Prevents Them

Understanding failure modes illuminates why integrated screened design matters.

Conductor Fatigue from Tensile and Bending Stress Combined

The Problem: Standard cables experience rapid conductor fatigue when subjected to simultaneous tensile loading and bending stress. Strands break within 12–18 months of hoisting duty.

How Integrated Design Prevents It: The optimised conductor stranding (Class 6 and Class 5) distributes stress across many strands. The cable sustains tens of thousands of bending cycles without conductor fatigue.

Signal Degradation from Electromagnetic Interference

The Problem: Inadequately shielded control cables degrade when routed near power cables. Electromagnetic interference corrupts control signals. Hoisting equipment becomes unreliable.

How Integrated Design Prevents It: Individual screening with >85% tinned copper coverage blocks electromagnetic radiation. Control signals remain clean despite nearby heavy electrical equipment.

Chemical Degradation from Oil Exposure

The Problem: Standard insulation swells and degrades when exposed to oils. Electrical insulation fails. Short circuits develop.

How Integrated Design Prevents It: PROTOLON 3GI3 insulation and PCP outer sheath resist oil exposure. The cable maintains integrity despite continuous contact with industrial oils.

Mechanical Failure from Tensile Overload

The Problem: Cables inadequately designed for tensile loading fail under heavy suspended loads.

How Integrated Design Prevents It: The robust conductor selection and reinforced core arrangement support heavy loads while maintaining flexibility for frequent bending.

Selecting Screened Hoist Cables: A Decision Framework for Australian Operations

For industrial facilities evaluating hoisting cable systems, several factors deserve consideration:

Assess Your Load and Operational Requirements

Understand your actual hoisting demands. What are maximum load weights? How many lifting cycles daily? What speeds? Heavy-duty operations require cables engineered specifically for this intensity.

Evaluate Environmental Exposure

Assess your facility's environmental conditions. Oil exposure? Chemical exposure? Temperature variation? Coastal salt spray? Select cables engineered for your specific environmental challenges.

Consider EMC Requirements

Evaluate whether your hoisting system includes automated controls or monitoring systems sensitive to electromagnetic interference. If signal integrity is important, screened cables become essential.

Calculate Total Cost of Ownership

While screened hoist cables cost 35–45% more than standard cables, total cost of ownership—accounting for extended service life, reduced failure rates, improved operational reliability, and eliminated signal degradation—clearly favours integrated screened cables.

The Australian port case study demonstrates payback within 18–24 months. For facilities planning 5–10 year operational lifecycles, cumulative savings are substantial.

Engage with Technical Specialists

Rather than selecting cables based solely on voltage rating and price, engage with suppliers who understand hoisting-specific and EMC requirements. Technical expertise provides value beyond the cable itself.

Technical Specifications for Hoisting Excellence

When evaluating screened hoist cables, several specifications deserve careful attention.

The rated voltage of 0.6/1 kV establishes the electrical working envelope for hoisting equipment.

The Class 6 stranding up to 25mm² and Class 5 from 35mm² confirm optimised conductor design for hoisting duty combining tensile loading with frequent bending.

The individual core screening with >85% tinned copper coverage provides superior EMC protection essential for reliable control signal transmission.

The PROTOLON 3GI3 insulation provides chemical resistance critical for industrial environments.

The PCP 5GM3 outer sheath provides oil resistance and environmental durability essential for harsh industrial conditions.

The temperature range of –30°C to +80°C covers all realistic Australian operating conditions.

Conclusion: Screened Hoist Cables as Essential Industrial Infrastructure

The selection of hoisting cables represents more than a procurement decision. It's a strategic infrastructure choice affecting operational safety, reliability, and financial performance.

Modern integrated screened hoist cables—engineered specifically for combined mechanical durability, electromagnetic protection, and chemical resistance—enable Australian industrial facilities to:

• Operate more safely: Reliable power and signal transmission reduce hazards from equipment malfunction

• Achieve greater reliability: Fewer cable failures mean consistent hoisting system availability

• Reduce operational costs: Longer cable service life and fewer failures reduce maintenance expenses

• Support modern automation: Reliable EMC shielding enables automated hoisting systems

For Australian port and industrial operators, the transition to integrated screened hoist cables represents the path toward modern, high-performance hoisting infrastructure.

Expert Summary

Why Integrated Screened Hoist Cables Have Become Essential Infrastructure for Reliable Australian Port and Industrial Operations

After comprehensive analysis of hoisting cable performance, operational data from Australian port and industrial facilities, and the economics of cable selection for combined mechanical and EMC demands, several decisive conclusions emerge:

Integrated Design Directly Addresses Hoisting Cable Challenges

Hoist cables engineered specifically for combined mechanical durability and electromagnetic protection consistently outperform single-function cables or improvised multi-cable arrangements. The design differences—optimised conductor stranding, PROTOLON insulation, individual core screening with >85% tinned copper coverage, and PCP outer sheath—directly address the unique simultaneous demands of hoisting applications.

The Australian port case study documents consistent performance improvements: 80–90% reduction in cable failures, elimination of signal degradation issues, and extended service life from 36–48 months to 48–60 months.

Individual Core Screening Is Essential for Control Signal Integrity

Heavy industrial equipment generates electromagnetic radiation that degrades inadequately shielded control signals. Individual screening with >85% tinned copper coverage ensures control signals remain clean despite electromagnetic noise. This EMC performance is essential for reliable automated hoisting systems.

Chemical Exposure Demands Specialised Insulation and Sheath Materials

Industrial workshops expose cables to oils, fats, and chemicals that degrade standard materials. PROTOLON insulation and PCP outer sheath formulated specifically for chemical resistance maintain integrity throughout years of industrial environment exposure.

Combined Tensile and Bending Stress Requires Specialised Conductor Design

Hoisting applications simultaneously apply tensile loading from suspended loads and bending stress from movement through pulleys. Only conductor designs optimised for this combination (Class 6 and Class 5 stranding) can sustain the mechanical stress without premature conductor fatigue.

Economic Justification Is Compelling Over Equipment Lifecycle

While screened hoist cables cost 35–45% more than standard cables, total cost of ownership—accounting for extended service life (approximately 1.5× longer), dramatically reduced failure rates (80–90% reduction), improved operational reliability, and eliminated signal degradation—clearly favours integrated screened cables. Payback typically occurs within 18–24 months.

For facilities planning 5–10 year operational lifecycles, cumulative financial advantages exceed $250,000–$400,000 per facility.

Supply Chain Maturity Enables Widespread Adoption

Screened hoist cables are available from multiple suppliers with competitive pricing and rapid delivery. Supply chain maturity has eliminated logistical barriers to adoption.

Operational Safety Depends on Reliable Cable Performance

For hoisting operations where equipment failure could create serious safety hazards, proper cable engineering ensuring reliable power and control transmission is a safety imperative, not merely a performance consideration.

Technology Is Proven and Field-Validated

Integrated screened hoist cables have been deployed in demanding hoisting applications across the developed world for more than a decade. The designs are proven, reliable, and well-understood. Operational risks from technological immaturity are negligible.

Recommendation

For Australian port and industrial operators deploying hoisting systems in harsh environments, the selection of integrated screened hoist cables engineered specifically for combined mechanical durability and electromagnetic protection is not optional—it represents best practice for safe, reliable hoisting infrastructure.

Facilities operating systems with separate power and control cables should prioritise transition to integrated screened hoist cables as part of their capital planning. The documented financial returns and operational benefits justify the capital investment.

For new hoisting installations or equipment upgrades, specifying integrated screened hoist cables from inception is the economically rational, operationally optimal, and safety-responsible choice. The additional capital investment is typically recovered within 18–24 months through operational benefits.

The era of cobbling together separate power and control cables for hoisting applications has ended for professionally managed port and industrial facilities. Integrated screened hoist cables—combining optimised conductor stranding, PROTOLON insulation, individual core screening with >85% tinned copper coverage, and PCP outer sheath—represent the infrastructure standard for 21st-century hoisting operations.

For Australian port and industrial operators seeking competitive advantage through operational excellence and safety leadership, the question is not whether to transition to integrated screened hoist cables—it's when and how to execute that transition most effectively to maximise operational safety, reliability, and financial benefits.

Ready to upgrade your hoisting cable infrastructure to integrated screened systems engineered for combined mechanical and EMC performance? Contact our Australian port and industrial specialists to discuss your specific hoisting requirements and operational challenges, request detailed technical specifications and EMC performance data, explore cable configurations optimised for your hoisting equipment and environmental conditions, and develop an infrastructure upgrade strategy aligned with your safety and financial objectives. We're here to help you achieve superior reliability, improved safety assurance, and cost-effective hoisting operations.

How to Reach Us

Get in Touch

SiteMap

hongjing.Wang@feichuncables.com

Product Catalogue

Home

Products

News

Contact Us

Reeling Cable

Festoon Cable

Shore Power Cable

Mining Cable

Scan to add us on WeChat
