M(StD)HOEU Screened Flat Festoon Cable

Oil and chemical resistant cable for hoisting gears and transportation systems

$5.00

Design features

Conductor Copper bare,

up to 25 mm²: finest wire class 6 according to IEC 60228 / DIN EN 60228;

35 mm² and up: fine wire class 5 according to IEC 60228 / DIN EN 60228;

Conductor wrapping: paper tape or PETP-film

Insulation Rubber, type pf compound 3GI3 according to DIN VDE 0207-20

Core identification Up to 5 cores: colored in accordance with DIN VDE 0293-308

From 6 cores: black with white numbers

Individual screen ALU/PETP foil, overlapped. Spinning of tinned copper wires, covering > 85 %. Wrapping with

PETP-film

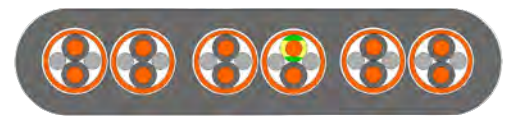

Core arrangement Cores arranged in parallel;

Pair twisting: 2 Cores and 2 fillers twisted with varying direction of lay and short length of lay, wrapping with PETP-film, pairs parallel arranged

Outer sheath Polychloroprene, type of compound 5GM3 according to DIN VDE 0207-21.

Colour: black

Application

Flexible power and control cables, in particular for hoisting gears transportation systems, machine tools, at medium mechanical stresses and for severe bending in one plane only; in dry, damp, wet areas and also outdoors; where resistance against oils, fats and chemical influences is required.

Global data

Brand M(StD)HOEU

Standard UL Style 4540

Standard Based on DIN VDE 0250-809

Electrical parameters

Rated voltage 0.6/1 kV (600/1000V)

Max. permissible operating voltage AC 0.7/1.2 kV

Max. permissible operating voltage DC 0.9/1.8 kV

AC Test Voltage 2.5 kV (5 Min.)

Current Carrying Capacity description Acc. to VDE 0298-4

Thermal parameters

Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
