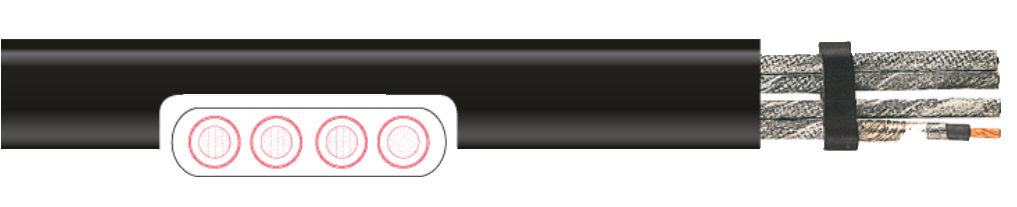

M(StD)HÖU (EMV) Power and Control Cable for Heavy-Duty Mobile Applications

Designed for Trolley Systems, Hoisting Devices, and Continuous Flexing in Dry, Humid, Wet, and Outdoor Conditions

$15.00

Structure & Specifications

conductor material bare copper strand

conductor class acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class

5/6

core insulation rubber compound

core identification acc. to VDE 0293-308 up to 5 wires coloured, from 6 wi-

res black with white numerals with GNYE stranding cores parallel side by side

shield coated foil + wrapped tinned wire

outer sheath special rubber-compound

sheath colour black

printing yes

rated voltage 0,6/1 kV

testing voltage 2 kV

current carrying capacity acc. to DIN VDE, see Technical Guideline

min. bending radius fixed acc. to DIN VDE 0298 part 3

min. bending radius moved acc. to DIN VDE 0298 part 3

operat. temp. fixed min/max -40 °C / +80 °C

operat. temp. moved min/max -30 °C / +80 °C temp. at conductor +90 °C

burning behavior self-extinguishing and flame retardant acc. to IEC

60332-1

standard according or similar to DIN VDE 0250 part 809

Application

power and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
