Mud Resistant Cat 5e S/FTP 0.22mm²

Cable

Applications

These Cat5e S/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz. These cables have additional flame retardant, halogen-free, low smoke MUD protecting outer sheaths.

Standards

EN 50173-1

EN 50288-2-1

ISO/IEC 11801

IEC 61156-5

IEC 60332-3-24

IEC 60754-1/2

IEC 61034-1/2

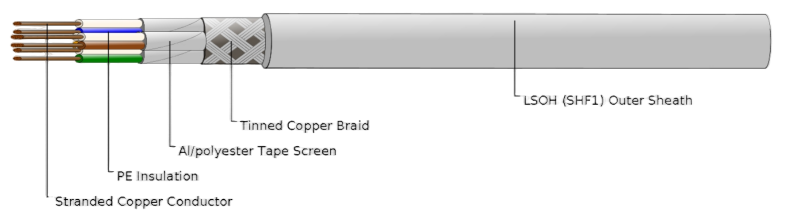

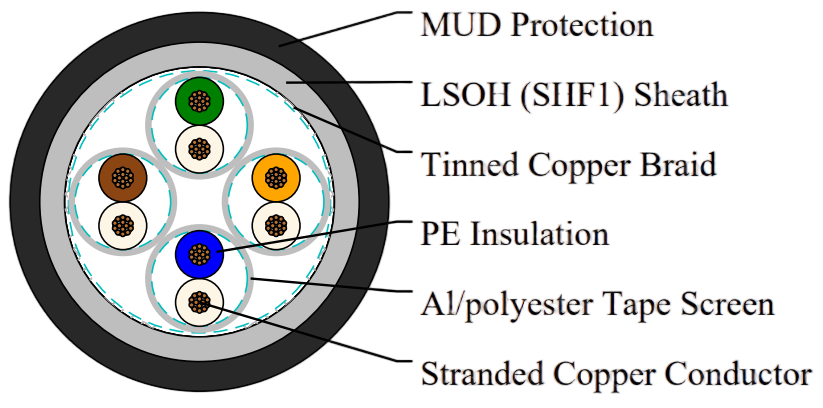

Construction

Conductors	Stranded copper conductor.
Insulation	PE.
Twinning	Two coloured insulated conductors twisted together to form a pair.
Individual Screen	Al/polyester tape.
Overall Screen	Tinned copper wire braid.
Inner Sheath	Oil resistant, flame retardant and halogen free LSOH (SHF1).
Outer Sheath	MUD protecting.

Core Identification

Pair 1	White, Blue
Pair 2	White, Orange
Pair 3	White, Green
Pair 4	White, Brown

Electrical Properties

Maximum DC Loop Resistance	Ω/km	158
Maximum Resistance Unbalance		2%
Minimum Insulation Resistance (500V)	MΩ.km	5000
Nominal Capacitance @800Hz	nF/km	43
Maximum Capacitance Unbalance (pair to ground)	pF/km	1500
Mean Characteristic Impedance @100MHz	Ω	100 ± 5
Nominal Velocity of Propagation		0.75c
Maximum Propagation Delay	ns/100 m	450
Maximum Delay Skew	ns/100 m	15
Maximum Transfer Impedance @1MHz	mΩ /m	10
Maximum Transfer Impedance @10MHz	mΩ /m	8
Maximum Transfer Impedance @30MHz	mΩ /m	10
Minimum Coupling Attenuation	dB	85
