Type 209 Mining Cable – AS/NZS 1802 Heavy-Duty Feeder Cable, 1.1kV–11kV
Durable and Flexible Power Cables for Efficient Mining Operations
$10.00
Parameter | Description |
|---|---|
Cable Type | Composite Screened Mining Cable |
Applicable Standards | AS/NZS 1802, AS/NZS 1972, AS/NZS 5000.1 |
Rated Voltage | 1.1/1.1 kV to 11/11 kV |
Conductor Material | Tinned copper (three cores plus central pilot) |
Conductor Size | Up to 35 mm² and above |
Insulation | EPR (R-EP-90) |
Insulation Tape | Textile for 1.1/1.1 kV; Semiconductive screen for ≥3.3 kV |
Screen | Composite screen (tinned annealed copper wire + polyester yarn) |
Outer Sheath | Heavy duty HD-85-PCP |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | -25 °C |

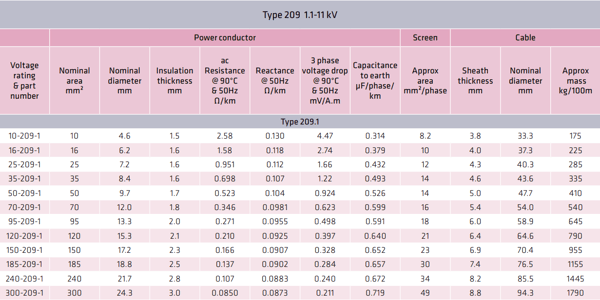

Type 209.1

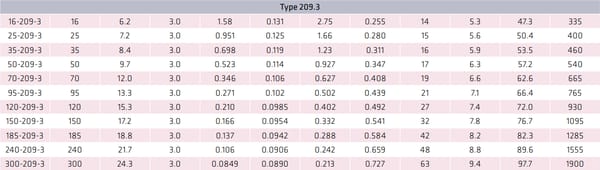

Type 209.3

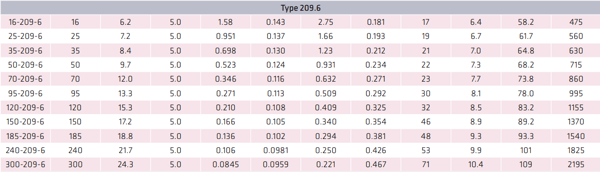

Type 209.6

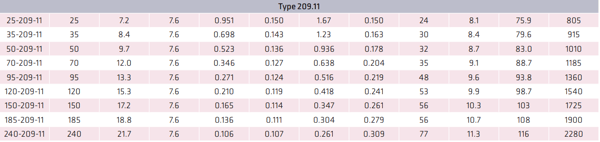

Type 209.11
Type 209 is a composite screened cable designed according to AS/NZS 1802 standard. Widely used in mining applications across 1.1/1.1 kV to 11/11 kV voltage ranges, it serves as a reliable feeder connection cable between transformers and gate-end boxes or equipment such as pumps, fans, and crushers. It can also replace conventional Type A or B feeder cables and is suitable for above-ground power supply to mobile equipment, ensuring versatility and efficiency in harsh mining environments.
Product Features
Standards Compliant: Fully complies with Australian/New Zealand AS/NZS 1802, 1972, and 5000.1 standards.
Versatile Application: Suitable for feeder connections between transformers and equipment in mining operations, including pumps, fans, crushers, and mobile equipment above ground.
Durable Construction: Composite screened cores and heavy-duty sheath offer excellent resistance to mechanical impact, chemical exposure, water intrusion, and UV/weather conditions.
Flexible Design: Flexible cable suitable for installation in free air, ducts, and on mobile machinery.
Fire Retardant: Designed to behave safely in flame and fire conditions as per applicable standards.
Application Areas

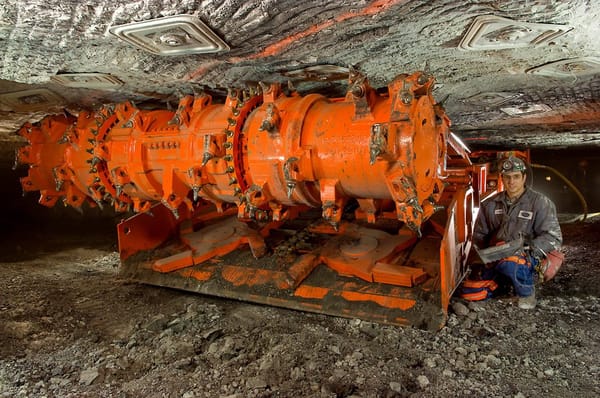

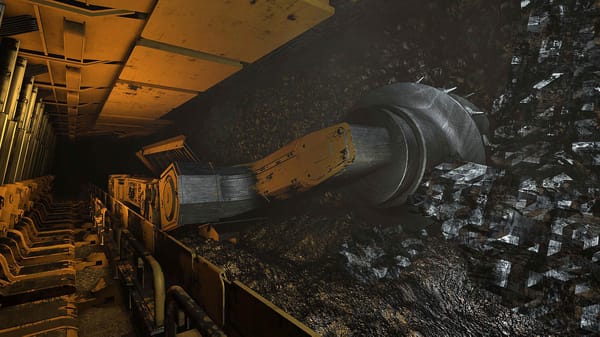

Ideal for use in mining environments requiring feeder cables between transformers and gate-end boxes or heavy-duty equipment such as pumps, fans, and crushers. Suitable for both underground and above-ground applications, including power supply to mobile mining equipment.
Customization Services
Cable sheath reinforcement and custom lengths are available upon request to meet specific project requirements.
After-sales Support
We provide comprehensive technical assistance, warranty services, and rapid response for any field issues related to Type 209 mining cables.
Contact Us
Please contact our sales or technical team for quotations, detailed technical datasheets, and customized solutions tailored to your mining project needs.
