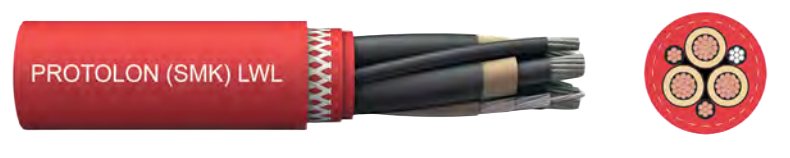

Multi-Function Reeling Cable - (SMK)-LWL (N)TSKCGEWOEU
Power and data solution for high travel speeds and dynamic loads
$25.00
Application
Flexible medium voltage reeling cable with integrated fibre-optics for the combined transmission of energy and data, for application under high or extreme mechanical stresses, e.g. high travel speeds, dynamic tensile loads, multiple changes of direction into different planes, churning on running over rollers and torsional stresses. Mainly for mobile equipment, e.g. fast-moving container cranes and large moving equipment.
Global data
Type designation (N)TSKCGEWOEU
Standard Based on DIN VDE 0250-813
Certifications / Approvals GOST-R

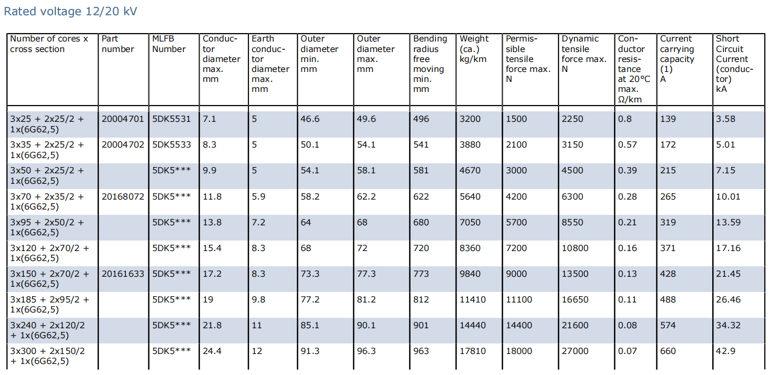

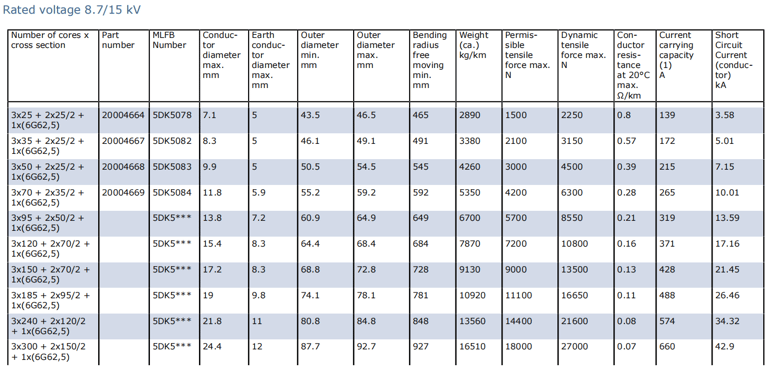

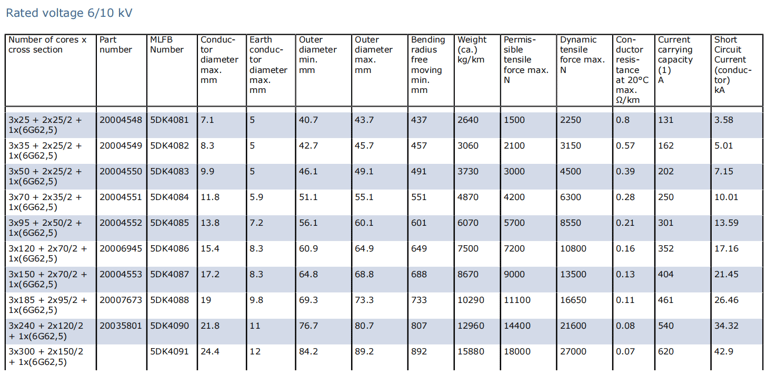

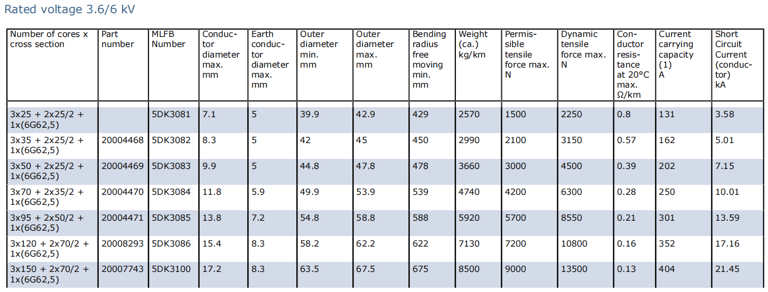

Electrical parameters Rated voltage Max. permissible operating voltage AC Max. permissible operating voltage DC AC test voltage EMC Data transmission Current Carrying Capacity description | 3.6/6 kV 6/10 kV 8.7/15 kV 12/20 kV 4.2/7.2 kV 6.9/12 kV 10.4/18 kV 13.9/24 kV 5.4/10.8 kV 9/18 kV 13.5/27 kV 18/36 kV 11 kV 17 kV 24 kV 29 kV This design exhibits an extremely low interference level as a result of use a symmetrical three- core design with very narrow manufacturing rates. Special design with fibre-optics for trouble free data transmission at high data rates. According to DIN VDE 0298, Part 4. Higher values are permissible in specific cases (please consult the manufacturer). |
Chemical parameters |
|
Resistance to oil | Acc. to DIN EN 60811-404 and DIN VDE 0473-811-404, paragraph 10 |
Weather resistance | Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture. |
Water resistance | According to HD 2216 |
Thermal parameters Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -35 °C ; max +80 °C | |
Mechanical parameters Max. tensile load on the conductor | 20 N/mm² |
Max. tensile load on the conductor during acceleration | Up to 30 (acc. to DIN VDE 0298 part 3: 15 N/mm²) N/mm² |
Torsional stress | ± 25 °/m |
Min. bending radius | Acc. to DIN VDE 0298 part 3 |
Min. distance with S-type directional changes | 20 x D (cable diameter) |
Travel speed | - Gantry (reeling operation): no restriction. For speeds beyond 240 m/min it is recommended to consult the cable manufacturer |
Additional tests | Reversed bending test, torsional stress test |
