N07V-K

Application and Description

These cables are suitable in building trade, industry, handicraft, wiring and power transport. Fitted inside pipes or ducts, either visible or recessed or similar closed systems. Suitable for static, protected use inside switching or control equipment, for alternating current up to 1000 V or direct current up to 750 V to ground. 1 mm² section is suitable only for circuits of lifting devices and machines. In fire risk installation the max operating temperature must not be above 55°C. Unsuitable for laying in the external and underground.

Standard and Approval

HD 21

CEI 20-22

CEI-UNEL 35752

CEI 20-52

IEC 332-3

Directive Low Voltage Directive 73/23/EEC and 93/68/EEC

ROHS compliant

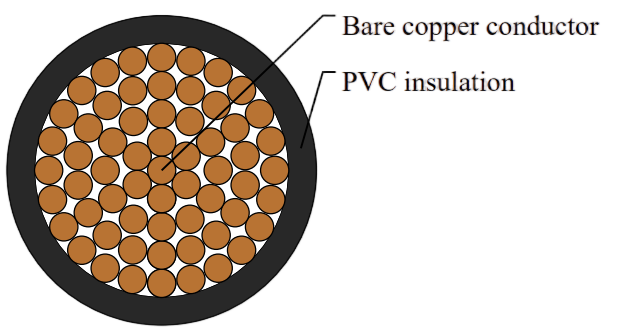

Cable Construction

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

Special PVC R2 core insulation

Technical Characteristics
