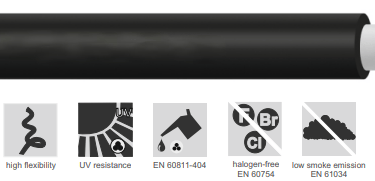

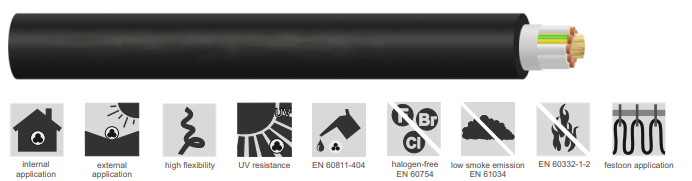

(N)12YRD11Y-J/O Halogen-Free Power and Control Cable for Trolley Systems and Drag Chains – Flexible, UV-Resistant, and Submersible Solution

Introduction

In today's demanding industrial environments, the reliability and performance of electrical infrastructure components are paramount to operational success. High-flexibility power and control cables serve as the backbone of modern automated systems, enabling seamless power transmission and signal communication across moving machinery, conveyor systems, and complex material handling equipment. As industries increasingly prioritise safety, environmental compliance, and operational efficiency, the demand for specialised cable solutions has evolved significantly.

The emergence of halogen-free polyurethane (PUR) cables represents a significant advancement in industrial cable technology. Unlike traditional PVC-sheathed cables, halogen-free alternatives offer superior safety characteristics during fire events, producing minimal smoke and non-toxic gases that protect both personnel and sensitive equipment. This technological shift aligns with stringent European regulations and Australian workplace safety standards, making halogen-free solutions increasingly relevant across diverse industrial sectors.

The (N)12YRD11Y-J/O halogen-free power and control cable exemplifies this evolution, combining advanced materials science with practical engineering to deliver exceptional performance in challenging applications. Rated at 0.6/1 kV and designed specifically for high mechanical stress environments, this cable addresses the growing need for reliable, flexible connectivity solutions in modern industrial operations.

Key Application Scenarios

The versatility of the (N)12YRD11Y-J/O cable makes it exceptionally suited for numerous demanding industrial applications where conventional cables often fail to meet performance requirements.

Frequent Bending Environments

In cable trolley systems and drag chains, cables experience continuous flexing and mechanical stress throughout their operational life. The (N)12YRD11Y-J/O cable's specialised construction, featuring fine-stranded copper conductors and aramid yarn reinforcement, ensures reliable performance even under millions of bending cycles. This makes it ideal for automated guided vehicles (AGVs), overhead crane systems, and robotic assembly lines where consistent power delivery is critical.

Mobile Machinery Applications

Conveyor systems and machine installations with moving components present unique challenges for electrical connectivity. The cable's robust design withstands the mechanical stresses associated with constant motion, vibration, and positional changes. From packaging machinery to mining equipment, the cable maintains electrical integrity whilst accommodating the dynamic requirements of modern industrial processes.

Environmental Versatility

The cable's construction enables reliable operation across diverse environmental conditions, from controlled indoor manufacturing environments to harsh outdoor industrial sites. Its excellent resistance to moisture, UV radiation, and temperature extremes makes it suitable for applications ranging from food processing facilities to marine terminals and construction sites.

Submersible Applications

Upon request, the cable can be manufactured for permanent underwater use up to 50 metres depth, opening applications in underwater conveyor systems, dockside handling machinery, and offshore industrial installations. This capability significantly expands the cable's utility in marine and aquatic industrial environments whilst maintaining full electrical performance.

Core Features and Benefits

Advanced Halogen-Free Construction

The cable's halogen-free PUR sheath represents a significant safety advancement over traditional cable designs. In fire events, this construction produces dramatically reduced smoke emissions and eliminates the generation of toxic halogen gases that can cause both immediate harm to personnel and long-term damage to electronic equipment. This characteristic proves invaluable in enclosed industrial environments, tunnels, and facilities with sensitive instrumentation.

Exceptional Environmental Resistance

The polyurethane sheath demonstrates superior resistance to industrial chemicals, oils, ozone, and UV radiation. This multi-faceted protection ensures consistent performance across varied industrial environments, from chemical processing plants to outdoor material handling facilities. The cable maintains its flexibility and electrical properties even after prolonged exposure to harsh environmental conditions.

Regulatory Compliance

Full compliance with RoHS 2015/863/EU regulations ensures the cable meets strict environmental standards for hazardous substance restrictions. Additionally, conformance to CPR (Construction Products Regulation) 305/2011 and Low Voltage Directive requirements provides assurance of quality and safety in commercial installations across European and Australian markets.

Technical Highlights

Temperature Performance Range

The cable operates reliably across an impressive temperature range from -50°C to +90°C for fixed installations, with flexible operation maintained from -40°C to +90°C. This broad operational envelope ensures consistent performance across seasonal variations and diverse climate conditions, making it suitable for both arctic industrial applications and tropical manufacturing environments.

Electrical Specifications

Rated at 0.6/1 kV with a maximum AC test voltage of 2.5 kV, the cable provides robust electrical performance for industrial power and control applications. The design accommodates maximum permissible operating voltages of 0.7/1.2 kV in AC systems and 0.9/1.8 kV in DC systems, ensuring compatibility with modern industrial electrical systems.

Advanced Conductor Design

The cable features bare copper conductors conforming to Class 5 fine-stranded specifications according to DIN EN/IEC 60228. This construction provides optimal flexibility whilst maintaining excellent electrical conductivity. The fine-stranded design significantly enhances the cable's ability to withstand repeated flexing without conductor fatigue or breakage.

Mechanical Reinforcement

Core arrangement utilises aramid yarn as a central supporting element, providing exceptional tensile strength up to 15 N/mm² per conductor. This reinforcement enables the cable to withstand significant mechanical loads whilst maintaining its electrical and physical integrity. The layered core arrangement around the central aramid element optimises both flexibility and mechanical performance.

Optimised Bending Characteristics

The cable's design accommodates tight bending radii with minimum bend radius of 6 times the outer diameter for fixed installations and 7.5 times for free-moving applications. This characteristic proves essential in space-constrained installations and applications requiring frequent directional changes.

Waterproof Capability (Optional)

The cable's submersible capability extends its application range into aquatic industrial environments previously challenging for electrical connectivity solutions. Suitable for continuous submersion up to 50 metres depth in non-potable water applications, this feature enables reliable power and control connectivity for underwater conveyor systems, marine construction equipment, and offshore industrial installations.

This waterproof capability maintains full electrical performance whilst providing mechanical protection against water ingress and pressure effects. The specialised construction ensures long-term reliability in demanding marine environments whilst meeting applicable safety standards for submersible electrical equipment.

Compliance and Certification

The cable meets comprehensive international standards ensuring both safety and performance reliability. Compliance with EN 60332-1-2 fire behaviour standards demonstrates controlled flame propagation characteristics essential for industrial safety. Conformance to EN 60754 halogen-free requirements and EN 61034 smoke density limitations provides additional assurance of safety performance during fire events.

These certifications represent rigorous testing protocols that validate the cable's performance under extreme conditions, providing engineers and facility managers with confidence in their electrical infrastructure investments.

Use Cases in Real Applications

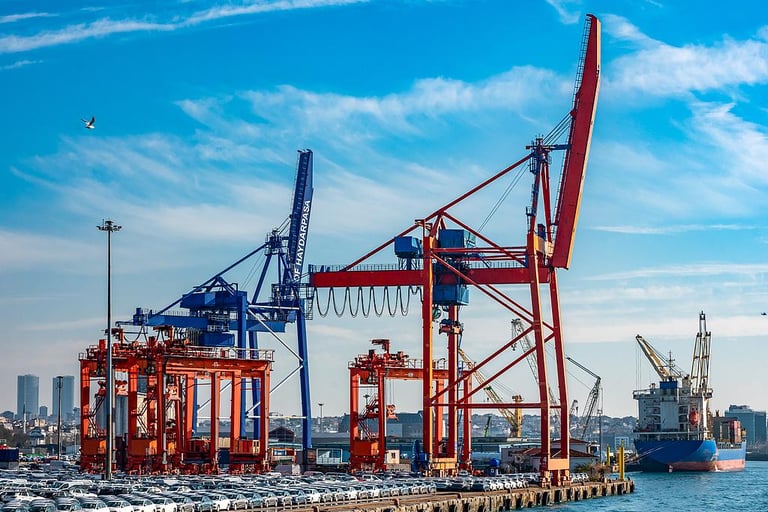

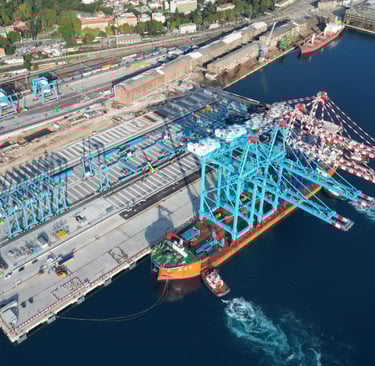

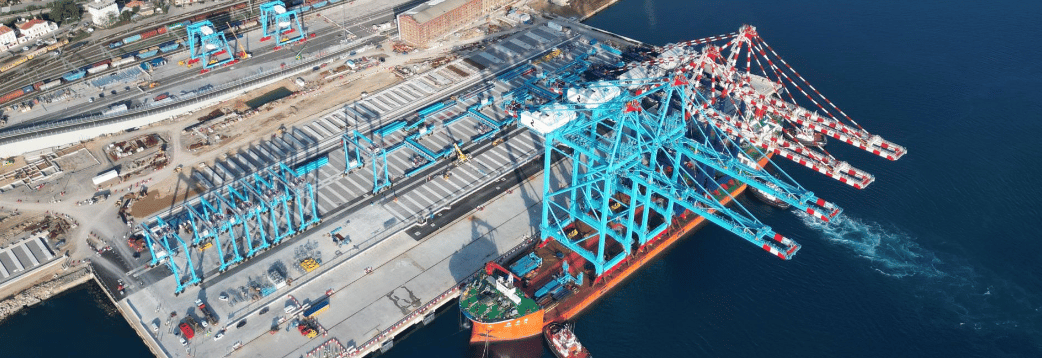

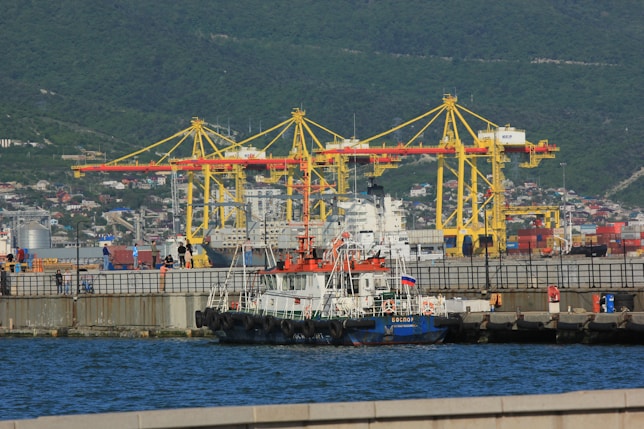

Port and Terminal Operations

Container terminals utilise these cables extensively in automated stacking cranes and ship-to-shore gantry systems. The combination of UV resistance, mechanical durability, and flexible performance ensures reliable operation in harsh marine environments whilst minimising maintenance requirements and operational downtime.

Manufacturing and Assembly Lines

Automotive manufacturing facilities employ these cables in robotic welding systems and automated assembly equipment where continuous flexing and precise positioning are critical. The cable's ability to maintain electrical integrity through millions of flex cycles directly contributes to production line reliability and efficiency.

Mining and Heavy Industry

Underground mining operations and heavy industrial facilities benefit from the cable's chemical resistance and mechanical durability. Applications include mobile crushing equipment, conveyor systems, and material handling machinery operating in demanding environments with exposure to dust, chemicals, and extreme temperatures.

Conclusion

The (N)12YRD11Y-J/O halogen-free power and control cable represents a superior solution for flexible, outdoor, and submersible industrial applications. Its combination of advanced materials, robust construction, and comprehensive regulatory compliance addresses the evolving needs of modern industrial operations where safety, reliability, and environmental responsibility are paramount.

The cable's exceptional mechanical performance, broad temperature range, and chemical resistance make it an ideal choice for demanding applications ranging from automated manufacturing systems to marine industrial installations. The optional submersible capability further extends its utility into previously challenging aquatic environments.

For engineers and facility managers seeking reliable electrical connectivity solutions for dynamic industrial applications, the (N)12YRD11Y-J/O cable offers proven performance backed by comprehensive certifications and real-world operational success across diverse industrial sectors.

For customised cable configurations or specific submersible variants, professional consultation ensures optimal selection for specific application requirements and environmental conditions.

Frequently Asked Questions

Q: What makes this cable suitable for outdoor use compared to standard industrial cables?

A: The halogen-free PUR sheath provides superior UV resistance, moisture protection, and temperature stability from -50°C to +90°C. Unlike PVC cables that can become brittle in cold conditions or degrade under UV exposure, this cable maintains flexibility and electrical performance across diverse outdoor environments.

Q: How does the submersible capability work, and what are the limitations?

A: Upon request, the cable can be manufactured for permanent underwater use up to 50 metres depth. The specialised construction prevents water ingress whilst maintaining electrical integrity. However, it's not approved for potable water systems and requires specific design considerations for each submersible application.

Q: What's the difference between halogen-free and traditional PVC cables in fire situations?

A: Halogen-free cables produce significantly less smoke and no toxic halogen gases during fire events. Traditional PVC cables release hydrochloric acid and other corrosive gases that can cause respiratory harm and damage electronic equipment. This makes halogen-free cables essential for enclosed spaces and facilities with sensitive instrumentation.

Q: Can this cable handle continuous flexing in drag chain applications?

A: Yes, the cable is specifically designed for high-flex applications with Class 5 fine-stranded copper conductors and aramid yarn reinforcement. The minimum bending radius of 7.5 times the outer diameter for moving applications ensures long service life even under continuous flexing conditions.

Q: What certifications does this cable hold for Australian installations?

A: The cable complies with RoHS 2015/863/EU, CPR 305/2011, and relevant EN standards including fire behaviour (EN 60332-1-2) and halogen-free requirements (EN 60754). These European certifications are widely recognised in Australian industrial applications, though specific local compliance should be verified for particular installations.

Q: How do I determine the correct cable size for my trolley system application?

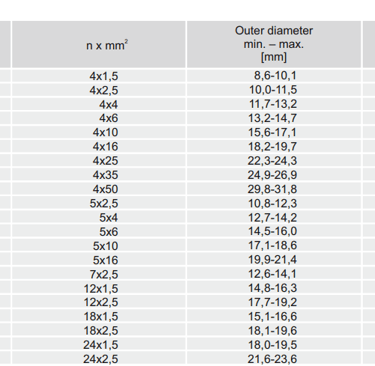

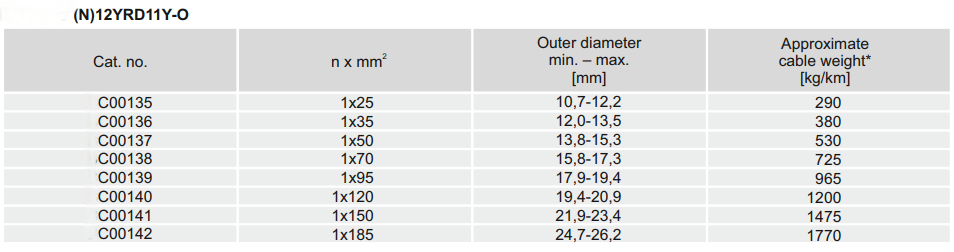

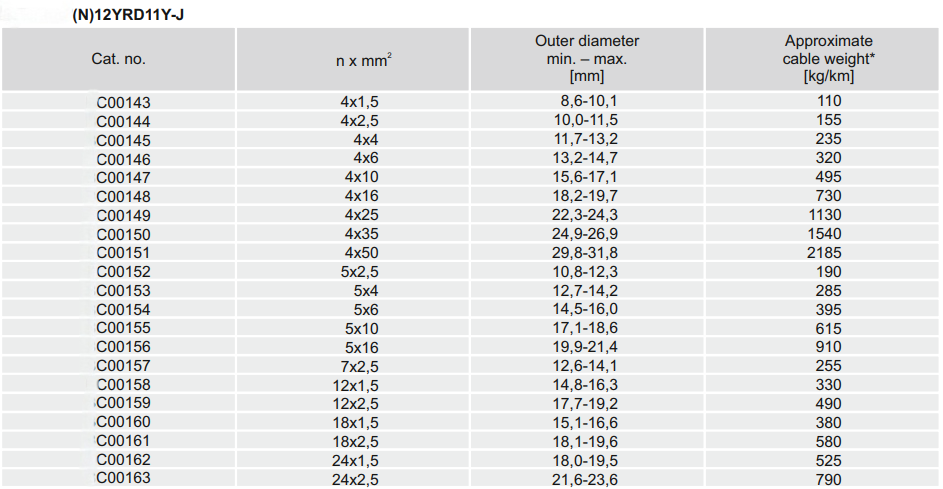

A: Cable selection depends on current requirements, environmental conditions, and mechanical stress factors. Available configurations range from 2x1mm² to 24x2.5mm² with corresponding current ratings. Professional consultation considering load calculations, duty cycle, and environmental factors ensures optimal cable selection for specific applications.
