(N)12YRDC11Y-J/O Halogen-Free Power and Control Cable for Trolley Systems and Drag Chains in Harsh Environments

Introduction

In today's rapidly evolving industrial landscape, flexible cables for moving equipment have become the backbone of modern automation systems. These specialized cables must withstand constant motion, extreme temperatures, chemical exposure, and mechanical stress while maintaining reliable power transmission and signal integrity. The demand for cables that combine exceptional durability, safety through halogen-free construction, and superior flexibility has never been greater.

Industrial applications such as automated manufacturing lines, material handling systems, and mobile machinery require cables that can perform reliably under the most challenging conditions. When equipment downtime can cost thousands of dollars per hour, choosing the right cable becomes a critical business decision that impacts both operational efficiency and worker safety.

The (N)12YRDC11Y-J/O halogen-free power and control cable represents a breakthrough in industrial cable technology, engineered specifically to meet the demanding requirements of modern industrial applications. This innovative cable solution addresses the growing need for environmentally responsible, mechanically robust, and electrically reliable cables that can perform consistently in the harshest operating environments.

Cable Application Fields

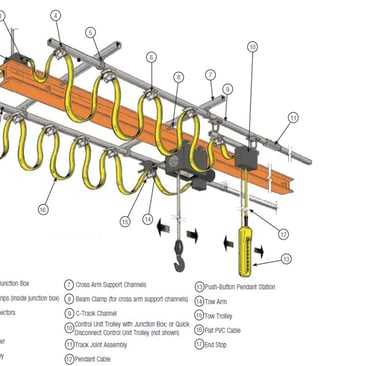

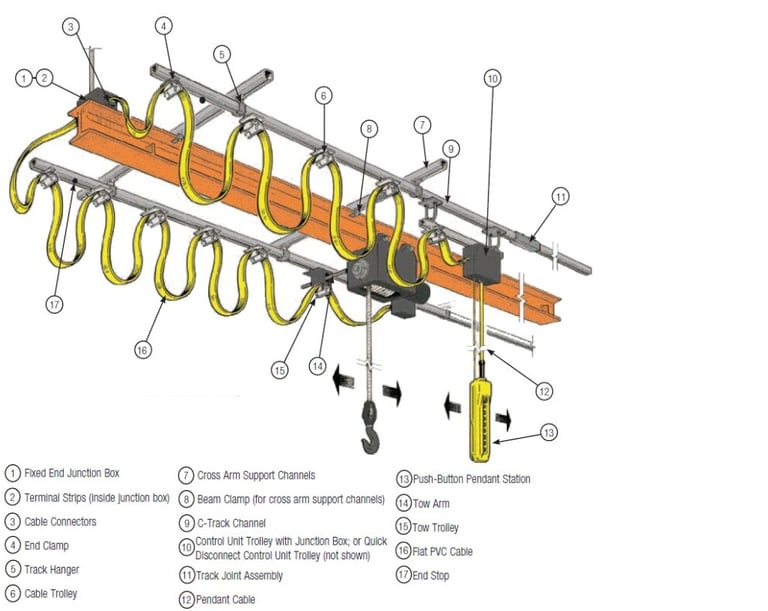

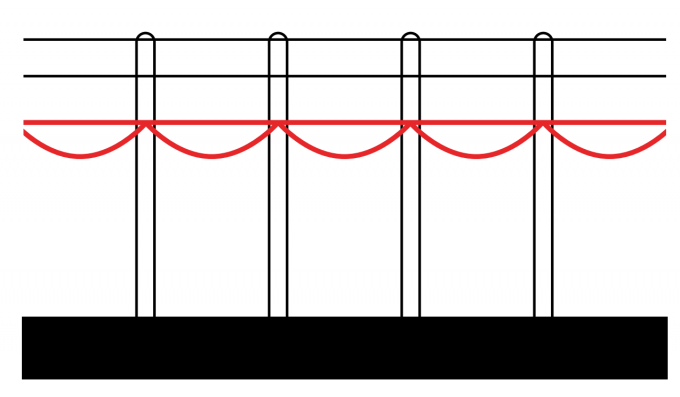

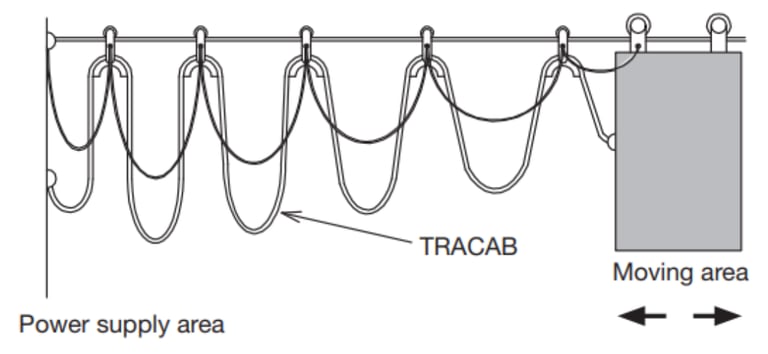

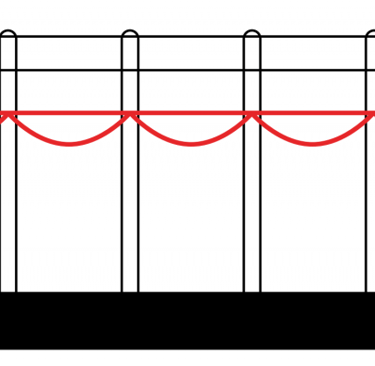

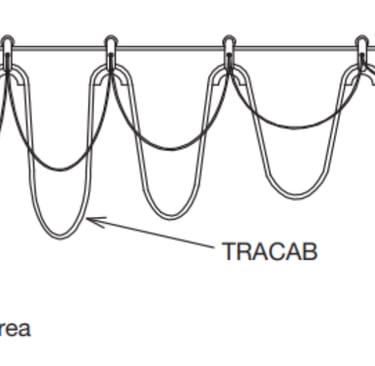

The (N)12YRDC11Y-J/O cable is meticulously designed for trolley systems, festoon systems, and drag chains where conventional cables would fail under the constant mechanical stress. These applications require cables that can endure millions of flex cycles while maintaining electrical integrity and mechanical strength.

In machine tool applications, this halogen-free cable for frequent bending in machines excels in CNC machining centers, automated assembly lines, and robotic systems where precise movements and continuous operation are essential. The cable's superior construction allows it to perform reliably in the demanding environment of modern manufacturing facilities, where space constraints and high-speed operations create unique challenges.

Conveyor systems and material handling equipment benefit significantly from this power and control cable suitable for dry, wet, and underwater environments. The cable's robust design ensures consistent performance in food processing plants, automotive manufacturing, and packaging operations where exposure to various chemicals, oils, and cleaning agents is common.

One of the most remarkable features of the (N)12YRDC11Y-J/O is its suitability for permanent immersion in water up to 50 meters depth, making it ideal for underwater applications, marine installations, and water treatment facilities. This capability opens up possibilities for applications in offshore platforms, underwater robotics, and aquaculture systems where traditional cables would quickly deteriorate.

The cable performs exceptionally well in both indoor and outdoor environments, making it a versatile solution for applications ranging from climate-controlled manufacturing facilities to harsh outdoor industrial installations. Its weather resistance ensures reliable operation in applications exposed to UV radiation, temperature extremes, and moisture variations.

Structural and Material Design

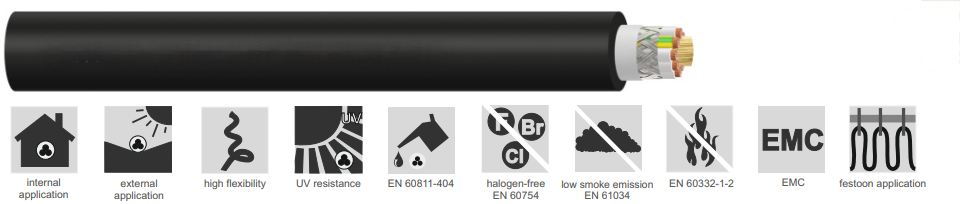

The foundation of the (N)12YRDC11Y-J/O's exceptional performance lies in its carefully engineered construction. The bare copper Class 5 conductor, manufactured according to EN 60228 standards, provides optimal electrical conductivity while maintaining the flexibility required for dynamic applications. The finely stranded copper construction ensures that the cable can withstand the mechanical stresses associated with continuous bending and flexing without compromising electrical performance.

The core insulation system utilizes a polyester-based compound that provides excellent electrical insulation properties while maintaining flexibility across a wide temperature range. The cores are systematically numbered or color-coded according to DIN 0293-308 standards, ensuring easy identification during installation and maintenance. For cables with up to 5 cores, individual color coding is employed, while cables with 6 or more cores utilize a white base with clear numbering for identification.

The halogen-free PUR (polyurethane) inner and outer sheath construction represents a significant advancement in cable safety and environmental responsibility. This highly flexible material provides superior resistance to oils, chemicals, and environmental factors while eliminating the toxic gas emissions associated with halogenated compounds during fire conditions. The black, matte finish with inkjet marking ensures clear identification and professional appearance in industrial installations.

The tinned copper wire braid shield with approximately 85% coverage provides exceptional electromagnetic compatibility (EMC) protection, ensuring reliable signal transmission in electrically noisy industrial environments. This shielding system protects sensitive control signals from interference while maintaining the cable's flexibility.

A central aramid yarn support element runs through the cable's core, providing exceptional tensile strength and preventing core separation during dynamic applications. This innovative design feature significantly extends cable life in applications involving frequent tension and release cycles.

Technical Features and Certifications

The (N)12YRDC11Y-J/O operates at a rated voltage of 0.6/1 kV for AC systems and 0.9/1.8 kV for DC systems, making it suitable for a wide range of industrial power and control applications. The maximum permissible operating voltages are 0.7/1.2 kV for AC systems and 0.9/1.8 kV for DC systems, providing additional safety margins for demanding applications.

Comprehensive safety certifications demonstrate the cable's compliance with international standards. The flame retardant properties according to EN 60332-1-2 ensure that the cable will not propagate fire, while low smoke emission characteristics per EN 61034 standards minimize visibility impairment during emergency situations. The halogen-free construction, verified according to EN 60754 standards, eliminates the production of corrosive and toxic gases during fire conditions.

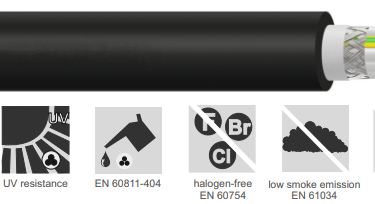

The flexible cable with UV and oil resistance for conveyor systems meets rigorous environmental standards, including UV resistance for outdoor applications and oil resistance according to DIN EN/IEC 60811-404. This comprehensive resistance profile ensures reliable operation in industrial environments where exposure to various chemicals and environmental factors is unavoidable.

RoHS, CPR (Construction Products Regulation), and LVD (Low Voltage Directive) compliance ensures that the cable meets all relevant European safety and environmental standards, making it suitable for use in applications requiring regulatory compliance.

The cable's impressive temperature range from -40°C to +90°C for flexible operation, and -50°C to +90°C for fixed installation, accommodates the extreme temperature variations encountered in industrial applications. The maximum permissible conductor temperature of 90°C and short-circuit temperature of 250°C provide additional safety margins for demanding applications.

The minimum bending radius specifications of 6 times the outer diameter for fixed installation and 7.5 times for free-moving applications demonstrate the cable's exceptional flexibility while ensuring long service life.

Mechanical and Electrical Benefits

The (N)12YRDC11Y-J/O cable delivers outstanding mechanical performance with a maximum tensile load of 15 N/mm² per conductor, ensuring reliable operation in applications involving significant mechanical stress. This high tensile strength, combined with the central aramid yarn support, enables the cable to withstand the demanding conditions encountered in drag chain applications, festoon systems, and mobile machinery.

The cable's exceptional mechanical performance in dynamic applications translates to extended service life and reduced maintenance requirements. The carefully balanced construction ensures that all components work together to provide consistent performance over millions of flex cycles, significantly reducing the total cost of ownership for industrial systems.

In aggressive industrial settings where exposure to chemicals, oils, and environmental extremes is common, the (N)12YRDC11Y-J/O demonstrates remarkable longevity. The halogen-free PUR sheath construction provides superior resistance to industrial chemicals while maintaining flexibility and mechanical strength over extended periods.

The electrical benefits include low resistance, stable impedance characteristics, and excellent signal integrity maintenance during dynamic operation. The tinned copper wire braid shielding ensures that control signals remain clean and reliable, even in electrically noisy industrial environments.

Customization Options

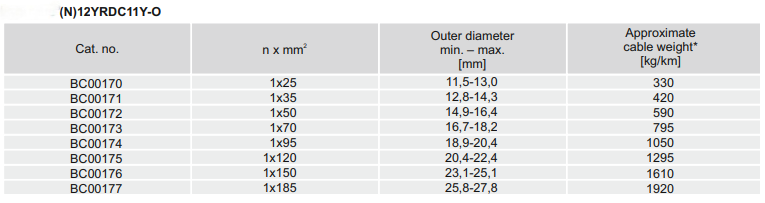

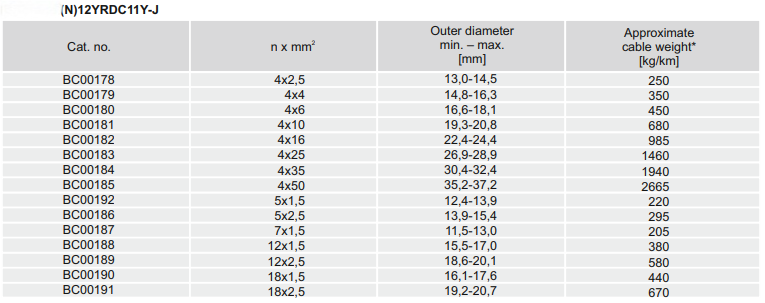

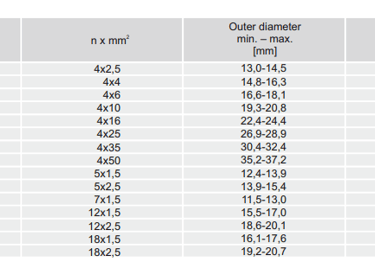

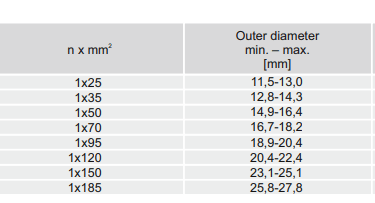

Understanding that industrial applications have diverse requirements, the (N)12YRDC11Y-J/O is available in a comprehensive range of core configurations to meet specific application needs. Standard configurations include options ranging from single-core high-current applications (1x25mm²) to multi-core control applications (4x50mm², 12x2.5mm²), providing flexibility for both power distribution and control signal applications.

For applications requiring permanent water immersion capabilities up to 50 meters depth, specialized custom versions are available upon request. These variants incorporate additional sealing and construction features to ensure reliable operation in underwater environments while maintaining all the standard cable's mechanical and electrical properties.

The availability of both standard and custom configurations ensures that system designers and integrators can specify the exact cable configuration required for their application, eliminating the need for compromises that could impact system performance or reliability.

Why Choose (N)12YRDC11Y-J/O?

The (N)12YRDC11Y-J/O represents the optimal combination of safety, flexibility, and mechanical endurance required for modern industrial applications. Its halogen-free construction addresses growing environmental and safety concerns while delivering the performance characteristics demanded by mission-critical applications where downtime is not an option.

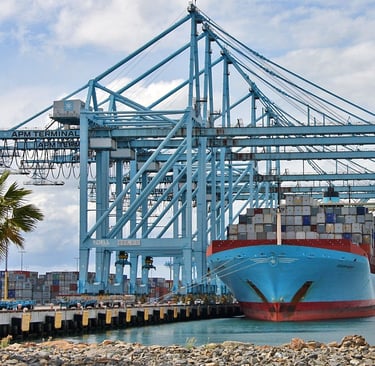

For OEMs, crane manufacturers, and system integrators, the (N)12YRDC11Y-J/O provides a reliable solution that can be confidently specified for the most demanding applications. The comprehensive certification portfolio and proven performance record provide the assurance needed for applications where cable failure could result in significant downtime, safety risks, or financial losses.

The cable's versatility across multiple application types reduces inventory requirements and simplifies procurement processes. Whether the application involves trolley systems, drag chains, festoon applications, or underwater installations, the (N)12YRDC11Y-J/O provides consistent, reliable performance.

The long-term cost benefits associated with extended service life, reduced maintenance requirements, and improved system reliability make the (N)12YRDC11Y-J/O an economically sound choice for industrial applications. The initial investment in quality cable technology is quickly recovered through reduced downtime and maintenance costs.

Conclusion

The (N)12YRDC11Y-J/O halogen-free power and control cable represents a significant advancement in industrial cable technology, addressing the evolving needs of modern industrial automation systems. Its combination of mechanical robustness, electrical reliability, and environmental responsibility makes it an ideal choice for applications where conventional cables would fail.

As industrial automation continues to advance and environmental regulations become more stringent, the importance of choosing cables that can meet both performance and regulatory requirements becomes increasingly critical. The (N)12YRDC11Y-J/O addresses these challenges while providing the reliability and performance required for mission-critical applications.

For applications involving trolley systems, drag chains, festoon systems, and other dynamic installations, the (N)12YRDC11Y-J/O provides the perfect balance of flexibility, durability, and safety. Its comprehensive feature set and proven performance record make it the preferred choice for demanding industrial applications.

We encourage potential users to contact our technical support team for detailed specifications, application guidance, and customization options. Our experienced engineers can provide valuable insights into optimizing cable selection for specific applications, ensuring that the full benefits of the (N)12YRDC11Y-J/O technology are realized in your industrial systems.
