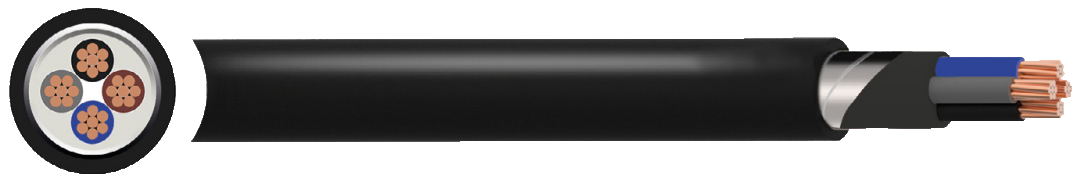

N2XBH Cable
The N2XBH cable can be used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, populated business centers where there is a risk of fire.
APPLICATION The N2XBH cable can be used in refineries, hotels, schools,tunnels, high constructions, hospitals, power plants, data processing centers, populated business centers where there is a risk of fire. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 3.5kV Temperature Rating Maximum Operating: +90ºC Maximum Short-Circuit: +250°C Minimum Bending Radius 12 x overall diameter |
CONSTRUCTION
Conductor
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Armour
Double galvanized steel tape
Outer Sheath
HFFR (Halogen free flame retardant)
Core Identification
2 core: Blue Brown
3 core: ● Brown ● Black ● Grey
4 core: ●Blue ● Brown ● Black ● Grey
5 core:Blue ● Brown ● Black ● Grey ● Black
Sheath Colour
● Black ● Green
