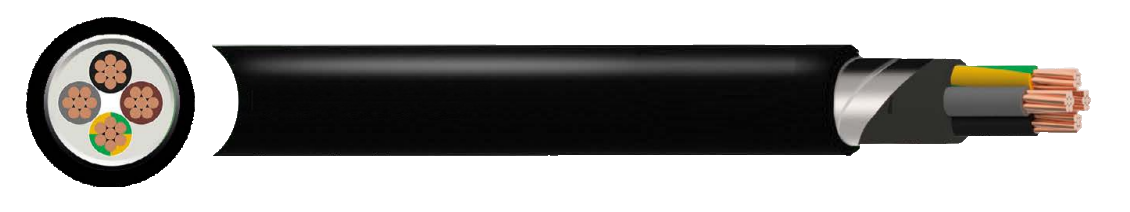

N2XBY Copper Conductor XLPE/PVC Armoured Power Cable 0.6/1kV
Durable armoured copper cable with XLPE insulation and PVC sheath for indoor, underground, and industrial power installations in harsh environments
$15.00
APPLICATION
For installation indoors, in cable channels and in duct in ground in switchgear, power stations and industrial application, in harsh environments where a high level mechanical protection is required.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Test Voltage
3.5kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
12 x overall diameter
CONSTRUCTION
Conductor
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
Polyvinyl chloride (PVC)
Armour
Double galvanized steel tape
Outer Sheath
Polyvinyl chloride (PVC)
Core Identification
2 core: Brown Blue
3 core: ● Brown ● Blue e Green/Yellow
4 core: ● Brown ● Black e Grey e Green/Yellow
5 core: ● Brown ● Blue ● Black e Grey e Green/Yellow
7 core and above: ● Black e Green/Yellow
Outer Sheath Colour
Black
STANDARDS
IEC 60502-1, VDE 0276-603, IS 1516.1, IEC/EN 60228
