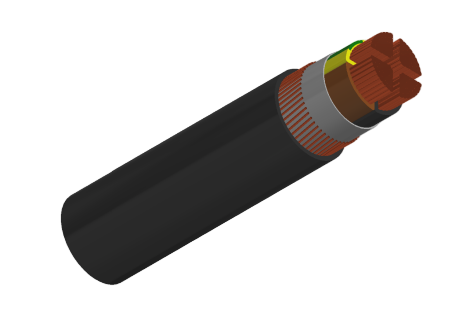

N2XCY
Cable
Application and Description
In indoor installation, in cable ducts outdoor and underground for power station, industrial plants and switching as well as local supply systems. Used for indoor installations for wiring of apparatus panels and switch board. Not to be used outdoors or in wet surroundings.
Standard and Approval
IEC 60502 -1, VDE 0276-603

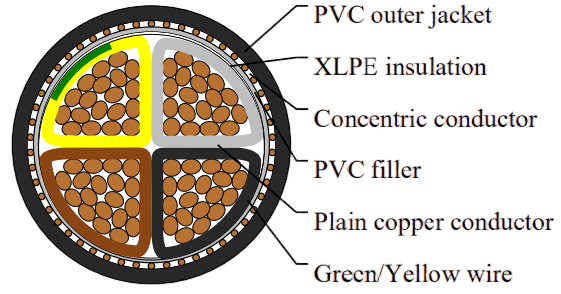

Cable Construction
Solid or stranded, plain copper conductor |
to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2 and IEC 60228 cl. 1 or cl. 2 |
XLPE insulation type DIX3 acc. to VDE 0276-603/5G |
Color coded to DIN VDE 0293(HD 308) |
PVC filler |
Concentric conductor: Copper wires and copper tapes |
PVC outer jacket DMV5 to HD 603.1 |
Technical Characteristics
Working voltage | 600/1000 volts |
Test voltage | 4000 volts |
Minimum bending radius | 15 x Ø |
Flexing Temperature | -5º C to +70º C |
Fixed installation temperature | - 30º C to +70º C |
Short circuit temperature | +250º C |
Flame-retardant | IEC 60332.1 |
Insulation resistance | >20 MΩ x km |
