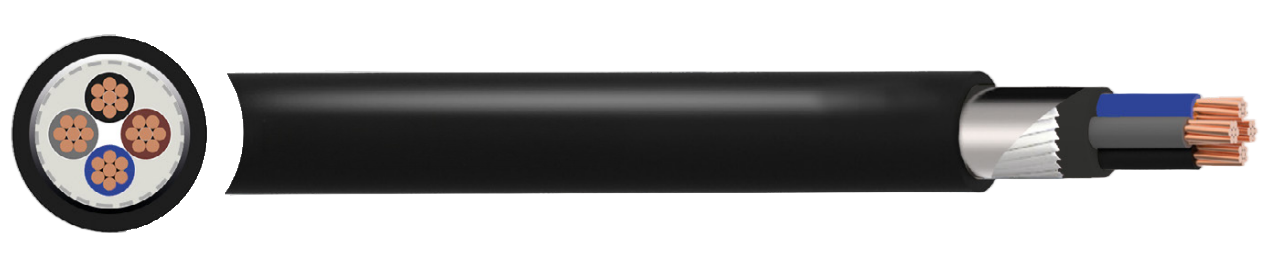

N2XFGbY Power Cable XLPE/PVC/SWA 0.6/1kV
Robust armoured power cable for underground, indoor, duct, and outdoor installations with high mechanical stress resistance
$15.00
APPLICATION
The N2XFGbY cable is suitable for installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required where high-pulling stresses may occur during installation or operation offering.
STANDARDS
IEC 60502-1, VDE 0276-603
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Test Voltage
3.5kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
12 x overall diameter
CONSTRUCTION
Conductor
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC (Polyvinyl chloride)
Armour 1
SWA (Galvanised flat steel wire)
Armour 2
Galvanised steel tape
Outer Sheath
PVC (Polyvinyl chloride)
Core Identification
2 core: Blue Brown
3 core: ● Brown ● Black ● Grey
4 core: Blue ● Brown ● Black ● Grey
5 core: ● Blue ● Brown ● Black ● Grey ● Black
Outer Sheath Colour
● Black
