N2XH Enhanced Flex Power Cable - KEMA Approved

APPLICATION

These power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in  industrial applications with an additional mechanical protection.    These cables can be fixed on cable trays, within conduits or fixed to walls and are suitable for duct installation.

CHARACTERISTICS

Voltage Rating (Uo/U)

Nominal voltage (AC) U0/U: 0.6/1kV

Max operating voltage (DC) U0/U: 0.9/1.8kV

Test Voltage

3.5kV

Temperature Rating

Fixed: -40°C to +90°C

Minimum Bending Radius

Fixed: 6x overall diameter

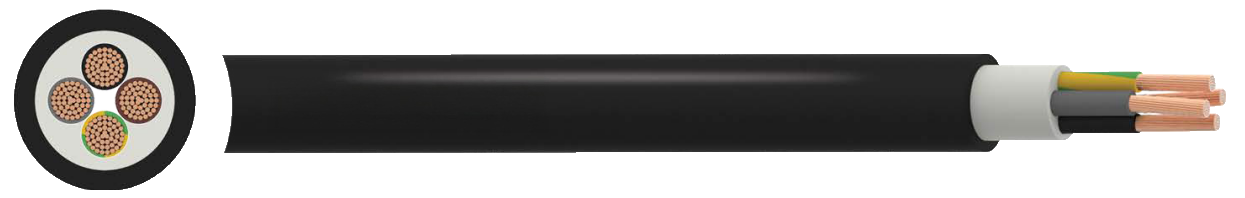

CONSTRUCTION

Conductor   Class 5 Fine

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

LSZH-FRNC (Low Corrosive)

Sheath

LSZH-FRNC (Low Smoke Zero Halogen - Flame Retardant Non- Corrosive)

Core Identification

1 core:  Black

2 core:  Blue     Brown

3 core including earth:     Blue      Brown     Green/Yellow

4 core including earth:     Brown      Black     Grey      Green/Yellow

5 core including earth core:     Brown     Black     Grey  Green/Yellow     Blue

Sheath Colour

● Black
