N2XH Multi Core Cables Eca Class
Multi-core, single or multi-wire copper conductor power cables that are halogen-free and fire-safe. Thanks to their low smoke density, non-flame propagating properties and no corrosive gas emissions for protecting life and property in case of fire.

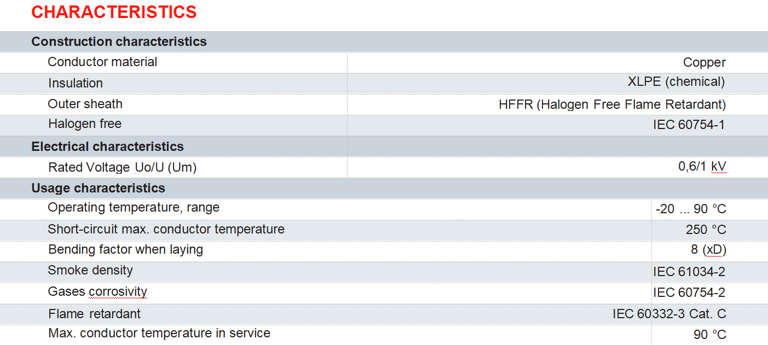

KEY CHARACTERISTICS
Insulation | XLPE (chemical) | |
Outer sheath | HFFR (Halogen Free Flame Retardant) | |
Electrical characteristics |
| |
Rated Voltage Uo/U (Um) | 0,6/1 kV | |
Usage characteristics | ||
Operating temperature, range | -20 ... 90 °C | |
Max. conductor temperature in service | 90 °C | |
APPLICATION
N2XH cable is an installation/power cable widely used in applications requiring high levels of fire safety due to the significant number of human lives at stake, such as:
• Industrial and Commercial Electrical Installations
• Electrical panels and control panels
• Indoor applications with fire risk (hotels, schools, high-rise buildings, hospitals, data centers, airports, offices etc.)
• Installations in public places
• Tunnels and underground infrastructures
• Wiring for indoor power and lighting circuits in dry environments

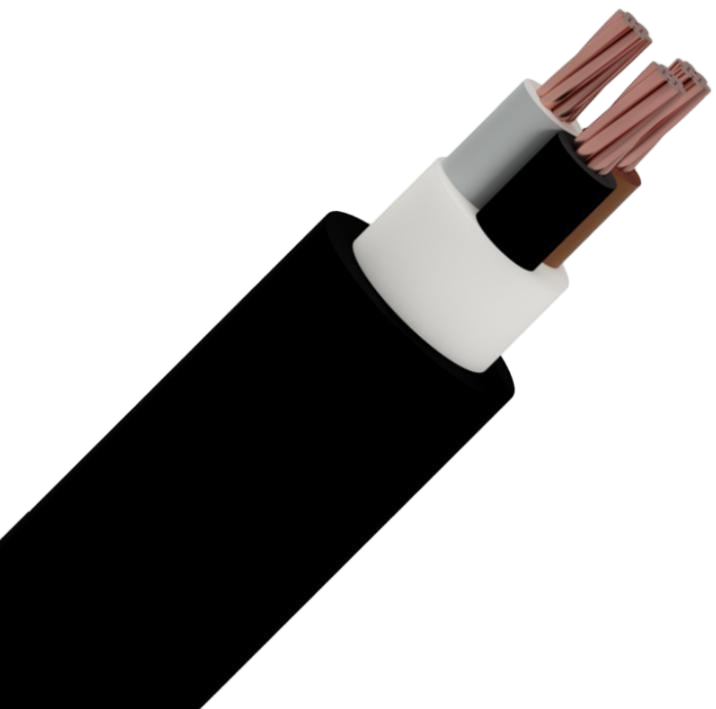

CONSTRUCTION
1. Conductor:Copper
2. Insulation:XLPE
3. Filler:LSZH
4. Outer sheath:LSZH
