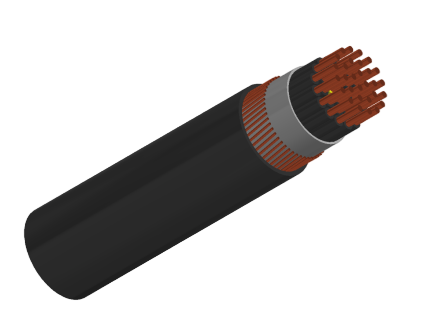

N2XH/ N2XCH

Cable

Application and Description

N2XH power cables with enhanced resistance to fire are used mostly in areas where harm to human life or material must be prevented in case of fire such as industrial and public buildings, hotels, subway systems, hospitals etc. These cables are suitable for dry and wet environments as well as for outer application but are not suitable for direct burial into earth or water.

Standard and Approval

VDE 0276 part 604, VDE 0482-266-2, DIN EN 60332-3 / EN50266-2

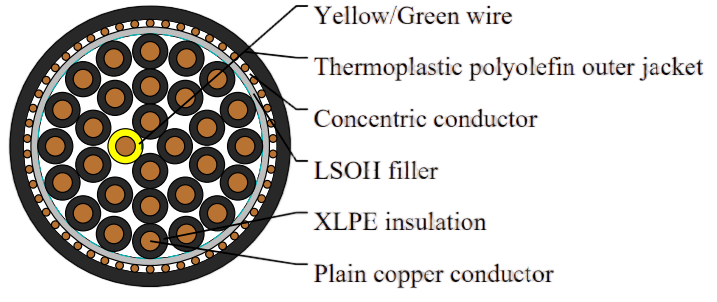

Cable Construction

Solid or stranded plain copper conductor

to DIN VDE 0295 cl. 1, cl. 2, BS 6360 cl. 1, cl. 2 and IEC 60228 cl 1, cl. 2

XLPE insulation type 2XI1, to HD 604 S1

Color coded to DIN VDE 0293-308

Green-yellow ground conductor (3 conductors and above)

Special LSOH filler

For N2XCH version with concentric conductor:
plain round copper wires and one or two transverse counter helix of copper tapes

Thermoplastic polyolefin compound outer jacket type HM4, to HD 604 S1

Technical Characteristics

Working voltage	600/1000 volts
Test voltage	4000 volts
Minimum bending radius	12 x Ø
Flexing Temperature	-5º C to +50º C
Fixed installation temperature	- 40º C to +90º C
Short circuit temperature	+250º C
Flame-retardant	VDE 0482 part 266-2, DIN EN 50266-2 / IEC 60332-3
Low corrosiveness of combustion gases	to DIN VDE 0482 part 267/ EN 50267-2-2/IEC 60754-2
Halogen-free	to DIN VDE 0482 part 267 /EN 50267-2-1/IEC 60754-1
Smoke density	to DIN VDE 0482 part 268/HD 606/BS 7622 PT1,PT2/EN 50268-1,-2/IEC 61034-1,-2

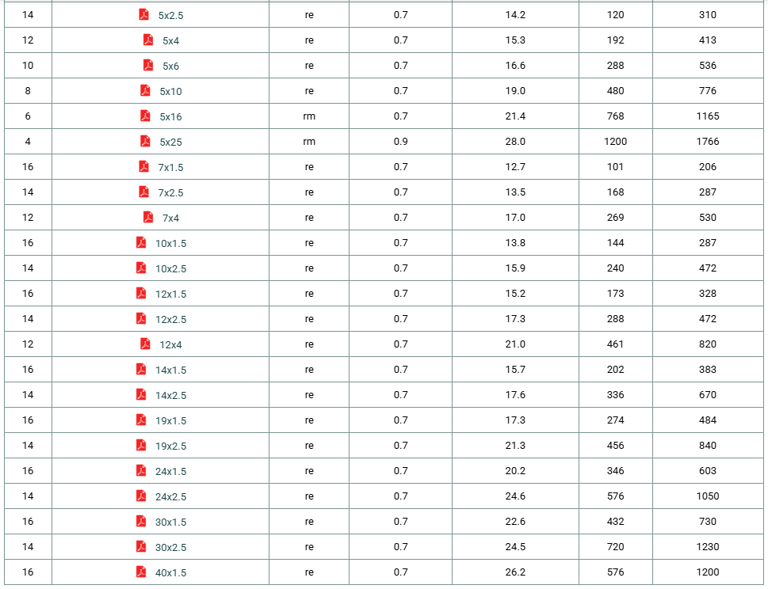

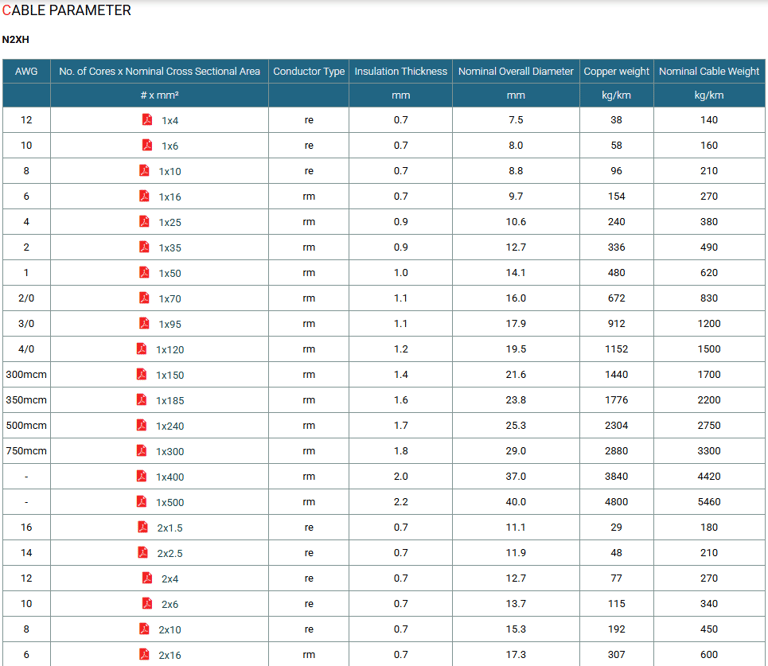

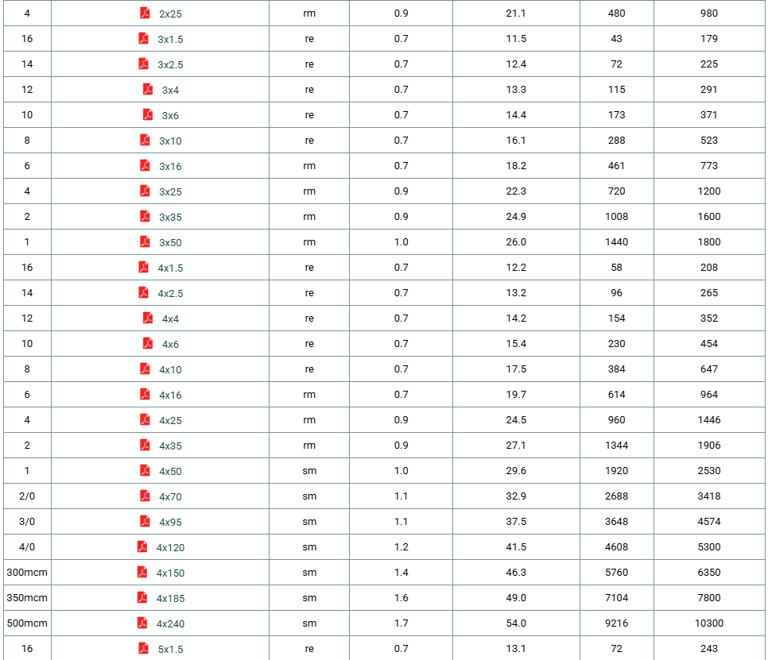

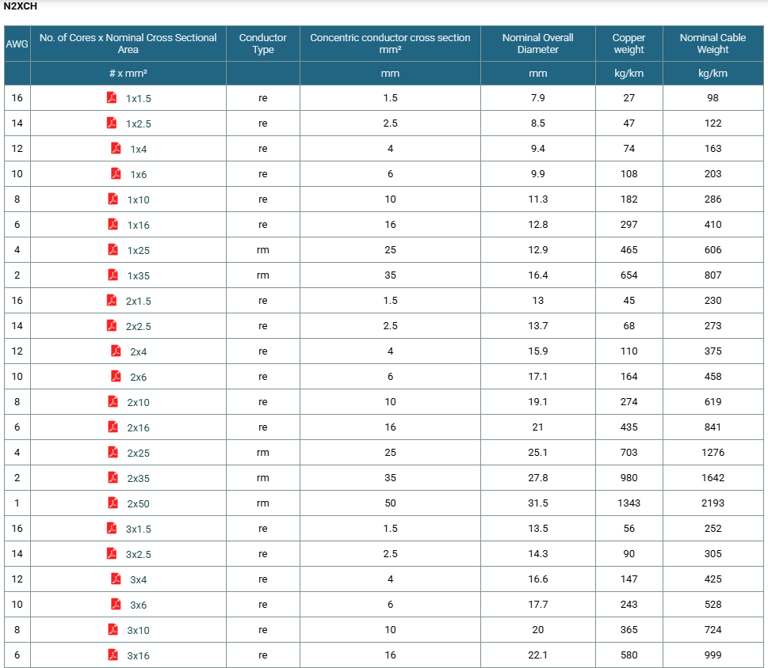

Insulation resistance	>20 MΩ x km
