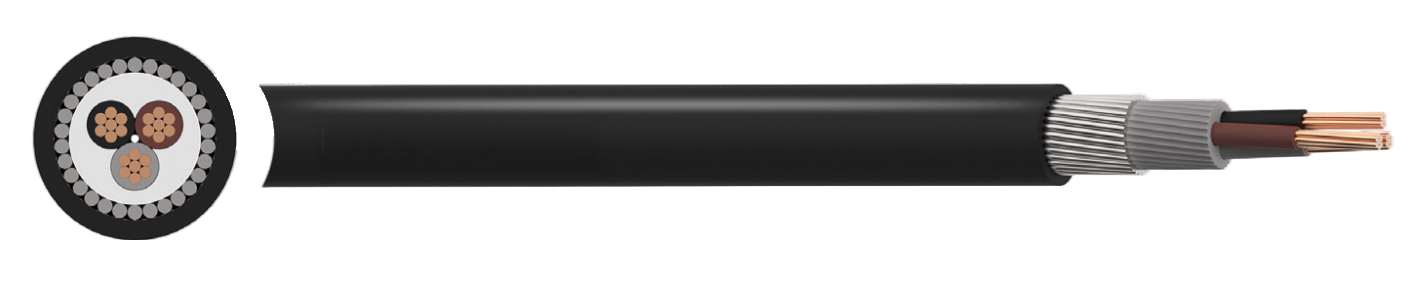

N2XRH Cu/XLPE/LSZH/SWA/LSZH 0.6/1kV Cable
European LSZH armoured copper power and control cable for safe underground, indoor, and outdoor installations
$12.00
STANDARDS
BS 6724, IEC/EN 60228, EN 50267-2-1, IEC/EN 60502-1,
Flame Retardant according to IEC/EN 60332-1-2, IEC/EN 60332-3-24 Cat C
Low Smoke Zero Halogen according to IEC/EN 60754-1/2, IEC/EN 61034-1/2
APPLICATION
European reference for a low voltage multi-core LSZH power cable with steel wire armour (SWA). Same construction as the British Standard BS6724 cable. Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxicfumes create a potential threat to life and equipment.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Fixed: -20°C to +90°C
Minimum Bending Radius
1.5mm² to 16mm² - Fixed: 6 x overall diameter 25mm² and above - Fixed: 8 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
SWA (Steel Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
2 core: Brown Blue
3 core: ● Brown ● Black ● Grey
4 core: ● Brown ● Blue ● Black ● Grey
5 core: Green/Yellow Brown Blue Black Grey
Alternative Core Identification
White cores with Black numbers
Sheath Colour
● Black
