N2XRH Cu/XLPE/LSZH/SWA/LSZH 0.6/1kV Cable
European reference for a low voltage multi-core LSZH power cable with steel wire armour (SWA).
$8.00
APPLICATION European reference for a low voltage multi-core LSZH power cable with steel wire armour (SWA). Same construction as the British Standard BS6724 cable. Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxicfumes create a potential threat to life and equipment. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Fixed: -20°C to +90°C Minimum Bending Radius 1.5mm² to 16mm2 - Fixed: 6 x overall diameter 25mm2 and above - Fixed: 8 x overall diameter |

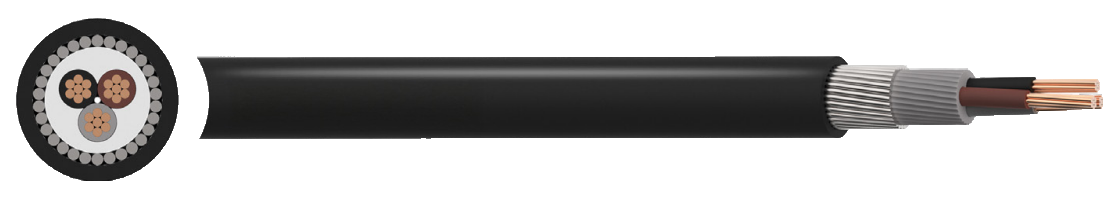

CONSTRUCTION
Conductor
Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
SWA (Steel Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
2 core: Brown Blue
3 core: ● Brown ● Black ● Grey
4 core: ● Brown ● Blue ● Black ● Grey
5 core: Green/Yellow Brown Blue Black Grey
Alternative Core Identification
White cores with Black numbers
Sheath Colour
● Black
