N2XS2Y 12/20 (24)kV Cable
STANDARDS IEC 60502-2, IEC 60228, UV Resistant: ISO 4892-3 Abrasion and Tear Resistant: EN 60229-4.1 Impact rated to: AG2 EN 60364-5.51
APPLICATION
Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant.
CHARACTERISTICS
Voltage Rating Uo/U (Um) 12/20 (24)kV
Test Voltage
42kV AC 50Hz (5 mins)
Temperature Rating
-20°C to +60°C
Permissible Conductor Operating Temperature: +90°C
Permissible Short Circuit Temperature up to 5 sec: 250°C
Minimum Bending Radius
15 x overall diameter

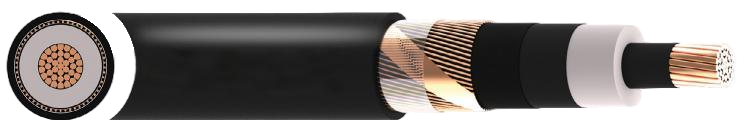

CONSTRUCTION
Conductor
Class 2 Stranded Copper
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene) Insulation Screen
Semi-conductive material (bonded)
Screen
Copper wires and copper tape
Outer Sheath
MDPE (Medium Density Polyethylene) Sheath Colour
● Red ● Black
