N2XS(F)2Y 12/20 (24)kV Cable
STANDARDS IEC 60502-2, IEC 60228,
APPLICATION Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant. |
CHARACTERISTICS Voltage Rating Uo/U (Um) 12/20 (24)kV Test Voltage: 42kV AC 50Hz (5 mins) Temperature Rating -20°C to +60°C Permissible Conductor Operating Temperature: +90°C Permissible Short Circuit Temperature up to 5 sec: 250°C Minimum Bending Radius 15 x overall diameter |

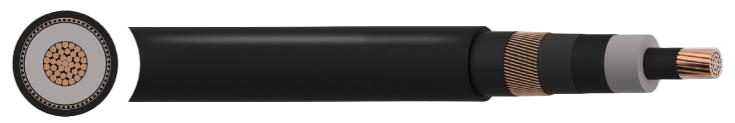

CONSTRUCTION
Conductor
Class 2 Stranded Copper
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene) Insulation Screen
Semi-conductive material (bonded)
Longitudinal Waterblocking
Semi-conductive swellable tape
Screen
Copper wires and copper tape
Longitudinal Waterblocking
Swellable Tapes
Outer Sheath
MDPE (Medium Density Polyethylene) Sheath Colour
● Red ● Black
