N2XS(F)2Y 6/10 (12)kV Cable
STANDARDS；IEC 60502-2，IEC60228
APPLICATION
Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant.
CHARACTERISTICS
Voltage Rating Uo/U (Um) 6/10 (12)kV
Test Voltage
21kV AC 50Hz (5 mins)
Temperature Rating
-20°C to +60°C
Permissible Conductor Operating Temperature: +90°C
Permissible Short Circuit Temperature up to 5 sec: 250°C
Minimum Bending Radius
15 x overall diameter

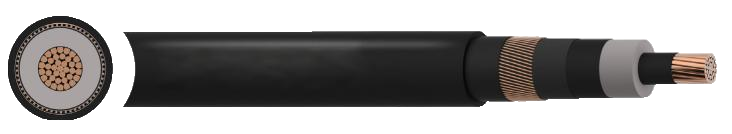

CONSTRUCTION
Conductor
Class 2 Stranded
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked
Insulation Screen
Semi-conductive material (bonded)
Longitudinal Waterblocking
Semi-conductive swellable tape
Screen
Copper wires and copper tape
Longitudinal Waterblocking
Swellable Tapes
Outer Sheath
MDPE (Medium Density
Sheath Colour ● Red ● Black
