N2XS(FL)2Y 12/20 (24)kV Cable
STANDARDS IEC 60502-2, IEC 60228,
APPLICATION
Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct in ground and in buried cable ducts. UV Resistant.
CHARACTERISTICS
Voltage Rating Uo/U(Um)
12/20 (24)kV
Test Voltage:
42kV AC 50Hz (5 mins)
Temperature Rating
-20°C to +60°C
Permissible Conductor Operating Temperature: +90°C
Permissible Short Circuit Temperature up to 5 sec: 250°C
Minimum Bending Radius
15 x overall diameter

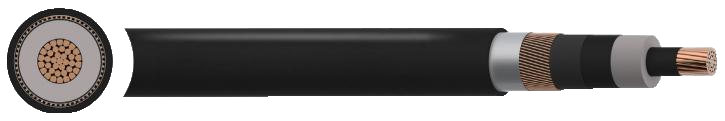

CONSTRUCTION
Conductor
Class 2 Stranded Copper
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene) Insulation Screen
Semi-conductive material (bonded)
Longitudinal Waterblocking
Semi-conductive swellable tape
Screen
Copper wires and copper tape
Longitudinal Waterblocking
Swellable Tapes
Radial Waterblocking
Al/PET (Aluminium /Polyester) Tape bonded to sheath
Outer Sheath
MDPE (Medium Density Polyethylene) Sheath Colour
● Red ● Black
