(N)3GHSSHCH 8.7/15kV and 12/20kV Cable
Flexible cable for energy supply to MV equipment in tunnelling and underground mining applications.
$80.00
APPLICATION Flexible cable for energy supply to MV equipment in tunnelling and underground mining applications. Low smoke zero halogen (LSZH) sheathed version. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 8.7/15kV | 12/20kV Test Voltage 8.7/15kV: 24kV | 12/20kV: 29kV Ambient Temperature Fixed: -40°C to +80°C Flexed: +5°C to +80°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter |

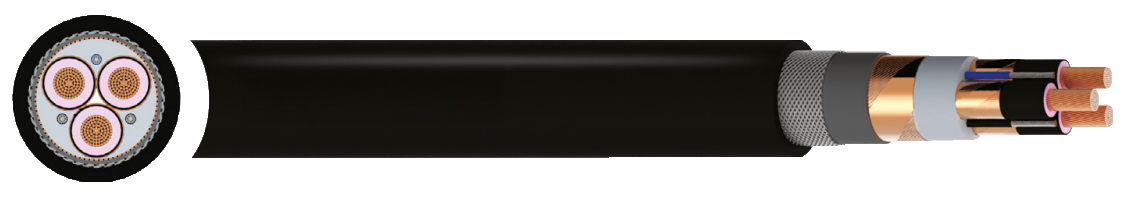

CONSTRUCTION
Phase Conductor
Class 5 flexible stranded copper
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper wire screen
Control Conductor
Class 5 flexible stranded tinned copper
Central Filler
Rubber compound on a textile polyester support
First Inner Sheath
LSZH (Low Smoke Zero Halogen)
Monitoring Conductor
Copper wire screen, over the first inner sheath
Second Inner Sheath
LSZH (Low Smoke Zero Halogen)
Armour
Steel wire braid over the second inner sheath
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Black
STANDARDS

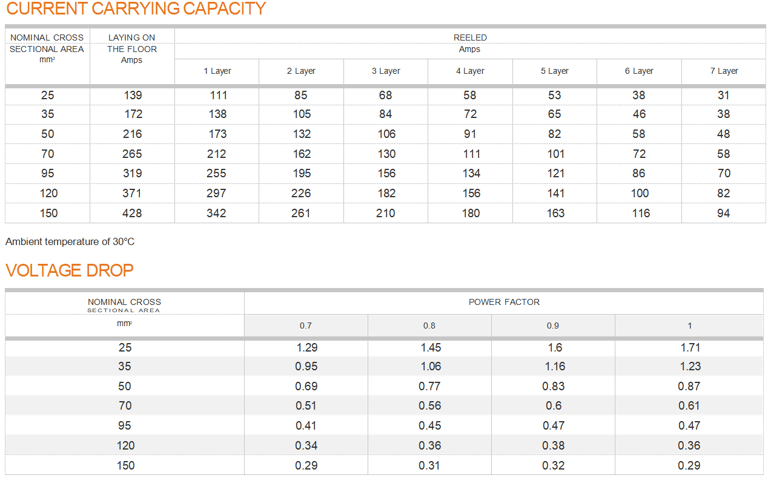

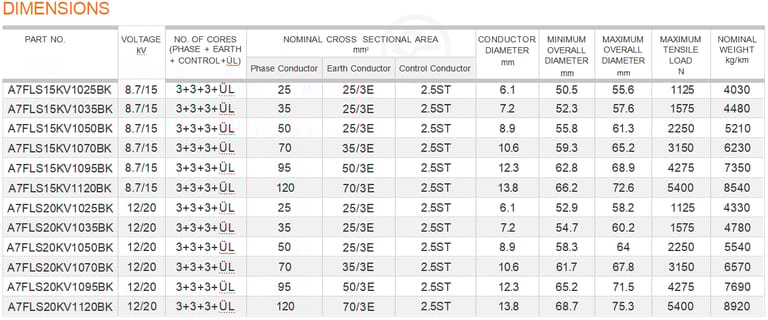

VDE 0250 Part 605, VDE 0207,
