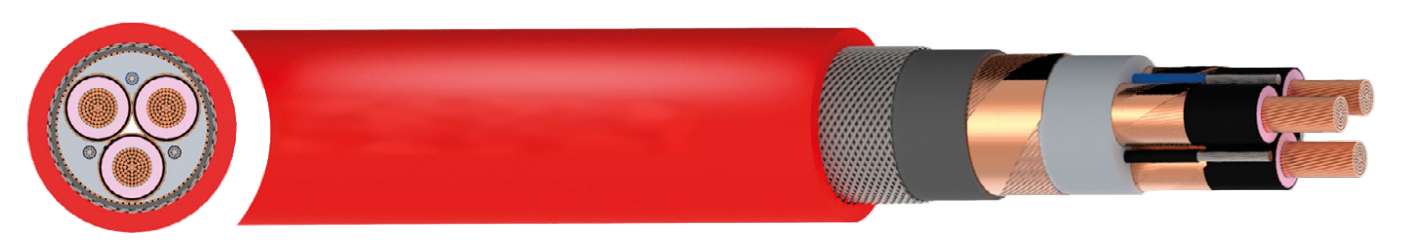

(N)3GHSSYCY Flexible Mining Cable (3.6/6kV & 6/10kV)
Medium voltage power solution for tunnelling and underground mining equipment
$80.00
APPLICATION Flexible cable for energy supply to MV equipment in tunnelling and underground mining applications. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 3.6/6kV | 6/10kV Test Voltage 3.6/6kV: 11kV | 6/10kV: 17kV Ambient Temperature Fixed: -40°C to +80°C Flexed: +5°C to +80°C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 flexible stranded copper
Insulation
Rubber compound
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper screen
Control Conductor
Class 5 flexible stranded tinned copper
Central Filler
Rubber compound on a textile polyester support
First Inner Sheath
PVC (Polyvinyl Chloride)
Monitoring Conductor
Copper wire
Second Inner Sheath
PVC (Polyvinyl Chloride)
Armour
Steel wire braid over the second inner sheath
Outer Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
● Red
STANDARDS
VDE 0250 Part 605, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
