(N)3GRD5G-J/O Heavy-Duty Festoon Cable for Trolley Systems – Power & Control with High Flexibility

Introduction

In the demanding world of industrial automation and material handling systems, the reliability of electrical connections can make or break operational efficiency. Festoon cables serve as the vital lifelines that provide continuous power and control signals to moving equipment across manufacturing facilities, ports, and industrial complexes. These specialized cables must endure constant mechanical stress, environmental challenges, and maintain electrical integrity throughout their operational lifecycle.

The (N)3GRD5G-J/O cable represents a pinnacle of engineering excellence in heavy-duty festoon cable design, specifically engineered to meet the rigorous demands of modern industrial applications. This robust power and control cable combines advanced materials science with proven design principles to deliver exceptional performance in the most challenging environments. Whether powering overhead cranes, feeding control signals to automated guided vehicles, or maintaining electrical connections in complex conveyor systems, the (N)3GRD5G-J/O cable stands as a testament to German engineering precision and reliability.

Manufactured to comply with the highest European standards, including RoHS 2015/863/EU compliance, this heavy-duty festoon cable incorporates multiple layers of protection and advanced conductor technologies to ensure consistent performance across a wide range of industrial applications. Its specialized construction addresses the unique challenges of unidirectional bending applications, making it the preferred choice for engineers and procurement managers seeking long-term reliability in their electrical infrastructure.

Key Application Areas

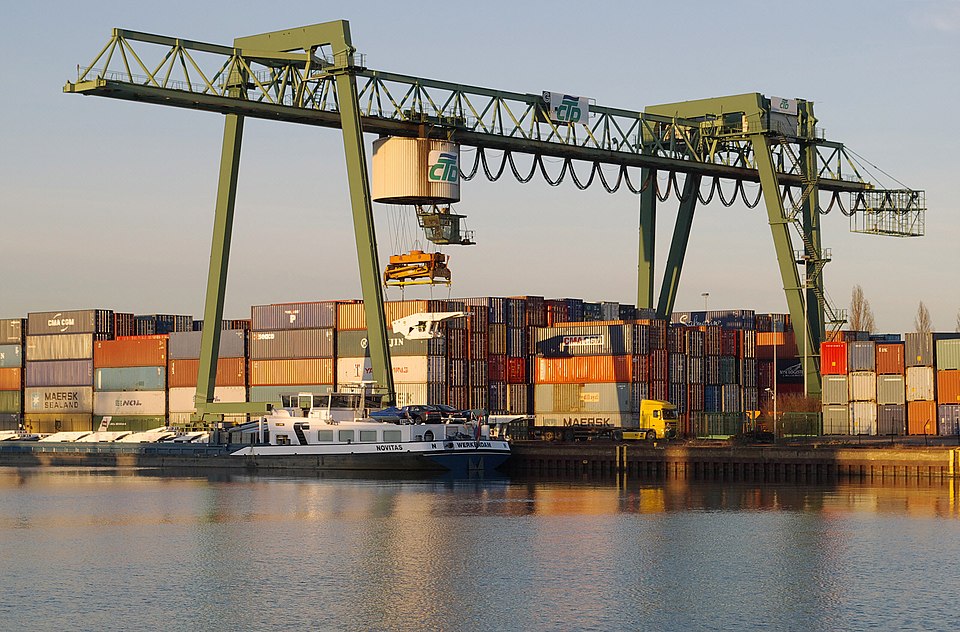

The (N)3GRD5G-J/O cable excels in applications where conventional cables fail, particularly in systems requiring frequent mechanical movement and exposure to harsh environmental conditions. Trolley systems represent one of the primary application areas, where this power and control cable for trolley systems provides reliable electrical connections to moving platforms, hoists, and automated material handling equipment. The cable's robust construction ensures uninterrupted power delivery even under continuous mechanical stress and varying load conditions.

Drag chain applications benefit significantly from the cable's specialized design, as it maintains electrical integrity while accommodating the repetitive bending cycles characteristic of these systems. Manufacturing facilities utilizing automated production lines rely on this flexible festoon cable for conveyor applications to maintain consistent power and control signal transmission across moving assembly systems. The cable's ability to withstand millions of bending cycles makes it ideal for high-frequency operations where downtime costs can be substantial.

Industrial conveyor facilities present another critical application area where the (N)3GRD5G-J/O cable demonstrates its superiority. From airport baggage handling systems to automotive assembly lines, this cable provides the electrical backbone for complex material handling operations. Its suitability for both indoor and outdoor installations expands its applicability to port facilities, mining operations, and construction sites where environmental protection is paramount.

Moving parts of industrial machines, including robotic arms, automated positioning systems, and flexible manufacturing cells, depend on this cable's ability to maintain electrical connections while accommodating complex motion patterns. The cable's design specifically addresses the challenges of unidirectional bending, making it particularly valuable in applications where the cable follows a predictable movement pattern, optimizing both performance and service life.

Mechanical and Electrical Performance

The (N)3GRD5G-J/O cable's mechanical performance characteristics set it apart from conventional industrial cables, with design features specifically optimized for festoon applications requiring frequent bending in one direction. This specialized approach to cable engineering ensures optimal performance in applications where traditional cables would experience premature failure due to mechanical fatigue.

Operating at a voltage rating of 0.6/1 kV, this reeling speed festoon cable provides robust electrical performance suitable for both power transmission and control signal applications. The maximum permissible operating voltage of 0.7/1.2 kV in AC systems and 0.9/1.8 kV in DC systems provides engineers with flexibility in system design while maintaining safety margins required for industrial applications. The AC test voltage of 2.5 kV ensures reliable insulation performance under normal and abnormal operating conditions.

One of the cable's most impressive performance characteristics is its maximum reeling speed capability of up to 240 meters per minute. This high-speed performance makes it suitable for rapid material handling systems, high-speed conveyor applications, and automated systems requiring quick positioning movements. The cable maintains its electrical and mechanical integrity even under these demanding dynamic conditions, ensuring consistent performance across the full range of operating speeds.

The current-carrying capacity, calculated according to DIN VDE 0298-4 standards, ensures that the power control cable 0.6/1kV meets the demanding electrical requirements of modern industrial systems. The cable's thermal performance allows for continuous operation at conductor temperatures up to 90°C, with short-circuit protection ensuring safe operation even under fault conditions with maximum conductor temperatures reaching 250°C.

Mechanical stress tolerance represents another critical performance aspect, with maximum tensile load ratings of 15 N/mm² per conductor providing substantial margin for dynamic applications. The bending radius specifications of 4 times the outer diameter for fixed installations and 5 times the outer diameter for festoon applications demonstrate the cable's flexibility while ensuring long service life.

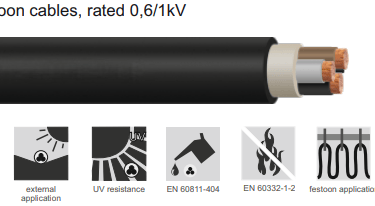

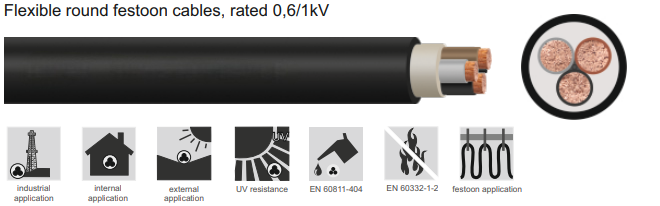

Design & Construction

The sophisticated construction of the (N)3GRD5G-J/O cable reflects decades of engineering experience in demanding industrial applications, incorporating premium materials and advanced manufacturing techniques to deliver exceptional performance and reliability. At the heart of the cable lies the conductor system, featuring fine-stranded bare copper wires manufactured to Class 5 specifications according to DIN EN/IEC 60228 standards. This conductor configuration provides optimal flexibility while maintaining excellent electrical conductivity and mechanical strength.

The insulation system utilizes high-performance HEPR (Hard Ethylene Propylene Rubber) compound formulated according to IEC 60502-1 specifications, providing superior electrical insulation properties and mechanical durability. The color-coding system follows DIN VDE 0293-308 standards, with individual cores colored up to 5 wires and numbered identification for configurations with 6 or more wires. This HEPR insulated flexible power cable design ensures easy identification during installation and maintenance while providing long-term insulation integrity.

Core arrangement follows a carefully engineered pattern with conductors stranded in layers around a central element, optimizing the cable's flexibility and mechanical performance. This arrangement minimizes stress concentration during bending cycles while maintaining the cable's round profile for consistent performance in cable management systems.

The inner sheath construction employs synthetic rubber compound, specifically GM1b/EPDM material conforming to DIN VDE 0207-21 standards. This inner sheath fills the interstices between conductors, providing additional mechanical protection and maintaining the cable's structural integrity during flexing operations. The material selection ensures compatibility with industrial environments while providing resistance to moisture ingress and mechanical damage.

The outer sheath represents the cable's primary defense against environmental challenges, utilizing heavy-duty rubber compound type 5GM5 according to DIN VDE 0207-21 specifications. This heavy-duty rubber sheathed festoon cable features a distinctive black coloration with inkjet marking for easy identification. The outer sheath provides exceptional resistance to abrasion, cutting, and environmental factors while maintaining flexibility throughout the cable's service life.

Environmental and Chemical Resistance

Environmental resilience stands as one of the defining characteristics of the (N)3GRD5G-J/O cable, enabling reliable operation across a broad spectrum of challenging industrial conditions. The cable's temperature performance range accommodates the diverse thermal environments encountered in modern industrial applications, with flexible operation capabilities from -30°C to +80°C and fixed installation ratings from -40°C to +80°C. This extensive temperature range ensures reliable performance in both indoor climate-controlled environments and outdoor installations subject to seasonal temperature variations.

Chemical resistance represents a critical performance aspect for industrial cables, and the (N)3GRD5G-J/O cable demonstrates exceptional resistance to oil according to DIN EN/IEC 60811-404 testing standards. This oil-resistant festoon cable capability makes it suitable for applications in manufacturing environments where hydraulic fluids, lubricants, and industrial oils are present. The chemical resistance extends the cable's service life while reducing maintenance requirements and replacement costs.

Weather resistance capabilities enable unrestricted use in both indoor and outdoor applications, with specific resistance to ozone, UV radiation, and moisture. The UV-resistant cable design incorporates stabilizers and protective compounds that prevent degradation from prolonged solar exposure, making it suitable for outdoor crane systems, port facilities, and construction equipment applications. Ozone resistance ensures reliable performance in environments with electrical equipment that may generate ozone, while moisture resistance prevents insulation degradation in humid or wet conditions.

Fire behavior compliance with DIN EN/IEC 60332-1-2 standards ensures that this fire-retardant power cable meets the safety requirements for industrial installations. The flame-retardant properties prevent fire propagation while maintaining structural integrity during emergency conditions, contributing to overall facility safety and regulatory compliance.

The cable's environmental performance is further enhanced by its RoHS 2015/863/EU compliance, ensuring that harmful substances are eliminated from the manufacturing process. This environmental responsibility extends to the cable's entire lifecycle, from manufacturing through disposal, supporting sustainable industrial practices and regulatory compliance requirements.

Compliance and Certifications

Regulatory compliance and industry certifications form the foundation of the (N)3GRD5G-J/O cable's suitability for demanding industrial applications, providing engineers and procurement managers with confidence in product performance and safety. The cable's compliance with CPR 305/2011 (Construction Products Regulation) ensures that it meets the essential requirements for construction products used in industrial facilities, addressing aspects of mechanical resistance, fire safety, hygiene, health, environmental protection, and energy economy.

Low Voltage Directive (LVD) 2014/35/EU compliance guarantees that the cable meets the essential health and safety requirements for electrical equipment operating within specified voltage limits. This RoHS compliant flexible control cable certification ensures safe operation in industrial environments while providing protection against electrical hazards and maintaining consistent performance throughout its service life.

The comprehensive DIN EN/IEC compliance standards cover multiple aspects of cable performance, including conductor specifications (DIN EN/IEC 60228), insulation materials (IEC 60502-1), sheath compounds (DIN VDE 0207-21), color coding (DIN VDE 0293-308), oil resistance (DIN EN/IEC 60811-404), and fire behavior (DIN EN/IEC 60332-1-2). This extensive standards compliance ensures interoperability with international industrial systems and provides assurance of consistent quality and performance.

RoHS 2015/863/EU compliance addresses the restriction of hazardous substances in electrical and electronic equipment, ensuring that the cable's manufacturing process eliminates harmful materials such as lead, mercury, cadmium, hexavalent chromium, and specific flame retardants. This environmental compliance supports sustainable industrial practices and enables use in facilities with strict environmental requirements.

The festoon cable with CPR and LVD certifications provides comprehensive documentation supporting installation approval processes and regulatory compliance verification. These certifications are backed by rigorous testing protocols and quality assurance processes that ensure consistent performance across production batches and extended service periods.

Quality management systems supporting these certifications include comprehensive testing procedures, material traceability, and performance verification protocols that ensure each cable meets or exceeds specified performance criteria. This systematic approach to quality assurance provides end users with confidence in long-term reliability and performance consistency.

Conclusion

The (N)3GRD5G-J/O heavy-duty festoon cable represents the pinnacle of engineering excellence for dynamic mechanical applications, combining advanced materials science with proven design principles to deliver exceptional performance in the most demanding industrial environments. Its specialized construction addresses the unique challenges of unidirectional bending applications while providing comprehensive environmental protection and regulatory compliance.

For engineers designing new industrial systems or upgrading existing facilities, the (N)3GRD5G-J/O cable offers a compelling combination of mechanical durability, electrical performance, and environmental resistance that translates directly into reduced maintenance costs, improved system reliability, and extended operational life. The cable's ability to withstand millions of bending cycles while maintaining electrical integrity makes it an ideal choice for high-frequency applications where downtime costs can be substantial.

Procurement managers will appreciate the cable's comprehensive certification portfolio, which simplifies approval processes and ensures compliance with international standards. The combination of CPR, LVD, and RoHS compliance, along with extensive DIN EN/IEC standards adherence, provides assurance of quality and performance while supporting sustainable procurement practices.

The (N)3GRD5G-J/O cable's versatility across indoor and outdoor applications, combined with its resistance to oil, UV radiation, and environmental factors, makes it a cost-effective solution for diverse industrial applications. From trolley systems and conveyor facilities to automated manufacturing lines and material handling equipment, this cable provides the reliability and performance that modern industrial operations demand.

Frequently Asked Questions

Q: What makes the (N)3GRD5G-J/O cable suitable for festoon applications? A: The cable is specifically designed for frequent bending in one direction with optimized conductor arrangement, flexible HEPR insulation, and heavy-duty rubber sheathing. Its construction allows for millions of bending cycles while maintaining electrical integrity, making it ideal for trolley systems and conveyor applications.

Q: Can this cable be used in outdoor environments? A: Yes, the (N)3GRD5G-J/O cable is designed for both indoor and outdoor use. It features UV-resistant outer sheathing, weather resistance to ozone and moisture, and operates reliably in temperatures from -30°C to +80°C for flexible applications.

Q: What is the maximum reeling speed for this festoon cable? A: The cable can operate at reeling speeds up to 240 meters per minute, making it suitable for high-speed material handling systems and rapid positioning applications while maintaining electrical and mechanical integrity.

Q: Is the cable compliant with European safety standards? A: Yes, the cable complies with CPR 305/2011, LVD 2014/35/EU, and RoHS 2015/863/EU regulations. It also meets numerous DIN EN/IEC standards for conductor specifications, insulation materials, fire behavior, and oil resistance.

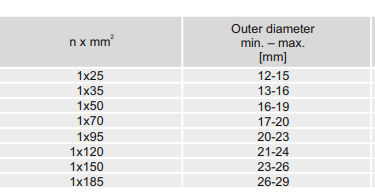

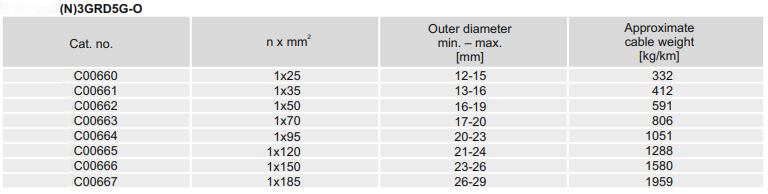

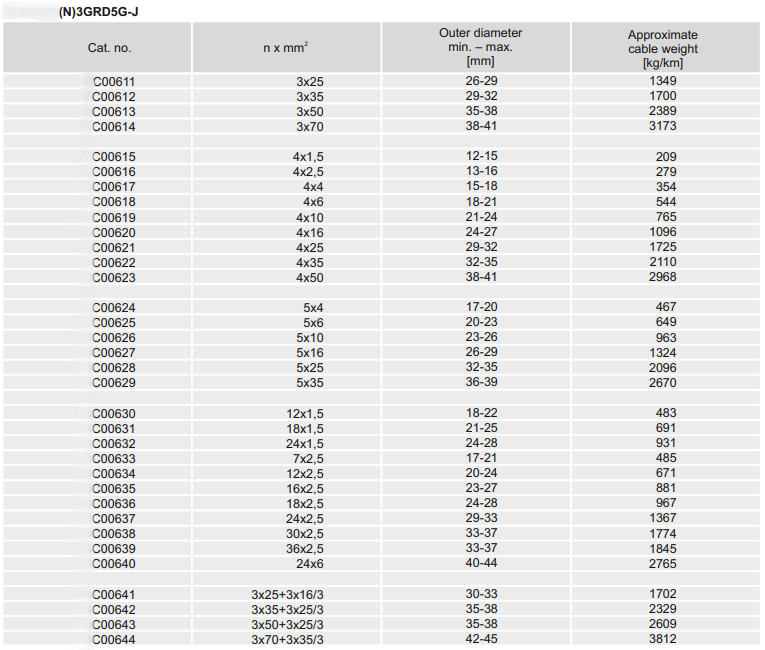

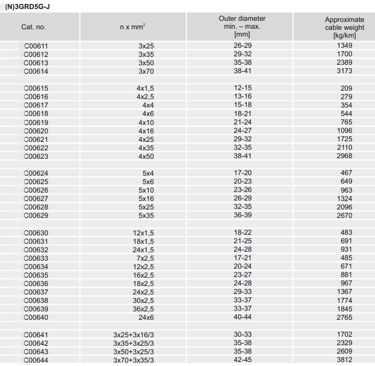

Q: What conductor sizes are available for the (N)3GRD5G-J/O cable? A: The cable is available in various conductor configurations and sizes, with fine-stranded bare copper conductors manufactured to Class 5 specifications according to DIN EN/IEC 60228 standards. Specific configurations can be selected based on application requirements.

Q: How does the cable perform in environments with oil exposure? A: The cable demonstrates exceptional oil resistance according to DIN EN/IEC 60811-404 testing standards, making it suitable for manufacturing environments where hydraulic fluids, lubricants, and industrial oils are present.

Q: What is the voltage rating of this festoon cable? A: The cable is rated for 0.6/1 kV operation, with maximum permissible operating voltages of 0.7/1.2 kV in AC systems and 0.9/1.8 kV in DC systems. It has an AC test voltage rating of 2.5 kV for reliable insulation performance.
