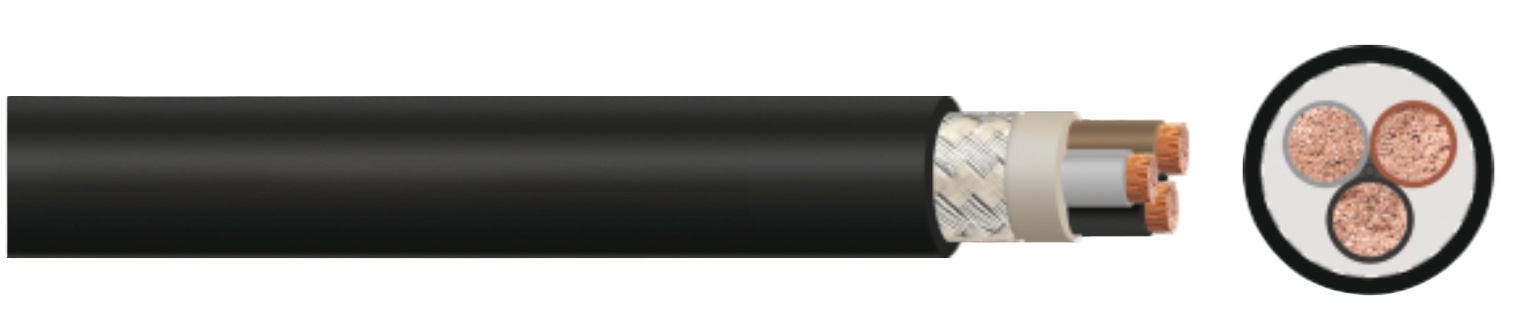

(N)3GRDC5G-J/O Flexible Round Festoon Cable 0.6/1kV
High-flex power cable for trolley systems, cranes, and moving machinery - Indoor/outdoor use
$12.00
Application: |
Power and control cable for high mechanical requirements, frequently bendings in only one direction designed especially for festoon applications especially use in trolley systems, drag chains on moving parts of machines, conveyor facilities. Cables are suitable for both indoor and outdoor applications. |
Technical data: |
|
Thermal parameters: Ambient temperature: fixed installation: -40 °C to 80 °C flexible operation: -30 °C to 80 °C Max. permissible conductor temp.: 90 °C Max. short-circuit temp. at conductor: 250 °C Mechanical parameters: Max. tensile load per conductor: 15 N/mm² Bending radius acc. to DIN VDE 0298-3: - fixed installation: ≥ 4 x outer - Ø - festoon application: ≥ 5 x outer - Ø Reeling speed: ≤ 240 m/min |
Design: |
|
Conductor: bare copper wires, finely stranded, class 5 acc. to DIN EN/IEC 60228 Insulation: HEPR compound acc. to IEC 60502-1 colours acc. to DIN VDE 0293-308 up to 5 wires colored, from 6 wires natural, numbered (with or without green/yellow protective conductor) Core arrangement: cores stranded in layers around central element Inner sheath:synthetic rubber compound, type GM1b / EPDM acc. to DIN VDE 0207-21, filling the interstices Screen: tinned copper wires / synthetic threads braid Outer sheath:heavy duty rubber compound, type 5GM5 acc. to DIN VDE 0207-21, colour: black, inkjet marking |
