(N)7YRDGOEU Spring Cable Reel Connection Cable: Complete Technical Guide for Wastewater Treatment and Reeling Applications

Introduction

The EASYFLEX N7YRDGOEU connection cable represents a specialized solution designed specifically for spring cable reel systems in demanding industrial environments. This low voltage reeling cable combines mechanical durability with electrical reliability, making it an ideal choice for wastewater treatment plants and various indoor outdoor reeling applications where conventional cables often fail to meet operational demands.

Spring cable reel systems require cables that can withstand continuous flexing, torsional stress, and environmental exposure while maintaining consistent electrical performance. The N7YRDGOEU cable addresses these challenges through its engineered construction, featuring multiple protective layers and carefully selected materials that work together to deliver long-term reliability in simple reeling operations.

Why Choose Spring Cable Reel Solutions

Spring cable reels offer distinct advantages in applications requiring retractable power and control connections. Unlike fixed cable installations, spring reels automatically manage cable length, reducing trip hazards and protecting cables from damage when equipment moves or operates at variable positions. The connection cable for wastewater treatment plants must endure harsh conditions including moisture, chemical exposure, and temperature variations—requirements that standard cables cannot consistently meet.

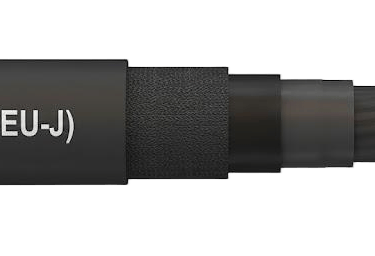

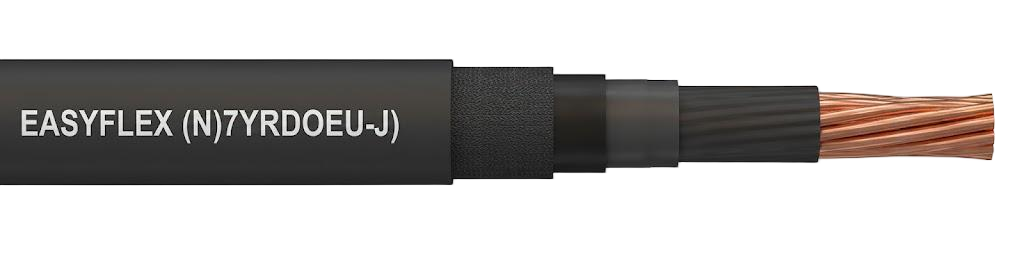

Cable Design and Construction Features

Conductor Specifications

The N7YRDGOEU employs bare electrolytic copper conductors with very finely stranded construction classified as class FS. This ultra-flexible conductor design provides several critical advantages for reeling applications. The fine stranding reduces mechanical fatigue during repeated bending cycles, ensuring reliable conductivity even after thousands of flexing operations. Enhanced conductivity characteristics minimize voltage drop and power loss, which becomes particularly important in longer cable runs common in wastewater treatment facilities.

Insulation System

ETFE (ethylene tetrafluoroethylene) insulation surrounds each conductor, providing superior mechanical and electrical characteristics compared to conventional insulation materials. ETFE offers exceptional resistance to abrasion, chemicals, and extreme temperatures while maintaining excellent dielectric properties. This insulation system ensures that the EASYFLEX N7YRDGOEU specifications include reliable performance across a wide operating temperature range from -35°C to +80°C during flexible operation.

The ETFE insulation complies with DIN VDE 0207 standards, guaranteeing consistent quality and performance characteristics. This material selection proves particularly valuable in wastewater environments where exposure to aggressive substances could degrade lesser insulation compounds.

Core Identification and Arrangement

Individual cores feature black-colored insulation with numbers printed in white, enabling clear identification during installation and maintenance. The earth conductor uses the standard green-yellow color coding for immediate recognition. Cores are laid up in layers to optimize flexibility while maintaining structural integrity during bending and torsional movement.

This layered construction distributes mechanical stresses evenly across the cable structure, preventing localized strain that could lead to premature failure. The arrangement ensures that the flexible connection cable maintains its round cross-section even during tight bending, which is essential for smooth operation on spring cable reels.

Sheath System

The N7YRDGOEU features a dual-sheath design that provides comprehensive protection against environmental factors. The inner sheath uses EPR (ethylene propylene rubber) in black, offering excellent mechanical properties and resistance to compression forces that occur during cable winding and unwinding operations.

The outer sheath consists of EVA (ethylene-vinyl acetate), also in black, which delivers outstanding weather resistance and UV protection for outdoor installations. This combination creates a robust barrier against moisture ingress, making the cable suitable for the wet conditions prevalent in wastewater treatment plants. The EVA outer layer resists degradation from sunlight exposure, maintaining cable integrity throughout its service life.

Electrical Performance and Ratings

Voltage Specifications

The cable carries a rated voltage of 0.6/1 kV (600-1000V), suitable for low voltage power distribution and control applications. Maximum permissible operating voltages include 0.7-1.2 kV AC and 0.9-1.8 kV DC, providing safety margins above the rated voltage for transient conditions and voltage spikes that occur in industrial electrical systems.

These specifications make the N7YRDGOEU cable technical specifications and performance suitable for standard industrial power distribution networks while maintaining compliance with international safety standards. The cable successfully passes AC test voltage requirements of 3.5 kV minimum for five minutes, demonstrating robust insulation integrity.

Current Carrying Capacity

Current carrying capacity conforms to DIN VDE 0298-4 standards, with specific ampacity values varying by core configuration and cross-sectional area. The capacity ratings ensure safe operation at rated temperatures without exceeding conductor heat limits. For example, a 4x4 mm² configuration carries 41 amperes, while larger 4x16 mm² cables handle 99 amperes under standard installation conditions.

Proper current loading prevents overheating that could degrade insulation materials or cause premature cable failure. When selecting cable sizes for specific applications, engineers must consider not only the maximum load current but also ambient temperature conditions and installation methods that affect heat dissipation.

Thermal Performance

Maximum conductor temperature reaches 90°C during normal operation, providing adequate thermal capacity for continuous loading. During short-circuit conditions, the conductor can briefly withstand temperatures up to 250°C, allowing protective devices time to interrupt fault currents before cable damage occurs.

The ambient operating range spans from -35°C to +80°C during flexible operation, accommodating both cold outdoor environments and heated indoor spaces common in industrial facilities. For fixed installations, the temperature range extends even wider from -50°C to +80°C, demonstrating the cable's versatility across diverse climatic conditions.

Mechanical Properties and Durability

Tensile Load and Strength

The N7YRDGOEU spring cable reel specifications include a maximum tensile load rating of 15 N/mm², indicating the cable can withstand moderate pulling forces during installation and operation. This tensile strength prevents conductor damage when cables experience tension during reeling operations or when suspended over distances.

The minimum bending radius equals 6 times the cable outer diameter (6 × D), which is relatively generous compared to high-performance reeling cables but appropriate for spring cable reel applications where bending occurs gradually. This bending radius specification ensures the cable can flex repeatedly without experiencing insulation cracking or conductor strand breakage that would compromise performance.

Torsional Stress Resistance

With a torsional stress tolerance of ±15°/m, the cable resists twisting forces that occur when cables wind onto reels at angles or when equipment rotates during operation. This torsional resistance, while moderate compared to premium reeling cables, suffices for simple reeling applications where extreme twisting is uncommon.

Reduced torsional capability means installation practices should minimize cable twisting during deployment. Proper reel mounting and cable routing prevent excessive torsion accumulation that could exceed the cable's design limits.

Travel Speed Capabilities

The recommended reeling operation speed reaches up to 80 m/min, making this durable spring cable reel solution for treatment plants suitable for automated systems with moderate operating velocities. This speed limitation reflects the cable's design optimization for cost-effective connectivity solutions rather than high-speed industrial applications.

Applications requiring speeds exceeding 80 m/min should consider alternative cable designs with enhanced mechanical properties. For most wastewater treatment equipment including pumps, valves, and sensors, this speed rating provides adequate performance.

Environmental Durability

The weather-resistant EVA outer sheath protects against moisture ingress and UV degradation in outdoor installations. The cable maintains its mechanical and electrical properties despite exposure to rain, humidity, and direct sunlight. Chemical resistance inherent in the EPR inner sheath and EVA outer sheath enables reliable operation in wastewater environments where various chemicals may contact cable surfaces.

Cable Configurations and Applications

Control Cable Options

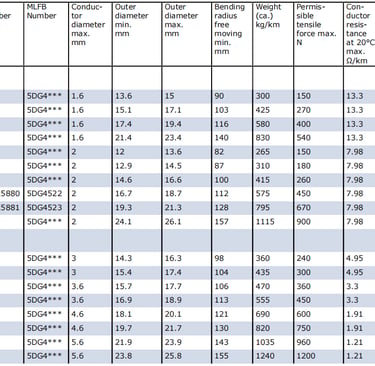

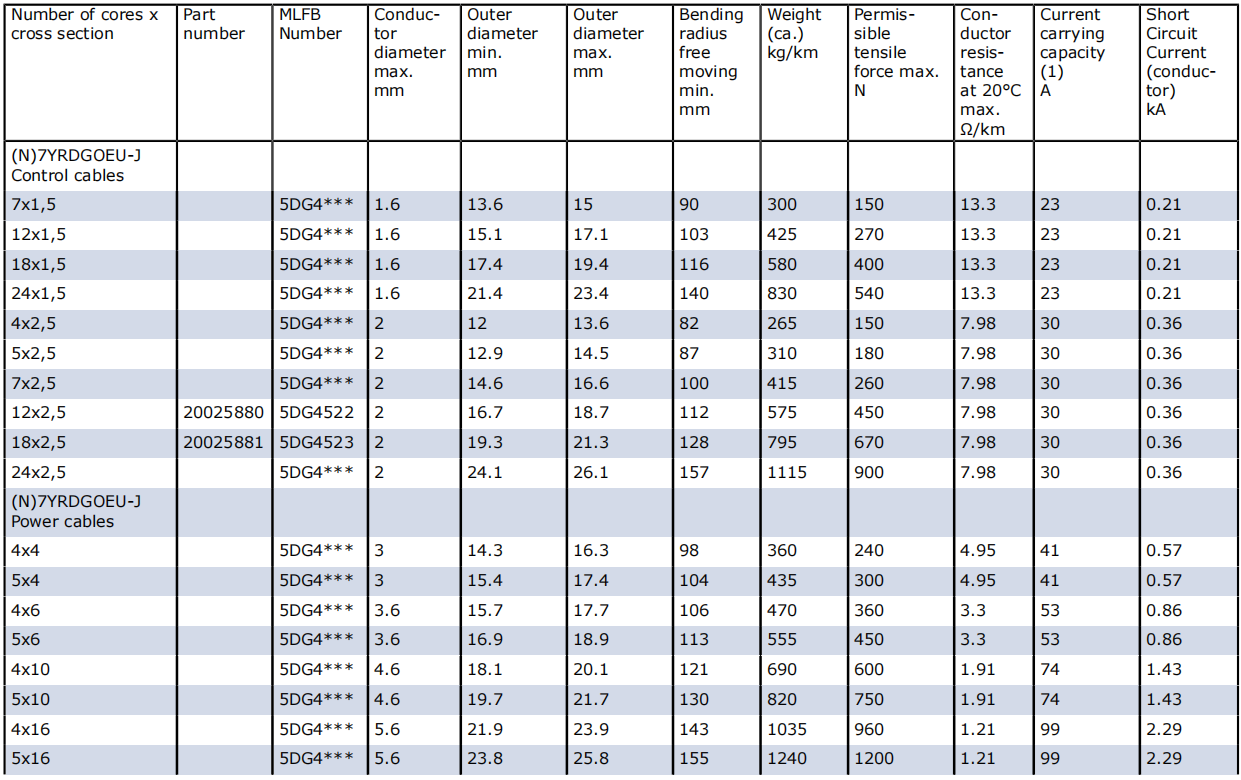

The best cable for simple reeling operations comes in multiple control cable configurations to match different application requirements. Available configurations include:

• 7×1.5 mm², 12×1.5 mm², 18×1.5 mm², 24×1.5 mm² for multi-circuit control systems

• 4×2.5 mm², 5×2.5 mm², 7×2.5 mm² for higher current control applications

• 12×2.5 mm², 18×2.5 mm², 24×2.5 mm² for complex control panels requiring numerous circuits

Control cables serve instrumentation, sensor connections, valve actuators, and monitoring equipment throughout wastewater facilities. The variety of core counts allows engineers to select cables that precisely match their circuit requirements without paying for unnecessary conductors.

Power Cable Options

Power cable configurations provide options for different load capacities:

• 4×4 mm², 5×4 mm² for lighter loads

• 4×6 mm², 5×6 mm² for intermediate power requirements

• 4×10 mm², 5×10 mm² for substantial motor loads

• 4×16 mm², 5×16 mm² for heavy-duty applications

These EASYFLEX reeling cable for wastewater systems configurations support pump motors, lighting systems, and other power-consuming equipment. The four-core designs suit three-phase plus earth connections, while five-core options accommodate three-phase plus neutral plus earth configurations.

Key Applications and Use Cases

Wastewater Treatment Plants

Wastewater treatment facilities present unique challenges for electrical installations. Equipment often operates in wet environments with exposure to corrosive substances, temperature variations, and mechanical vibration. The N7YRDGOEU cable mechanical and electrical properties address these demands through its moisture-resistant sheath system and robust construction.

Typical applications include:

• Pump control systems: Submersible and surface pumps require reliable power and control connections that withstand wet conditions

• Automated valve connections: Actuated valves controlling flow throughout treatment processes need dependable electrical supplies

• Sensor networks: pH sensors, flow meters, and level detectors require multi-conductor control cables for signal transmission

• Chemical dosing equipment: Precise chemical addition systems depend on accurate control signaling

The cable's durability in chemical environments ensures long-term reliability even when exposed to treatment chemicals that might degrade conventional cable materials.

Spring Cable Reel Operations

Spring cable reels automatically retract cables, maintaining proper storage and protecting cables from damage when equipment returns to rest positions. This low cost flexible connection cable for reeling systems excels in applications including:

• Mobile equipment connections: Traveling bridges, gantry cranes, and movable pumps

• Adjustable position machinery: Equipment requiring frequent repositioning

• Safety-critical retraction: Systems where cable management prevents trip hazards

The cable's flexibility and torsional resistance enable smooth winding onto reels without kinking or twisting that could impair function. Protection against abrasion from repeated contact with reel drums and guide mechanisms ensures extended service life.

Indoor and Outdoor Installations

Temperature tolerance from -35°C to +80°C during flexible operation allows installations in both climate-controlled buildings and exposed outdoor locations. Indoor applications benefit from the cable's compact construction and reliable performance in temperature-stable environments. Outdoor installations leverage the UV-resistant EVA outer sheath and moisture protection to maintain performance despite weather exposure.

Troubleshooting Common Issues

Cable Damage Prevention

Problem: Premature cable failure due to mechanical damage

Solution: Ensure minimum bending radius (6 × D) is maintained during installation and operation. Avoid routing cables over sharp edges that could abrade the outer sheath. Use appropriate cable guides and supports on spring reels to prevent excessive wear from friction. Regular visual inspections identify early signs of damage before complete failure occurs.

Performance Optimization

Problem: Reduced cable lifespan or electrical issues

Solution: Monitor operating temperatures to confirm they remain within specified limits. Excessive ambient temperatures or inadequate heat dissipation can cause insulation degradation. Verify that current loading doesn't exceed rated capacity for the specific cable configuration. Balance loads across available conductors in multi-core cables to prevent localized overheating.

Installation Challenges

Problem: Difficulty managing cable during spring reel installation

Solution: Pre-form the cable by unrolling it completely before installation to remove packaging-induced set or kinks. Allow the cable to reach ambient temperature before installation in extreme cold conditions, as this improves flexibility. Follow manufacturer recommendations for maximum tensile force during installation to prevent conductor damage.

Environmental Exposure Concerns

Problem: Uncertainty about chemical compatibility in wastewater environments

Solution: The EPR inner sheath and EVA outer sheath provide resistance to common wastewater treatment chemicals. However, for installations involving concentrated acids, bases, or unusual chemicals, conduct compatibility testing or consult chemical resistance data. Provide additional mechanical protection in areas where chemical splashing frequently occurs.

Installation and Maintenance Guidance

Proper installation practices maximize cable performance and service life. Route cables to avoid unnecessary bending or twisting. Secure cables at appropriate intervals to prevent excessive movement that could cause mechanical fatigue. When connecting to spring cable reels, ensure the reel mounting allows cables to feed smoothly without forcing tight bends.

Maintenance requirements remain minimal for this low-maintenance cable system. Periodic visual inspections identify signs of wear, damage, or deterioration. Check cable entry points for moisture ingress that could compromise electrical integrity. Verify that connections remain tight and free from corrosion that could increase resistance or create hot spots.

Conclusion

The EASYFLEX N7YRDGOEU represents an engineered solution for spring cable reel applications requiring reliable performance under moderate mechanical stresses. Its combination of flexible construction, environmental protection, and electrical reliability makes it particularly suitable for wastewater treatment plants and similar industrial environments.

Understanding the cable's capabilities and limitations ensures appropriate application selection. While not designed for extreme conditions requiring premium reeling cables with higher tensile loads or faster speeds, the N7YRDGOEU excels in its intended role providing cost-effective, dependable connections for simple reeling operations. Its proven construction and compliance with international standards deliver the performance wastewater facilities and industrial installations demand for years of trouble-free operation.
