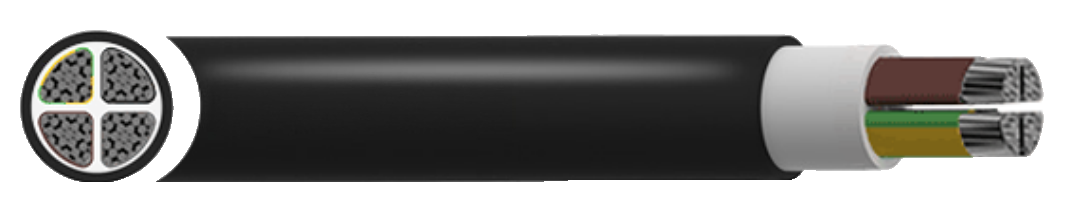

NA2XH IEC 60502-1 AL-XLPE-LSZH 0.6/1kV Power Cable

APPLICATION

XLPE insulated and halogen-free thermoplastic compound sheathed power and auxiliary fixed wiring cables for the supply of electrical energy. Installations where fire and emissions of smoke and toxic fumes create a potential threat. Not suitable  for use in water.

CABLE STANDARDS

IEC 60502-1, Gen to VDE 0276 Part 604,

CHARACTERISTICS

Voltage Rating Uo/U (Um) AC: 0.6/1 (1.2)kV

DC: 0.9/1.8kV

Temperature Rating

Fixed: -40°C to +90°C

Minimum Bending Radius

Single core: 15 x overall diameter

Multi-core: 12 x overall diameter

CONSTRUCTION

Conductor

RM: Class 2 stranded

SE: Class 1 solid sector - shaped or stranded

SM: Class 2 sector - shaped

Insulation

XLPE (Cross-Linked Polyethylene)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

3 core: e Green/Yellow ● Blue ● Brown

4 core: e Green/Yellow ● Brown ● Black Grey

5 core: e Green/Yellow ● Blue ●Brown Grey

7 and more: Black with White numbers

Sheath Colour

● Black
