NA2XH IEC 60502-1 AL/XLPE/LSZH 1.8/3 (3.6)kV Power Cable
Halogen-Free XLPE Insulated Cable for Secure Medium Voltage Power Installations
$5.00
APPLICATION XLPE insulated and halogen-free thermoplastic compound sheathed power and auxiliary fixed wiring cables for the supply of electrical energy. Installations where fire and emissions of smoke and toxic fumes create a potential threat. Not suitable for use in water. |
CHARACTERISTICS Voltage Rating AC: 1.8/3 (3.6)kV DC: 2.7/5.4 kV Temperature Range Maximum Conductor Operating Temperature: +90ºC Maximum Conductor Temperature During S.C: +250°C Minimum Bending Radius 15 x Overall Diameter |

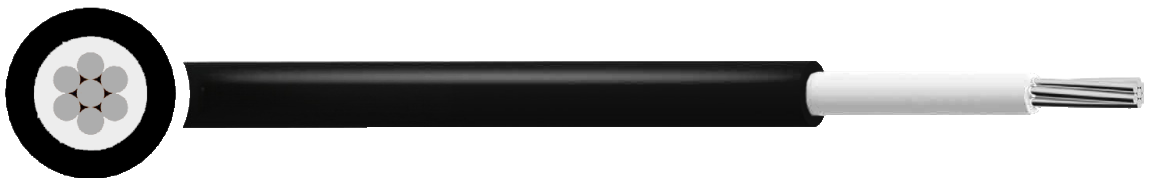

CONSTRUCTION
Conductor
Class 2 Stranded Plain Aluminium Circular Compact Conductor
Insulation
XLPE (Cross linked Polyethylene)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Black
STANDARDS
IEC 60502-1, IEC 60228,
Flame Retardant to IEC 60332-1-2
Low Smoke Halogen Free to IEC 61034-1/2, IEC 60754-1/2 UV resistant ISO 4892
Ozone resistant EN 50396
Resistant to oils, greases
