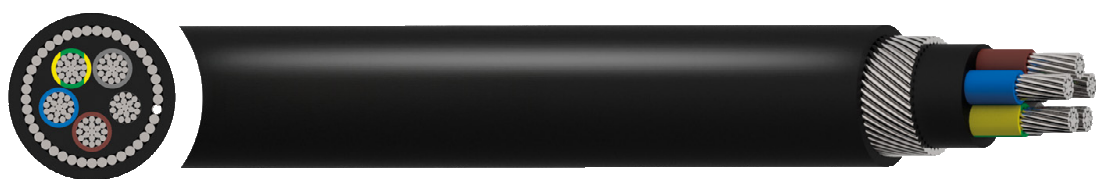

NA2XRH Aluminium Conductor IEC 60502-1 XLPE SWA LSZH 0.6/1kV Cable
Multi-core LSZH cable with steel wire armour (SWA).
$25.00
APPLICATION Multi-core LSZH cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Maximum Operating Temperature Fixed: -5°C to +90°C Minimum Bending Radius 15 x overall diameter |
CONSTRUCTION
Conductor
Class 2 stranded aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
LSZH (Low Smoke Zero Halogen)
Armour
Single core: AWA (Aluminium wire armour)
All other sizes: SWA (Galvanized round steel wire)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
2 core: Blue Brown
3 core: ●Brown ● BlackGrey
4 core: ●Blue ●Brown ●Black Grey
5 core: eGreen/Yellow ● Blue ● Brown ● Black Grey
Sheath Colour
● Black
