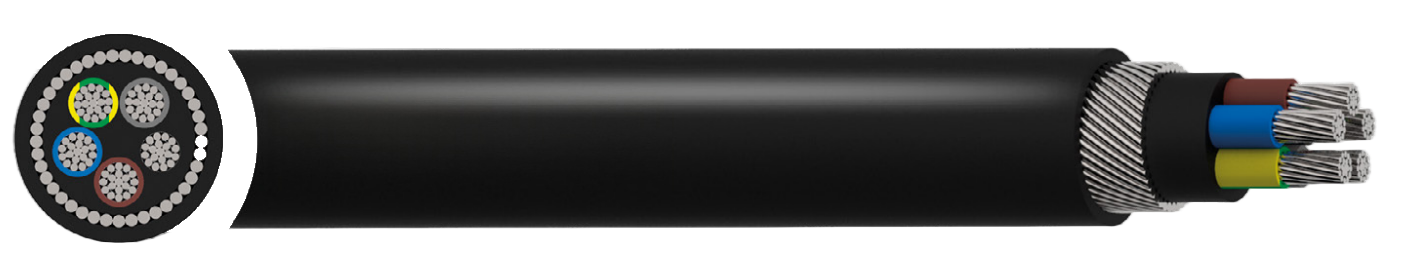

NA2XRH Aluminium Conductor XLPE SWA LSZH 0.6/1kV Cable
Fire-safe aluminium power cable with LSZH and steel wire armour for underground, indoor, and outdoor installations
$15.00
APPLICATION
Multi-core LSZH cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks,underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Maximum Operating Temperature
Fixed: -5°C to +90°C
Minimum Bending Radius
15 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
LSZH (Low Smoke Zero Halogen)
Armour
Single core: AWA (Aluminium wire armour)
All other sizes: SWA (Galvanized round steel wire)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
2 core: Blue Brown
3 core: ●Brown ● Black Grey
4 core: ●Blue ●Brown ●Black Grey
5 core: eGreen/Yellow ● Blue ● Brown ● Black Grey
Sheath Colour
● Black
STANDARDS
Generally to BS 6724, IEC 60502-1, EN 50267-2-1,
EN 60228
