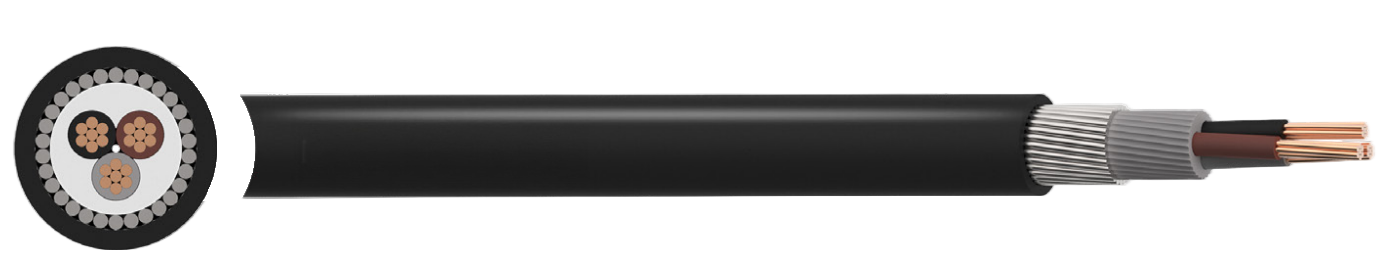

N2XRY Cu/XLPE/PVC/SWA/PVC 0.6/1kV Cable
European standard armoured copper power and control cable for underground, indoor, and outdoor installations
$35.00
APPLICATION
European name of the BS5467 cable. Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
STANDARDS
BS 5467, IEC/EN 60502-1, IEC/EN 60228
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Fixed: -25°C to +90°C
Minimum Bending Radius
1.5mm² to 16mm² - Fixed: 6 x overall diameter 25mm² and above - Fixed: 8 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Armour
SWA (Steel Wire Armour)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
2 core: Brown
3 core: Brown
4 core: Brown
5 core: Green/Yellow
Alternative Core Identification
o White cores with Black numbers
Sheath Colour
● Black
