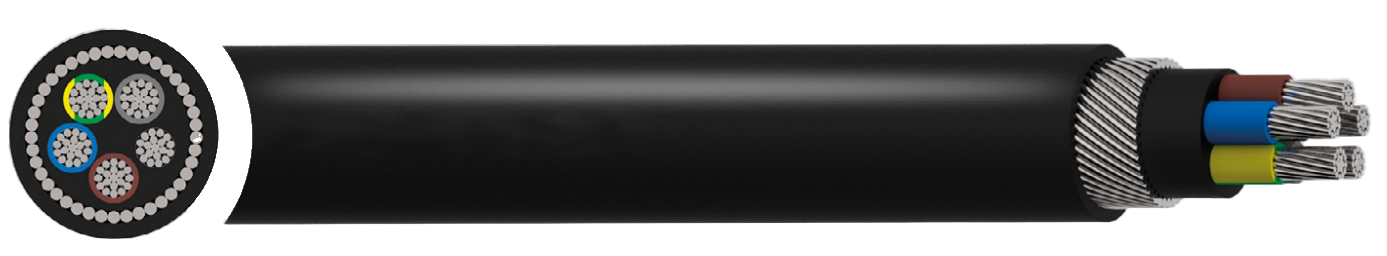

NA2XRY Aluminium Conductor XLPE SWA PVC 0.6/1kV Cable
Durable aluminium power cable for underground use in harsh conditions and high temperature environments
$25.00
APPLICATION
Can be used in underground installations since the cable is very suitable for mechanical compulsion and harsh operating conditions. Suitable for comparatively high ambient temperature due to high maximum permissible conductor temperature.
STANDARDS
Generally to BS 5467, IEC 60502
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Range
Fixed: -5°C to +90°C
Minimum Bending Radius
15 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC (Polyvinyl Chloride)
Armour
Single core: AWA (Aluminium wire armour)
All other sizes: SWA (Galvanized round steel wire)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
2 core: Blue Brown
3 core: Brown Black Grey
4 core: Blue Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
Sheath Colour
● Black
