NA2XS2Y 18/30 (36)kV Cable
STANDARDS IEC 60502-2, IEC 60228,
APPLICATION
Medium voltage power cables for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant.
CHARACTERISTICS
Voltage Rating Uo/U (Um) 18/30 (36)kV
Test Voltage
63kV AC 50Hz (5 mins)
Temperature Rating
-20°C to +60°C
Permissible Conductor Operating Temperature: +90°C
Permissible Short Circuit Temperature up to 5 sec: 250°C
Minimum Bending Radius
15 x overall diameter

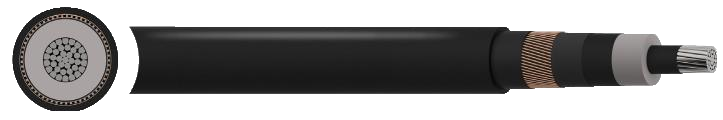

CONSTRUCTION
Conductor
Class 2 Stranded Aluminium
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene) Insulation Screen
Semi-conductive material (bonded)
Screen
Copper wires and copper tape
Outer Sheath
MDPE (Medium Density Polyethylene) Sheath Colour
● Red ● Black
