NA2XS(FL)2Y 12/20 (24)kV Cable

APPLICATION

Medium voltage power cables with additional waterblocking properties for distribution networks and

generation units, suitable for external installation including   in direct in ground and in buried cable ducts. UV Resistant.

CHARACTERISTICS

Voltage Rating Uo/U (Um) 12/20 (24)kV

Test Voltage

42kV AC 50Hz (5 mins)

Temperature Rating

-20°C to +60°C

Permissible Conductor Operating Temperature: +90°C

Permissible Short Circuit Temperature up to 5 sec: 250°C

Minimum Bending Radius

15 x overall diameter

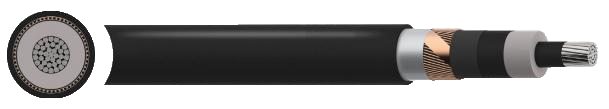

CONSTRUCTION

Conductor

Class 2 Stranded Aluminium

Conductor Screen

Semi-conductive material

Insulation

XLPE (Cross-Linked Polyethylene) Insulation Screen

Semi-conductive material (bonded)

Longitudinal Waterblocking

Semi-conductive swellable tape

Screen

Copper wires and copper tape

Longitudinal Waterblocking

Swellable Tapes

Radial Waterblocking

Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath

Outer Sheath

MDPE (Medium Density Polyethylene)

Sheath Colour

● Red ● Black
