NA2XS(FL)2Y 18/30 (36)kV Cable
STANDARDS IEC 60502-2, IEC 60228,
APPLICATION Medium voltage power cables for distribution networks and generation units, suitable for external installation including in buried cable ducts. UV Resistant. |
CHARACTERISTICS Voltage Rating Uo/U (Um) 18/30 (36)kV Test Voltage 63kV AC 50Hz (5 mins) Temperature Rating -20°C to +60°C Permissible Conductor Operating Temperature: +90°C Permissible Short Circuit Temperature up to 5 sec: 250°C Minimum Bending Radius 15 x overall diameter |

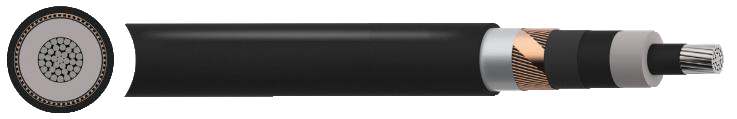

CONSTRUCTION
Conductor
Class 2 Stranded Aluminium
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene) Insulation Screen
Semi-conductive material (bonded)
Longitudinal Waterblocking
Semi-conductive swellable tape
Screen
Copper wires and copper tape
Longitudinal Waterblocking
Swellable Tapes
Radial Waterblocking
Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath
Outer Sheath
MDPE (Medium Density Polyethylene)
Sheath Colour
● Red ● Black
