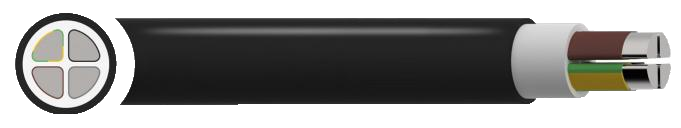

NAY2Y Cable
For fixed installation underground, in interior premises, cable ducts, in the open air and in water under severe mechanical stressing during installation and operation.
APPLICATION The NAY2Y is mainly used for power distribution in power stations, industrial installation and switchgears, as well as in local mains. For fixed installation underground, in interior premises, cable ducts, in the open air and in water under severe mechanical stressing during installation and operation. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Operating temperature: -30ºC to +70ºC Maximum conductor temperature: +70ºC Short Circuit Temperature 160°C Minimum Bending Radius Single core: 15 x overall diameter Multi core: 12 x overall diameter |
CONSTRUCTION
Conductor
RE: Class 1 round solid aluminium
SE: Class 1 sector shaped solid aluminium
RM: Class 2 round stranded aluminium
SM: Class 2 sector shaped stranded aluminium
Insulation
PVC (Polyvinyl chloride)
Outer Sheath
HDPE (High-density polyethylene)
Core identification
1 core:
Black
3 core + earth: e Green/Yellow ● Blue ● Brown
4 core: e Green/Yellow ● Brown ● Black ● Grey
5 core: e Green/Yellow ● Blue ● Brown ● Black ● Grey
Outer Sheath Colour
● Black
