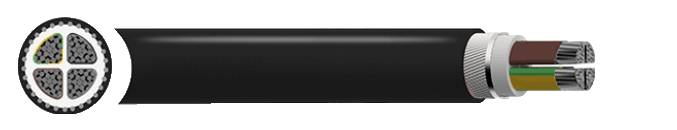

NAYRY-J/O 0.6/1kV PVC Insulated Steel Wire Armoured Power Cable
Aluminum Conductor Cable for Power Distribution with Mechanical Protection, Suitable for Underground, Indoor, and Water Installations
$15.00
APPLICATION
The NAYRY-J/O is mainly used for power distribution in power stations, industrial installation and switchgears, as well as in local mains. For fixed installation underground, in interior premises, cable ducts, in the open air and in water if high protection against mechanical damage is required.
STANDARDS
DIN VDE 0276-603 (HD603), HD 308 S2
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Test Voltage
4kV/50Hz
Temperature Rating
Laying temperature: min -5ºC
Operating temperature: -50ºC to +70ºC
Maximum conductor temperature: +70ºC
Short Circuit Temperature
160°C
Minimum Bending Radius
15 x overall diameter
CONSTRUCTION
Conductor
RM: Class 2 round stranded aluminium
SM: Class 2 sector shaped stranded aluminium
Insulation
PVC (Polyvinyl chloride)
Armour
SWA (Galvanized Steel Wire Armour)
Tape
Plastic Tape
Outer Sheath
UV resistant PVC (Polyvinyl chloride)
Core identification
3 core + earth: ● Brown ● Black Grey e Green/Yellow
Outer Sheath Colour
● Black
Note: Available without earth (NAYRY-O) on request
