(N)GFLCGOEU-J EMC-Screened Flat Rubber Crane Cable for Festoon Systems and Moving Machinery Applications

Introduction to (N)GFLCGOEU-J Crane Cable

The (N)GFLCGOEU-J represents a pinnacle of engineering excellence in specialised industrial cable solutions, specifically designed to meet the demanding requirements of modern Australian industrial operations. This EMC-screened flat rubber crane cable serves as a critical component in festoon systems, conveyors, machine tools, and large-scale industrial equipment where reliable power transmission is paramount.

Engineered to comply with the stringent requirements of DIN VDE 0298-3, this cable operates at a rated voltage of 0.6/1kV, making it ideally suited for low-voltage flexible applications across diverse industrial environments. The cable's unique flat profile and robust construction make it particularly well-suited for applications where traditional round cables would prove inadequate or impractical.

In Australia's industrial landscape, where harsh environmental conditions and demanding operational requirements are commonplace, the (N)GFLCGOEU-J has emerged as the preferred choice for engineers and maintenance professionals seeking a dependable EMC-shielded flat crane cable for moving machinery applications. Its versatility extends across mining operations, manufacturing facilities, port installations, and automated warehouse systems, where consistent performance under mechanical stress is non-negotiable.

The cable's design philosophy centres on providing superior electromagnetic compatibility (EMC) protection whilst maintaining the flexibility required for dynamic applications. This combination of features makes it an indispensable component in modern industrial infrastructure, particularly in environments where electromagnetic interference could compromise system integrity or operational safety.

Design and Construction Features

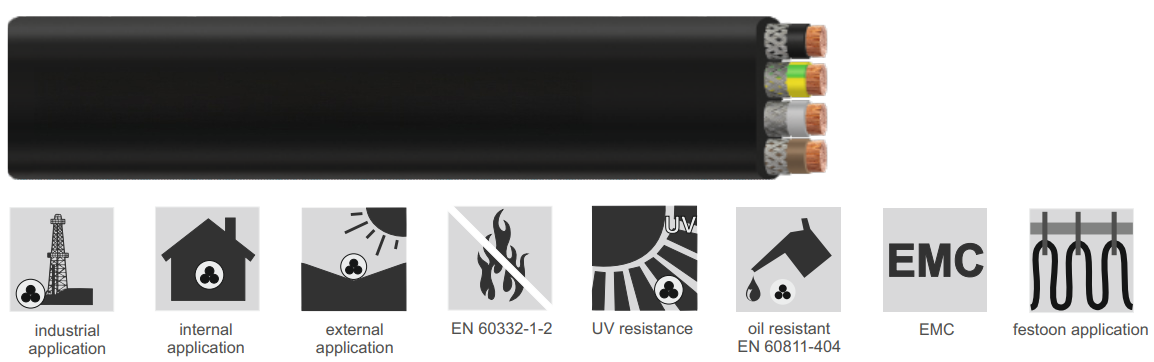

The (N)GFLCGOEU-J's construction follows the rigorous specifications outlined in DIN VDE 0250-809, ensuring consistency and reliability across all manufacturing batches. The cable's flat design represents a significant advancement over traditional round cable configurations, offering improved space utilisation and enhanced mechanical properties essential for festoon applications.

At the heart of this screened flat rubber cable lies a conductor system utilising plain copper conforming to DIN EN/IEC 60228 standards. For cross-sections up to 25mm², Class 6 finest stranded wires are employed, providing exceptional flexibility and fatigue resistance. For larger cross-sections of 35mm² and above, Class 5 fine stranded wires offer optimal balance between flexibility and current-carrying capacity. This graduated approach ensures that each cable configuration delivers optimal performance characteristics tailored to its specific application requirements.

The insulation system employs EPR compound type 3GI3, manufactured according to DIN VDE 0207-20 specifications. This advanced elastomeric compound provides excellent electrical properties whilst maintaining flexibility across the cable's entire operating temperature range. The core identification follows DIN VDE 0293-308 standards, ensuring consistent colour coding that facilitates installation and maintenance procedures.

Perhaps the most critical feature of this flexible flat cable with copper braid screen for EMI protection is its comprehensive screening system. The tinned copper wire braid provides 85% coverage, creating a highly effective electromagnetic shield that protects sensitive control circuits from external interference whilst preventing the cable itself from becoming a source of electromagnetic emissions. This level of EMC protection is essential in modern industrial environments where sensitive electronic equipment operates in close proximity to high-power machinery.

The outer sheath utilises heavy-duty rubber compound type 5GM3, manufactured to DIN VDE 0207-21 specifications. This black-coloured sheath incorporates inkjet marking for clear identification and provides exceptional resistance to mechanical damage, environmental degradation, and chemical attack. The rubber formulation has been specifically engineered to withstand the rigours of industrial environments whilst maintaining flexibility throughout the cable's service life.

Electrical and Thermal Performance

The electrical performance characteristics of the (N)GFLCGOEU-J position it as a premier choice among 1000V rated flat flexible cables for mobile applications. With a rated voltage of 0.6/1kV for AC systems, the cable provides reliable service under normal operating conditions whilst offering substantial safety margins for transient voltage conditions.

Maximum permissible operating voltages extend to 0.7/1.2kV for AC systems and 0.9/1.8kV for DC applications, providing flexibility for diverse electrical system configurations. This voltage capability, combined with the cable's robust insulation system, ensures reliable operation even under challenging electrical conditions commonly encountered in industrial environments.

The cable demonstrates exceptional dielectric strength, withstanding AC test voltages of 3.5kV applied for five minutes without degradation. This high-voltage testing protocol ensures that each cable meets stringent quality standards before leaving the manufacturing facility, providing end users with confidence in the product's electrical integrity.

Thermal performance represents another area where this high temperature crane cable excels. The maximum continuous conductor temperature of 90°C allows for high current density applications whilst maintaining safety margins appropriate for industrial environments. During short-circuit conditions, the cable can withstand conductor temperatures up to 250°C, providing crucial protection for downstream equipment and personnel safety.

These thermal characteristics make the cable particularly suitable for Australian industrial applications where ambient temperatures can be extreme and equipment duty cycles demanding. The cable's ability to maintain electrical integrity under these conditions ensures continuous operation and minimises the risk of unexpected failures that could result in costly downtime.

The combination of electrical and thermal performance characteristics positions the (N)GFLCGOEU-J as an optimal solution for applications requiring reliable power transmission under challenging conditions. Whether deployed in mining operations, manufacturing facilities, or logistics centres, the cable's electrical performance provides the foundation for safe and efficient industrial operations.

Mechanical and Installation Parameters

The mechanical properties of the (N)GFLCGOEU-J reflect its specialised design for dynamic applications, particularly as a flexible cable for dynamic applications in demanding industrial environments. The cable's flat profile contributes significantly to its mechanical performance, distributing stress more evenly across the cable structure compared to traditional round designs.

Bending radius requirements vary according to installation type, reflecting the cable's versatility across different application scenarios. For fixed installations where the cable height is up to 12mm, a minimum bending radius of 3 times the height (3xH) is specified, increasing to 4 times the height (4xH) for cables over 12mm in height. These conservative bending radii ensure long-term reliability in permanent installations whilst allowing for practical routing in confined spaces.

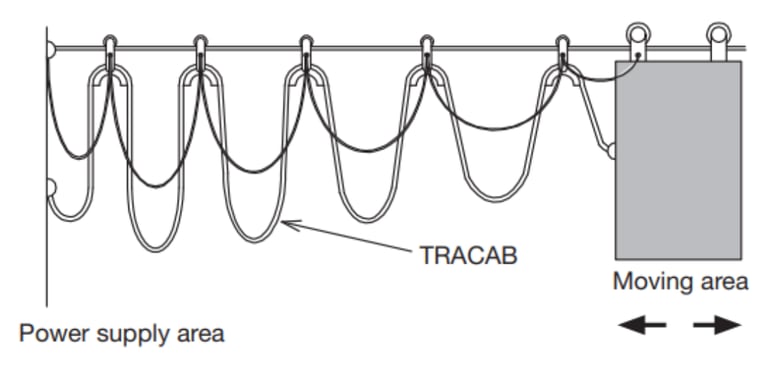

For flexible applications, including festoon systems where the cable experiences continuous movement, more conservative bending radii are specified. Cables up to 12mm in height require a minimum bending radius of 4xH, whilst larger cables require 5xH. These specifications ensure that the cable can withstand millions of bending cycles without degradation, making it an ideal reeling cable for cranes and similar applications.

The maximum tensile load rating of 15 N/mm² provides substantial margin for the mechanical stresses encountered in typical installations. This specification is particularly relevant for festoon applications where the cable's own weight, combined with acceleration forces during operation, can create significant tensile loads. The cable's construction ensures that these loads are distributed across the conductor cross-section without compromising electrical or mechanical performance.

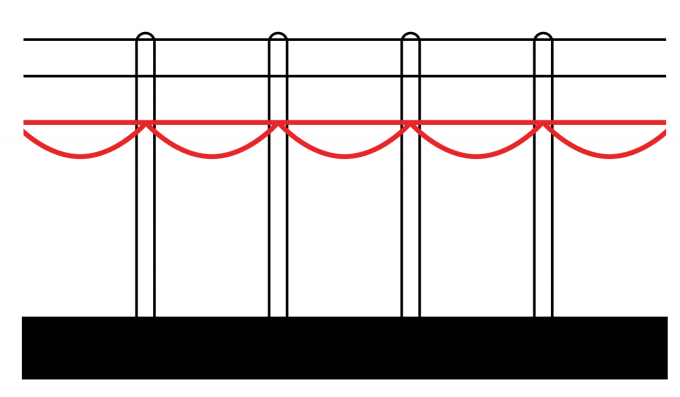

Festoon travel speeds up to 180 metres per minute are supported, making the cable suitable for high-speed automated systems common in modern manufacturing and logistics operations. This capability positions the (N)GFLCGOEU-J as a flat cable with high tensile strength for festoon trolleys operating in demanding industrial environments.

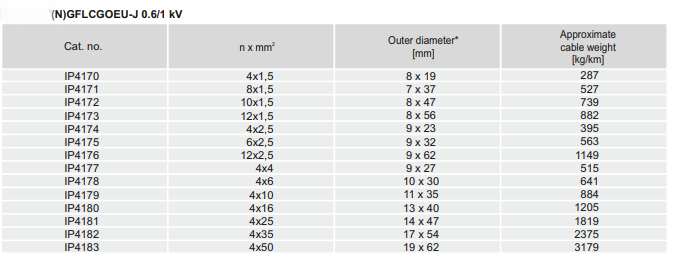

Cable dimensions and weights vary according to conductor configuration, with the flat profile providing space advantages over equivalent round cables. The precise dimensional control achieved during manufacturing ensures consistent performance and facilitates accurate system design. Approximate weights are provided for each cable configuration, enabling engineers to accurately calculate load requirements for festoon systems and support structures.

Environmental and Safety Properties

The environmental capabilities of the (N)GFLCGOEU-J establish it as a truly versatile UV and oil resistant crane cable for industrial outdoor use. The cable's operating temperature range extends from -40°C to +80°C for fixed installations, with festoon operation supported across a range of -30°C to +80°C. These specifications encompass the extreme temperature variations encountered across Australia's diverse climate zones, from tropical northern regions to temperate southern areas.

Oil resistance, certified to EN 60811-404 standards, ensures reliable operation in industrial environments where hydraulic fluids, lubricants, and other petroleum-based products are commonly encountered. This property is particularly valuable in mining applications, manufacturing facilities, and port operations where oil contamination is a constant concern.

Flame propagation resistance, verified according to EN 60332-1-2 standards, provides crucial safety protection in industrial environments. The cable's ability to resist flame spread helps contain potential fire incidents, protecting both personnel and equipment whilst maintaining critical system functionality during emergency conditions.

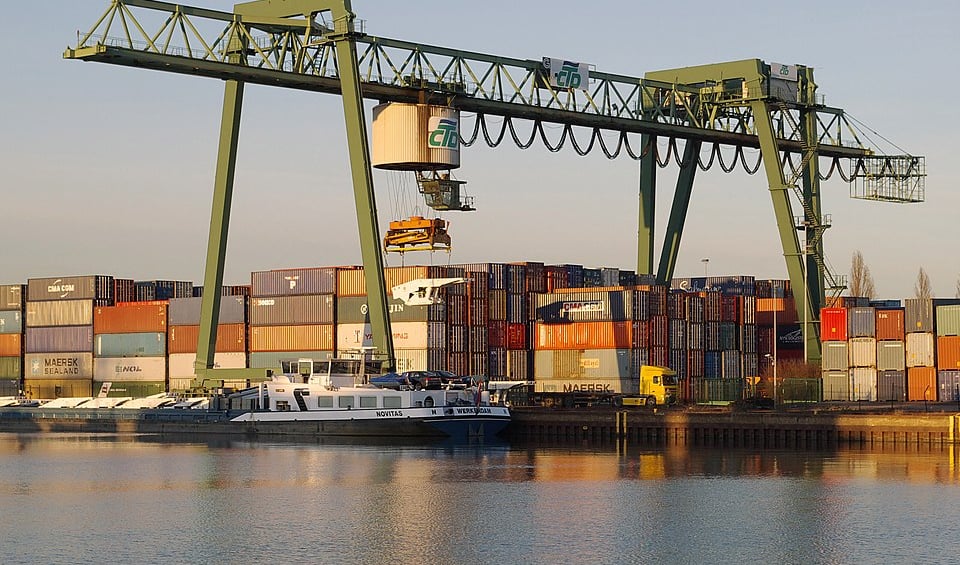

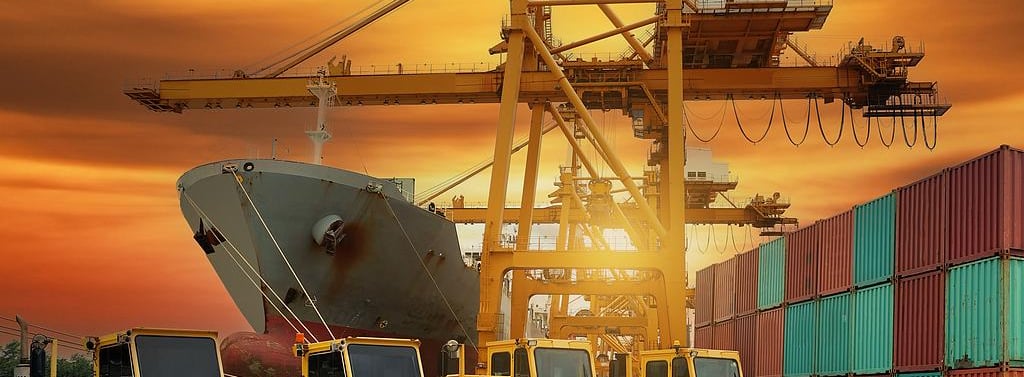

UV resistance enables reliable outdoor operation without degradation from solar radiation, making the cable suitable for port cranes, outdoor conveyor systems, and other exposed applications. Combined with ozone and moisture resistance, these properties ensure long-term reliability in Australia's harsh outdoor environments.

The cable's comprehensive regulatory compliance demonstrates its suitability for modern industrial applications. RoHS 2015/863/EU compliance ensures that hazardous substances are eliminated from the manufacturing process, supporting environmental sustainability objectives. LVD 2014/35/EU compliance confirms electrical safety for low-voltage applications, whilst CPR 305/2011 compliance addresses construction product requirements.

EMC compatibility represents a critical feature for modern industrial installations where sensitive electronic equipment operates alongside high-power machinery. The cable's screening system provides effective protection against electromagnetic interference, ensuring that control systems, sensors, and communication equipment can operate reliably even in electrically noisy environments.

These environmental and safety properties combine to create an EMC-compliant cable that provides reliable service across diverse industrial applications whilst meeting the stringent safety and environmental standards required in modern Australian industrial operations.

Applications and Industry Use Cases

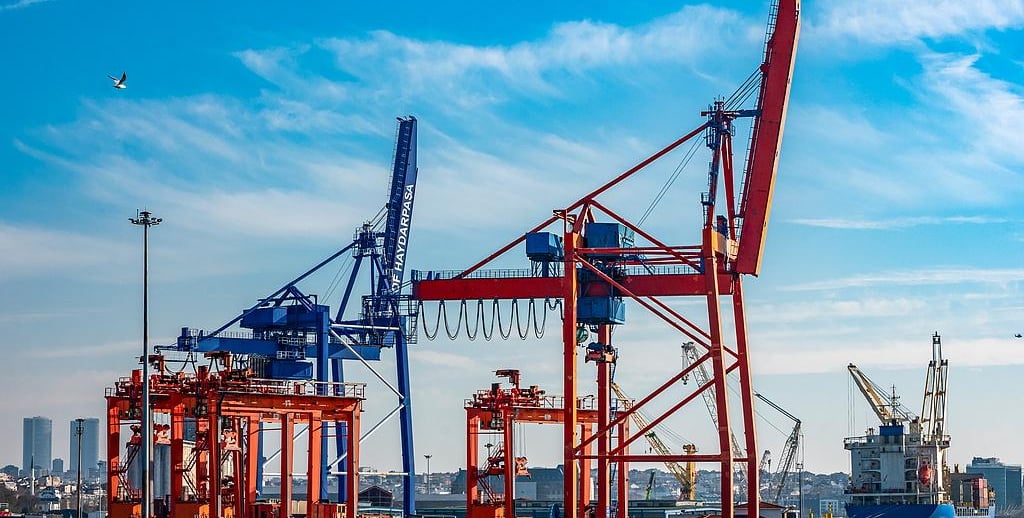

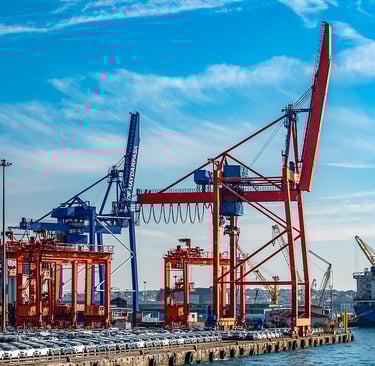

The (N)GFLCGOEU-J serves as an essential crane cable across numerous industrial sectors, with its unique combination of properties making it particularly suitable for demanding applications. In crane and hoist installations, the cable provides reliable power transmission whilst withstanding the mechanical stresses associated with continuous movement and varying load conditions.

Trolley systems in logistics and manufacturing operations benefit from the cable's flat profile and high flexibility, enabling efficient power supply to moving equipment whilst minimising space requirements. The cable's ability to operate reliably in festoon configurations makes it an ideal choice for automated warehouse systems, where consistent performance is essential for maintaining operational efficiency.

Moving machine components in automated systems rely on the cable's exceptional fatigue resistance and EMC protection. In manufacturing environments where precision and reliability are paramount, the (N)GFLCGOEU-J provides the electrical integrity required for sensitive control systems whilst withstanding the mechanical demands of continuous operation.

However, certain applications are not recommended for this cable type. Continuous torsional stress applications, such as those involving cable reels or rotating machinery connections, require different cable designs optimised for torsional loads. Similarly, applications involving multi-directional bending, where the cable must flex in multiple planes simultaneously, exceed the design parameters of this flat cable configuration.

The cable's modular design approach enables custom configuration with various conductor sizes and core counts, allowing engineers to specify optimal solutions for specific applications. This flexibility ensures that the cable can be tailored to meet exact requirements whilst maintaining the performance characteristics that make it suitable as a moving machine power cable.

Industrial sectors across Australia have adopted the (N)GFLCGOEU-J for critical applications where reliability cannot be compromised. Mining operations utilise the cable for conveyor systems and material handling equipment, whilst manufacturing facilities rely on it for automated production lines and robotic systems. Port installations benefit from its environmental resistance and EMC protection in container handling operations.

The cable's proven performance in these demanding applications has established it as the preferred choice for engineers seeking a flexible flat screened cable for industrial cranes and festoon systems. Its combination of electrical performance, mechanical durability, and environmental resistance provides the foundation for reliable industrial operations across diverse Australian industries.

Conclusion: Why Choose Feichun® (N)GFLCGOEU-J?

The Feichun® (N)GFLCGOEU-J represents the culmination of advanced engineering and manufacturing expertise, delivering a cable solution that meets the most demanding requirements of modern industrial applications. Its durable construction and proven reliability in mechanically demanding environments make it an investment in long-term operational efficiency and safety.

Superior EMC protection ensures that sensitive electronic systems can operate reliably even in electrically challenging environments, protecting valuable equipment investments whilst maintaining operational continuity. This electromagnetic compatibility is increasingly critical as industrial systems become more sophisticated and interconnected.

The cable's exceptional service life, achieved through flame, oil, and weather resistance, provides outstanding value through reduced maintenance requirements and extended replacement intervals. When combined with the cable's proven performance in Australian industrial conditions, this longevity ensures optimal return on investment for industrial operators.

Available in multiple configurations with customisation options, the Feichun® (N)GFLCGOEU-J can be tailored to meet specific industrial requirements whilst maintaining the performance characteristics that have made it the preferred choice for demanding applications. This flexibility ensures that engineers can specify optimal solutions without compromising on quality or reliability.

Looking for a dependable flat reeling cable for your crane or festoon application? Choose Feichun® (N)GFLCGOEU-J for guaranteed performance, certified compliance, and engineered longevity that delivers reliable service in Australia's demanding industrial environments.
