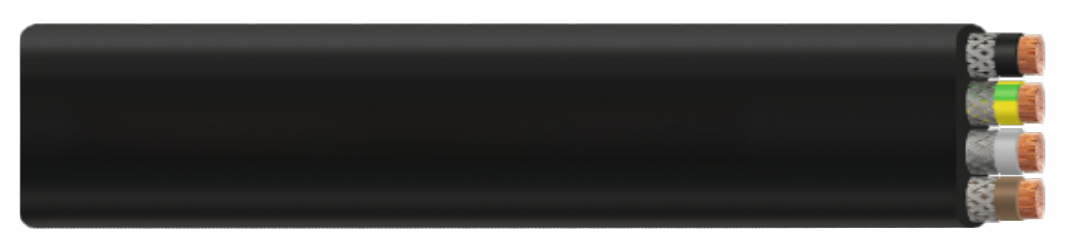

(N)GFLCGOEU-J Screened Flat Rubber Cable 0.6/1kV (DIN VDE 0250-809)
EMC-protected flexible cable for single-plane bending applications - Indoor/outdoor use
$20.00
Application: |
These cables are designed for connection of moving parts of machine tools, conveyors and large equipment, when the cables are subjected to bending in only one plane e.g. festoon systems. Suitable for use in dry, damp and wet rooms as well as outdoors. Individual screening ensures protection against external electromagnetic interferences. In case of high mechanical stresses, e.g. high dynamic tensile forces, permissible loads are to be determined on a case-by-case basis. |
Thermal parameters:
Ambient temperature:
fixed installation: -40 °C to 80 °C
festoon operation: -30 °C to 80 °C
Max. permissible conductor temp.: 90 °C
Max. short-circuit temp. at conductor: 250 °C
Mechanical parameters:
Max. tensile load on conductor: 15 N/mm²
Trolley travel speed: up to 180 m/min
Conductors: plain copper acc. to DIN EN/IEC 60228:
- ≤ 25 mm², class 6 – finest stranded wires
- ≥ 35 mm², class 5 – fine stranded wires
Insulation:EPR compound type 3GI3 acc. to DIN VDE 0207-20, core identification acc. to DIN VDE 0293-308
Screen: tinned copper wire braid, braiding coverage 85%
Outer sheath: heavy duty rubber compound type 5GM3 acc. to DIN VDE 0207-21; colour: black, inkjet marking
