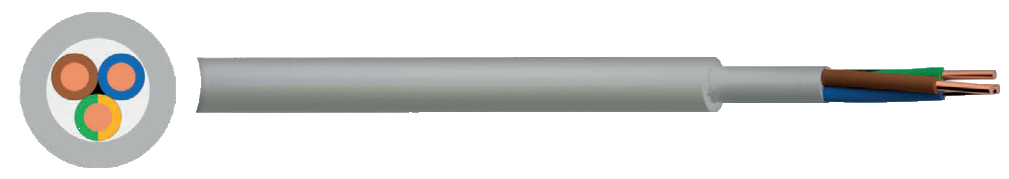

NHXMH-J/O Cable
These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster; not for underground installation.
$1.00
APPLICATION
These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster; not for underground installation. For installations where fire, smoke emission and toxic fumes create a potential risk to life and equipment.
CHARACTERISTICS
Voltage Rating (Uo/U) 300/500V
Temperature Rating
-5ºC to +70ºC
Minimum Bending Radius
1.5mm2 to 10mm2 : 4x overall diameter (red. to 2x OD at termination) 16mm2 and above: 5 x overall diameter (red. to 3x OD at termination)
CONSTRUCTION
Conductor
1.5mm2 to 10mm2 : Class 1 solid Copper
16mm2 to 25mm2 : Class 2 stranded Copper
Insulation
XLPE (Cross-Linked Polyethylene) Type 2XI1
Filler
Halogen-free compound
Sheath
Halogen-free thermoplastic polymer compound Type HM2
Core Identification
2 core: Blue Brown
3 core: ● Blue ● Brown e Green/Yellow
4 core: ● Brown ● Black Grey eGreen/Yellow
5 core: ● Brown ● Black Grey ●Blue eGreen/Yellow
7 core and above: number coded
Outer Sheath Colour
Grey
