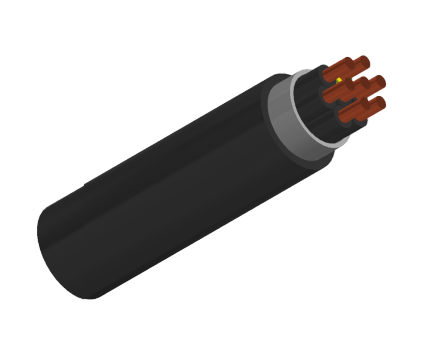

NHXMH/(N)HXMH(St)
Cable
Application and Description
NHXMH cable is halogen free intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster; not for underground installation. NHXMH-J/O are especially used in buildings with a high concentration of persons or valuable property, where improved fire characteristics are needed. This product conforms to 73/23/EW G directive (low voltage directive) CE.
Standard and Approval
VDE 0250 (part 214), VDE 0482 (part 266-2-4, test type C), IEC 60228; IEC 60332-3-22; IEC 60754-1; IEC 60754-2, IEC 61034

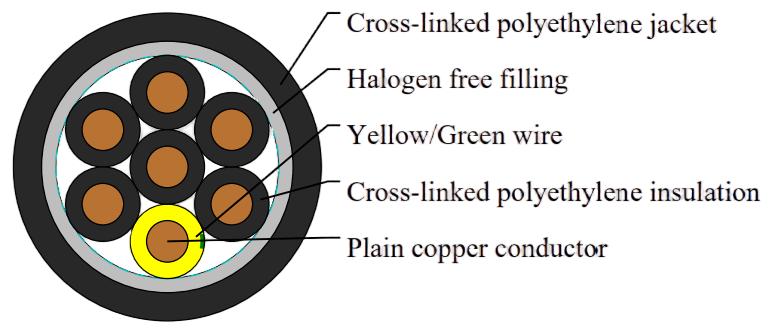

Cable Construction
Plain copper conductor, single conductor up to 10 mm² multi-conductor from 16-35 mm² |
To DIN VDE 0295 cl. 1 or 2, BS 6360 cl. 1 or 2 and IEC 60228 cl. 1 or 2 |
Cross-linked polyethylene compound insulation 2XI1 to DIN VDE 0207 part 22 |
Color coded to DIN VDE 0293-308 |
Green-yellow grounding (3 conductors and above) |
Halogen free filling compound (not for single core cables) |
Flame-retardant, halogen free polyethylene compound jacket HM2 according to DIN VDE 0207 part 2 |
Technical Characteristics
Working voltage | 300/500 volts |
Test voltage | 2000 volts |
Minimum bending radius | single conductor 15 x Ø |
Minimum bending radius | multi conductor 12 x Ø |
Flexing Temperature | -5º C to +50º C |
Fixed installation temperature | - 30º C to +70º C |
Short circuit temperature | +250º C |
Flame-retardant | to DIN VDE 0482 part 266-2/HD 405.3/BS 4066 PT3/EN 50266-2/IEC 60332-3 |
Low corrosiveness of combustion gases | to DIN VDE 0482 part 267/BS 6425 PT2/EN 50267-2-2/IEC 60754-2 |
Halogen-free | to DIN VDE 0482 part 267/BS 6425 PT1/EN 50267-2-1/IEC 60754-1 |
Smoke density | to DIN VDE 0482 part 268/HD 606/BS 7622 PT1,PT2/EN 50268-1,-2/IEC 61034-1,-2 |
Insulation resistance | >100 MΩ x km |
