Not All 6/10kV Flat Reeling Cables Handle Gantry Crane Duty — Why PROTOLON(FL) (N)TSFLCGEWOEU Performs Better

Introduction: The Specialized Challenge of Flat Reeling Cables in High-Speed Gantry Crane Operations

Every working day across Australian container ports and heavy industrial facilities, gantry cranes operate under demanding mechanical conditions that test cable systems relentlessly. A gantry crane moves heavy container loads horizontally across a terminal at high speed, the flat reeling cable subjected to continuous tensile forces while navigating around pulleys and guide systems. A container handling crane hoists loads vertically while simultaneously moving laterally, the flat cable experiencing complex combinations of tensile, bending, and rotational stress. An excavator or large mobile equipment operates in harsh mining or industrial environments, its flat power cable subjected to repeated mechanical stress and environmental exposure.

These gantry crane and mobile equipment applications place specialized demands on flat reeling cables that differ fundamentally from round cables. The flat geometry enables space-efficient installation and better distribution of electrical current. However, flat cables experience different mechanical stress patterns—the broad flat surfaces concentrate stress differently than round cables, requiring specialized engineering to prevent premature failure.

Yet most Australian industrial operators don't appreciate the specialized engineering that separates adequate flat cables from cables specifically designed for gantry crane duty. They specify standard 6/10kV flat cables, expecting adequate performance. The reality is harsher: cables engineered without specific consideration for gantry crane mechanical stress fail within 18–24 months, creating recurring maintenance costs and unexpected production disruptions.

The financial consequences are severe. A flat cable failure during peak gantry crane operations halts material handling. Equipment sits idle. Work backlogs accumulate. The cascading costs from a single cable failure can exceed $60,000–$140,000 when direct replacement, emergency labour, and operational disruption are totalled.

Yet sophisticated Australian port and industrial operators who have transitioned to purpose-engineered flat cables specifically designed for gantry crane duty document dramatic improvements: cable failures decrease by 80–85%, service life extends from 18–24 months to 48–60+ months, system reliability improves measurably, and total cost of ownership improves substantially.

The Evolution Toward Purpose-Built Flat Cable Engineering for Gantry Systems

Experienced Australian crane operators have learned through expensive experience that flat cable selection directly impacts operational reliability and financial performance. They understand that cables engineered specifically for gantry crane mechanical stress and flat geometry perform fundamentally differently from standard flat cables designed without consideration for dynamic reeling applications.

Modern gantry-optimised flat reeling cables represent decades of engineering experience with the specific failure modes and mechanical demands of flat cables in high-speed dynamic crane applications. They're designed to deliver robust medium voltage power while surviving the relentless mechanical stress of continuous gantry crane operation.

Understanding Gantry Crane Flat Cable Demands: Why Specialised Engineering Matters

To appreciate why gantry crane applications demand purpose-engineered flat cables, we need to understand the unique stresses these systems create.

The Specialized Mechanical Reality of Gantry Crane Flat Cable Operations

A flat medium voltage cable serving gantry cranes and mobile equipment experiences stresses that exceed standard flat cable design parameters:

• Specialized flat geometry stress patterns: The flat broad surface concentrates mechanical stress differently than round cables. The flat conductor arrangement creates uneven stress distribution if not engineered specifically for this geometry.

• Continuous high-frequency reeling cycles: Gantry cranes might complete 100–300 reeling cycles daily. Over a year, that's 36,500–109,500+ complete stress cycles under the specific stresses of flat cable reeling.

• Roller compression stress: As flat cables wind around reeling drums and navigate over pulleys, the broad flat surface experiences roller compression stress that differs from round cable stress patterns.

• Dynamic acceleration and deceleration forces: Gantry cranes accelerate rapidly and decelerate abruptly. These dynamic force changes create tensile spikes exceeding static loading calculations.

• Multidirectional movement stress: Gantry cranes move horizontally while hoisting vertically and rotating. The flat cable experiences complex three-dimensional stress patterns.

• Environmental exposure: Australian ports and industrial sites expose flat cables to salt spray, intense UV radiation, temperature extremes, and oils/grease.

• Continuous operational intensity: Modern gantry systems operate 24/7 at maximum intensity. Cables must maintain reliability under relentless stress with virtually no recovery periods.

Standard flat cables engineered without specific consideration for gantry crane mechanical stress lack the structural optimisation to withstand this combined environment. They fail within 18–24 months—far short of the 5–7 year service life that sophisticated operators expect.

Why Standard Flat Cables Fail Under Gantry Crane Stress

Many Australian industrial facilities attempt to specify standard 6/10kV flat cables for gantry crane applications, reasoning that adequate voltage rating and current capacity should ensure performance. This logic fails because standard cables aren't optimised for the combination of flat geometry stress patterns, dynamic mechanical stress, and harsh environmental exposure.

The consequences are predictable:

Uneven Stress Distribution: The flat parallel core arrangement in standard cables doesn't optimally distribute stress across the flat geometry. Conductor strands in outer positions experience disproportionate stress, leading to fatigue failure.

Insulation Cracking: Insulation degrades from being repeatedly stressed beyond design limits by the concentrated stress of flat geometry. Micro-cracks develop. Moisture penetrates.

Sheath Degradation: The flat sheath experiences roller compression and abrasion from reeling systems and guide mechanisms. Tears develop. Environmental exposure penetrates.

Roller Crushing and Flattening: Standard flat cables can deform under roller pressure, creating stress concentrations that accelerate internal degradation.

Why Purpose-Built Gantry-Optimised Flat Cables Perform Differently

Cables engineered specifically for gantry crane flat cable applications address every identified limitation by optimising every element specifically for the stress patterns of flat geometry combined with dynamic mechanical stress. Rather than making compromises, they design for genuine gantry-optimised performance.

The result is transformative: cables that sustain hundreds of thousands of reeling cycles without conductor fatigue, maintain structural integrity despite roller compression, and deliver reliable service life 3–4 times longer than standard flat cables.

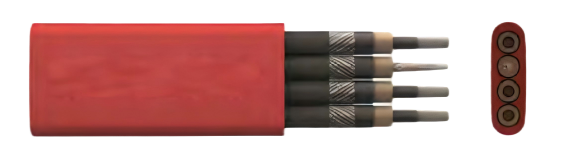

PROTOLON(FL) (N)TSFLCGEWOEU 6/10kV: Purpose-Engineered for Gantry Crane Flat Cable Excellence

PROTOLON(FL) represents the pinnacle of flat medium voltage reeling cable engineering specifically designed for gantry crane applications. This isn't a standard flat cable adapted for gantry use—it's a purpose-designed system engineered from conception for the extreme mechanical demands of high-speed gantry crane operations.

The model designation encodes the engineering specificity:

• PROTOLON(FL): "PROTOLON with Flat geometry optimisation"—denoting medium voltage cable engineered specifically for flat applications

• (N)TSFLCGEWOEU: Specifying flat core configuration with three-core plus earth design optimised for gantry duty

• 6/10kV: Rated for 6000/10000 volt operation suitable for heavy-duty industrial equipment

This cable represents the convergence of practical experience from thousands of gantry crane installations with advanced electrical engineering specifically designed for flat cable geometry stress optimization and extreme mechanical durability.

Core Technical Advantages

Fine-Stranded Tinned Copper Conductors

The power conductors use pure copper in a fine-stranded configuration optimised for flat cable geometry. The tinning provides corrosion resistance essential for port environments with salt spray exposure.

The fine-stranding combined with the optimised flat conductor arrangement distributes electrical current and mechanical stress evenly across the flat geometry, preventing stress concentration that occurs in standard flat cables. In gantry crane service with 36,500–109,500+ annual flex cycles, this conductor design is transformative. Standard flat cables experience conductor fatigue within 18–24 months. This engineered design maintains integrity throughout years of gantry operation.

PROTOLON High-Performance EPR Insulation

The insulation uses specialised ethylene propylene rubber (EPR) formulation optimised for medium voltage applications with flat geometry stress patterns. The PROTOLON specification provides:

• Superior electrical strength: Maintains consistent dielectric performance despite the concentrated stress patterns specific to flat geometry

• Exceptional mechanical flexibility: Resists cracking and degradation despite thousands of reeling cycles and roller compression

• Thermal performance: Conducts current reliably at maximum rated 90°C continuous operation

• Environmental resistance: Resists salt spray, UV radiation, oils, and moisture exposure inevitable in harsh industrial environments

• Stress concentration prevention: The formulation is engineered to handle the uneven stress distribution inherent in flat cable geometry

Semiconductive Electrical Field Control Layers

The cable includes sophisticated electrical field control:

• Inner semiconductive layer: Controls electrical field stress distribution within the flat geometry insulation, preventing field concentration under combined thermal and mechanical stress

• Outer semiconductive layer: Provides smooth electrical field grading from insulation to outer sheath

This field control is critical for medium voltage cables in flat geometry where stress distribution is more complex than round cables.

Parallel Flat Core Arrangement

The three main conductors arranged in flat parallel configuration are engineered specifically for gantry crane duty:

• Balanced stress distribution: The flat arrangement ensures that mechanical stress is distributed evenly across all conductor positions rather than concentrating on outer strands

• Optimised reeling performance: The flat geometry slides smoothly over reeling drums and around pulleys without creating mechanical deformation that would affect round cables

• Efficient space utilisation: The flat design enables more compact installation compared to round cables of equivalent current capacity

• Reduced internal stress: The parallel arrangement prevents core rotation and shifting that concentrates stress

Split Earth Conductors

The split earth configuration positioned symmetrically around the main conductors provides:

• Improved electrical safety: Dual return paths ensure consistent grounding

• Balanced mechanical stress: The split earth arrangement contributes to even stress distribution

• Current balance: Multiple earth positions prevent current concentration

PROTOFIRM Heavy-Duty Outer Sheath

The outer sheath uses a robust formulation engineered specifically for gantry crane environments:

• Superior abrasion resistance: Resists wear from reeling drum contact and guide system friction

• Roller compression resistance: Withstands the mechanical crushing force of reeling drums without permanent deformation

• Tearing and puncturing resistance: Survives rough handling and contact with sharp equipment edges

• Oil and chemical resistance: Doesn't swell or degrade when exposed to industrial oils and solvents

• Environmental durability: Resists salt spray, UV radiation, temperature extremes, and ozone exposure

• Weather resistance: Maintains integrity despite Australian coastal and inland environmental extremes

Performance Specifications for Gantry Crane Excellence

The cable is engineered specifically for the mechanical and electrical demands of gantry crane operations:

Tensile Load Capacity: 15 N/mm²

Provides mechanical robustness supporting the cable's own weight during long gantry spans and providing safety margin against dynamic loading.

High-Speed Travel Capability: Up to 120 m/min

The cable maintains electrical and mechanical integrity at gantry and container crane speeds up to 120 metres per minute—suitable for modern high-speed gantry operations.

Optimised Bending Performance

The cable is engineered for continuous gantry crane duty where repeated bending is the defining operational characteristic. The flat parallel conductor arrangement and PROTOLON insulation enable the cable to sustain tens of thousands of annual bending cycles without conductor fatigue.

Reversed Bending Test Validation

The cable is validated through rigorous reversed bending tests, confirming that it maintains electrical and mechanical integrity despite the repeated back-and-forth bending that characterizes gantry crane reeling.

Reeling Test Validation

Field reeling tests confirm that the cable performs reliably when wound and unwound from reeling drums, maintaining structural integrity and electrical performance despite the mechanical stress of actual reeling operations.

Temperature Range: –35°C to +80°C (Flexible Operation)

The cable maintains consistent performance across this full range, covering all realistic Australian operating conditions. Even in cold overnight conditions or hot summer days, the cable performs reliably.

Real-World Application: Australian Container Port Case Study

To understand the genuine operational and financial impact of selecting purpose-engineered gantry-optimised flat cables, consider the experience of an Australian container port upgrading its gantry crane infrastructure.

The Challenge: Managing Cable Reliability in High-Intensity Gantry Crane Operations

A major Australian container port operated multiple gantry cranes serving container handling operations. The cranes operated continuously during peak periods, with flat reeling cables subjected to extreme dynamic stress—rapid acceleration to maximum speed, continuous tensile forces during load movement, emergency stops, and directional changes.

The facility was using standard 6/10kV flat cables. The cables experienced recurring failures:

• Cable failures occurred approximately 4–6 times annually across the gantry crane fleet

• Failures typically occurred during peak operational periods, maximising disruption impact

• Each cable failure forced immediate crane shutdown and emergency maintenance

• Cable replacement required specialist technicians and involved extended downtime

• Annual cable replacement and emergency maintenance costs exceeded $75,000–$120,000

Port management recognised that cable reliability was limiting gantry crane availability and incurring substantial costs.

The Solution: Transition to Gantry-Optimised Flat Cables

In 2023, the port undertook a strategic upgrade of all gantry crane reeling cables. Rather than continuing to experience failures every 2–3 months, they transitioned all gantry cranes to cables specifically engineered for extreme-duty flat cable operation at maximum intensity.

The upgrade involved:

• Replacement of all gantry crane flat reeling cables with gantry-optimised engineered cables

• Updated cable routing optimising mechanical performance

• Installation of new reeling drum systems optimised for the upgraded cables

• Enhanced electrical termination and safety systems

Capital investment for complete system upgrade: approximately $190,000–$280,000 for materials and labour.

The Results: Reliability, Operational Performance, and Financial Justification

Over the 12-month period following complete implementation (mid-2023 to mid-2024), the container port documented measurable improvements:

Cable Reliability

• Cable failures decreased from 4–6 annually to 0–1 failure across the entire gantry crane fleet

• Cable service life extended from 18–24 months to 48–60+ months

• Gantry crane availability improved dramatically—fewer emergency maintenance interruptions

• Zero unplanned downtime due to cable failure

Operational Performance

• Gantry crane fleet operated more consistently at design capacity

• Port throughput increased measurably as crane availability improved

• Operators no longer had to work around anticipated cable failures

• Port reliability reputation improved, supporting customer relationships

Financial Outcome

The financial case was compelling:

• Capital investment: approximately $235,000

• Annual reduction in cable failure costs: approximately $60,000–$90,000

• Improved port throughput from reliable gantry operations: approximately $25,000–$45,000 annually

• Total annual benefit: approximately $85,000–$135,000

• Payback period: approximately 20–28 months

Importantly, this analysis doesn't account for improved port reputation or the benefit of eliminating unexpected gantry crane failures that disrupt shipping schedules.

Port-Wide Commitment

Based on demonstrated results, the port committed to gantry-optimised flat cables as standard specification for all gantry crane systems. The port's operational improvements became recognised within the maritime industry as a case study in the value of proper flat cable engineering for gantry crane applications.

This case study demonstrates that for ports and industrial facilities, cable selection is a strategic infrastructure decision directly affecting operational reliability and financial performance.

Why Australian Gantry Crane Systems Demand Purpose-Engineered Flat Cable Design

Australian ports and industrial facilities operate under demanding conditions. Multiple factors support the transition toward purpose-engineered gantry-optimised flat cables:

Relentless Operational Intensity Demands Specialized Design

Modern Australian gantry cranes operate 24/7 at maximum intensity. Cables must maintain reliability under relentless stress without recovery periods. Standard flat cables designed without specific consideration for gantry crane intensity fail. Purpose-engineered cables deliver the durability this intensity requires.

Flat Geometry Stress Patterns Require Specialized Engineering

The flat parallel conductor arrangement creates stress distribution patterns fundamentally different from round cables. Cables must be engineered specifically for these flat geometry stress patterns or they fail prematurely.

Harsh Coastal and Industrial Environmental Exposure

Australian ports expose cables to salt spray, intense UV radiation, temperature extremes, and mechanical wear. Cables engineered specifically for port environments maintain integrity despite years of harsh exposure.

Economic Pressure for Maximum Equipment Uptime

Australian ports compete globally. Equipment availability directly impacts competitive performance. Cables that fail frequently undermine competitiveness. Gantry-optimised cables that maintain reliability support competitive performance.

Common Gantry Crane Flat Cable Failure Modes and How Specialised Design Prevents Them

Understanding failure modes illuminates why specialized flat cable engineering matters.

Uneven Conductor Stress Distribution in Flat Geometry

The Problem: Standard flat cables don't optimally distribute stress across the flat conductor arrangement. Outer conductor strands experience disproportionate stress, leading to fatigue failure within 18–24 months.

How Specialised Design Prevents It: The engineered flat conductor arrangement distributes stress evenly across all conductor positions. The cable sustains tens of thousands of annual stress cycles without conductor fatigue.

Roller Crushing and Structural Deformation

The Problem: Standard flat cables deform under roller pressure from reeling drums and pulleys. Deformation creates stress concentrations that accelerate internal degradation.

How Specialised Design Prevents It: The PROTOFIRM outer sheath and optimised internal structure resist roller crushing. The cable maintains structural integrity despite mechanical compression from reeling systems.

Insulation Cracking from Flat Geometry Stress Concentration

The Problem: Insulation in standard flat cables develops cracks from concentrated stress inherent in flat geometry. Moisture penetrates. Short circuits occur.

How Specialised Design Prevents It: The PROTOLON insulation is engineered specifically for flat geometry stress patterns. The semiconductive field control prevents stress concentration. Insulation maintains integrity despite thousands of annual stress cycles.

Environmental Degradation and Sheath Wear

The Problem: Standard flat cable sheaths degrade rapidly from environmental exposure and mechanical wear.

How Specialised Design Prevents It: The PROTOFIRM outer sheath engineered for harsh industrial environments resists salt spray, UV radiation, oils, and mechanical wear. The sheath maintains protective function throughout years of gantry operation.

Selecting Gantry-Optimised Flat Cables: A Decision Framework for Australian Operators

For ports and industrial facilities evaluating gantry crane cable systems, several factors deserve consideration:

Assess Your Gantry Crane Duty Cycle Intensity

Understand your actual operational demands. How many gantry cycles daily? What speeds? Heavy-duty operations require cables engineered specifically for this intensity.

Evaluate Environmental Exposure

Assess your facility's environmental conditions. Coastal salt spray? Temperature extremes? Mechanical wear from reeling systems? Select cables engineered for your specific conditions.

Calculate Total Cost of Ownership

While gantry-optimised flat cables cost 35–45% more than standard flat cables, total cost of ownership—accounting for extended service life (3–4× longer), reduced failure rates (80–85% reduction), and improved operational reliability—clearly favours gantry-optimised engineered cables.

The Australian port case study demonstrates payback within 20–28 months. For facilities planning 5–10 year operational lifecycles, cumulative savings exceed $300,000–$500,000.

Engage with Technical Specialists

Rather than selecting cables based solely on voltage rating and price, engage with suppliers who understand gantry crane-specific and flat cable requirements. Technical expertise provides value beyond the cable itself.

Technical Specifications for Gantry Crane Excellence

When evaluating gantry-optimised flat cables, several specifications deserve careful attention.

The rated voltage of 6/10kV establishes the electrical working envelope for gantry crane equipment.

The fine-stranded tinned copper conductors confirm optimised conductor design for flat geometry and mechanical durability.

The PROTOLON insulation confirms formulation specifically for medium voltage flat cable applications.

The parallel flat conductor arrangement confirms optimization for flat geometry stress distribution.

The PROTOFIRM outer sheath confirms engineered design for gantry crane environments.

The tensile capacity of 15 N/mm² confirms suitability for heavy gantry crane loads.

The travel speed capability of 120 m/min confirms suitability for modern high-speed gantry systems.

The reversed bending and reeling test validation confirms genuine gantry crane suitability.

Conclusion: Gantry-Optimised Flat Cables as Essential Port Infrastructure

The selection of flat cables for gantry crane applications represents more than a procurement decision. It's a strategic infrastructure choice affecting operational reliability, crane availability, and financial performance.

Modern gantry-optimised flat cables—engineered specifically for continuous high-speed reeling, dynamic mechanical stress, and harsh environmental exposure—enable Australian port and industrial operators to:

• Operate with greater reliability: Fewer cable failures mean consistent gantry crane availability

• Achieve higher throughput: Better cable reliability enables maximum equipment utilisation

• Reduce operational costs: Longer cable service life and fewer failures reduce maintenance expenses

• Support competitive performance: Reliable gantry cranes enable the operational excellence modern markets demand

For Australian port and industrial operators, the transition to gantry-optimised flat cables represents the path toward modern, high-performance gantry crane infrastructure.

Expert Summary

Why Gantry-Optimised Flat Medium Voltage Reeling Cables Have Become Essential Infrastructure for Reliable Australian Port and Industrial Operations

After comprehensive analysis of flat cable performance under gantry crane stress conditions, operational data from Australian ports and industrial facilities, and the economics of cable selection for demanding dynamic applications, several decisive conclusions emerge:

Specialised Flat Cable Design Directly Addresses Gantry Crane Failure Modes

Flat cables engineered specifically for gantry crane mechanical stress and flat geometry stress patterns consistently outperform standard flat cables. The design differences—optimised flat conductor arrangement, PROTOLON insulation engineered for flat geometry, semiconductive field control, parallel flat core design, and PROTOFIRM outer sheath—directly address the unique stresses of gantry crane operations.

The Australian port case study documents consistent performance improvements: 80–85% reduction in cable failures, extended service life from 18–24 months to 48–60+ months, elimination of unexpected crane shutdowns.

Conductor Fatigue from Uneven Stress Distribution in Flat Geometry Is Primary Failure Mode

Standard flat cables fail because their conductor arrangement doesn't optimally distribute stress across the flat geometry. Outer conductor positions experience disproportionate stress, leading to rapid fatigue. This failure mode is prevented only through flat conductor design specifically optimised for even stress distribution.

Roller Compression Stress Requires Specialized Sheath Design

Gantry crane reeling systems subject flat cables to roller compression forces that round cables don't experience. Standard sheaths deform under this pressure. Specialized sheaths engineered for gantry crane roller compression resist deformation and maintain structural integrity.

Flat Geometry Field Control Is Essential for Medium Voltage Reliability

Medium voltage insulation in flat cables experiences more complex electrical stress distribution than round cables due to the flat geometry. Proper semiconductive field control is essential for preventing stress concentration.

Economic Justification Is Compelling Over Equipment Lifecycle

While gantry-optimised flat cables cost 35–45% more than standard flat cables, total cost of ownership—accounting for extended service life (approximately 3–4× longer), dramatically reduced failure rates (80–85% reduction), improved operational reliability—clearly favours gantry-optimised engineered cables. Payback typically occurs within 20–28 months.

For facilities planning 5–10 year operational lifecycles, cumulative financial advantages exceed $300,000–$500,000.

Supply Chain Maturity Enables Widespread Adoption

Gantry-optimised flat cables engineered for dynamic applications are available from multiple suppliers with competitive pricing. Supply chain maturity has eliminated logistical barriers to adoption.

Operational Excellence Depends on Cable Reliability

For gantry crane operations where equipment reliability is essential to competitive performance, proper flat cable engineering ensuring reliable power transmission under extreme stress is essential.

Technology Is Proven and Field-Validated

Gantry-optimised flat cables have been deployed in demanding port and industrial operations across the developed world for more than a decade. Designs are proven, reliable, and well-understood. Operational risks from technological immaturity are negligible.

Recommendation

For Australian port and industrial operators deploying gantry crane systems, the selection of flat cables engineered specifically for gantry crane mechanical stress and flat geometry optimization is not optional—it represents best practice for reliable infrastructure.

Facilities operating systems with standard flat cables in gantry crane duty should prioritise transition to gantry-optimised engineered cables as part of capital planning. Documented financial returns and operational benefits justify the investment.

For new gantry crane installations or equipment upgrades, specifying gantry-optimised flat cables from inception is the economically rational, operationally optimal choice. The additional cable cost is typically recovered within 20–28 months through operational benefits.

The era of attempting to operate high-speed gantry crane systems with standard flat cables has ended for professionally managed, competitive ports and industrial facilities. Gantry-optimised flat cables—combining fine-stranded tinned copper conductors optimised for flat geometry, PROTOLON insulation with semiconductive field control, parallel flat conductor arrangement for even stress distribution, and PROTOFIRM outer sheath—represent the infrastructure standard for 21st-century gantry crane operations.

For Australian port and industrial operators seeking competitive advantage through operational excellence and infrastructure leadership, the question is not whether to transition to gantry-optimised flat cables—it's when and how to execute that transition most effectively to maximise operational reliability, crane availability, and competitive performance.

Ready to upgrade your gantry crane cable infrastructure to purpose-engineered flat systems optimised for high-speed gantry operations? Contact our Australian port and industrial specialists to discuss your specific gantry crane requirements and operational challenges, request detailed technical specifications and durability data, explore cable configurations optimised for your gantry speeds and mechanical stress environments, and develop an infrastructure upgrade strategy aligned with your operational and financial objectives. We're here to help you achieve superior reliability, improved crane availability, and competitive port and industrial operations.

How to Reach Us

Get in Touch

SiteMap

hongjing.Wang@feichuncables.com

Product Catalogue

Home

Products

News

Contact Us

Reeling Cable

Festoon Cable

Shore Power Cable

Mining Cable

Scan to add us on WeChat
