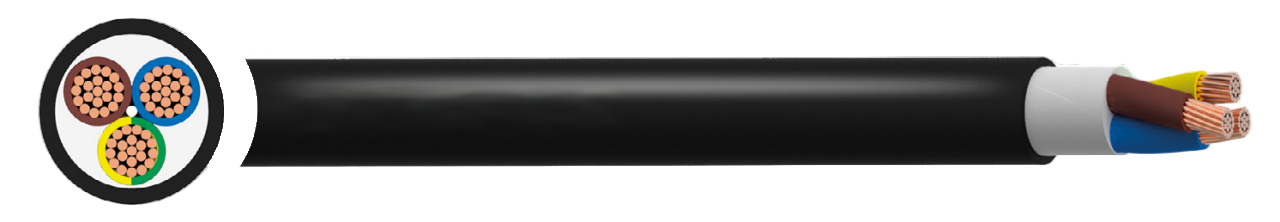

(N)SHÖU O/J Flexible Mining Cable (0.6/1kV)
Rubber sheathed solution for conveyor belts, moving equipment and submersible pumps
$10.00
APPLICATION Flexible cable, rubber sheathed, suitable for mining applications alongside conveyor belts, for energy supply to equipment in movement, industrial apparatus and submersed pumps. It’s resistant to abrasion, oils and flame retardant. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 3kV Ambient Temperature Fixed: -40°C to +80°C Flexed: -25°C to +80°C Maximum Short Circuit Temperature +250°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 5 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 flexible copper
Insulation
Rubber compound
Inner Sheath
Rubber compound
Outer Sheath
Heavy duty rubber compound
Sheath Colour
● Black
STANDARDS
VDE 0250 Part 812, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
