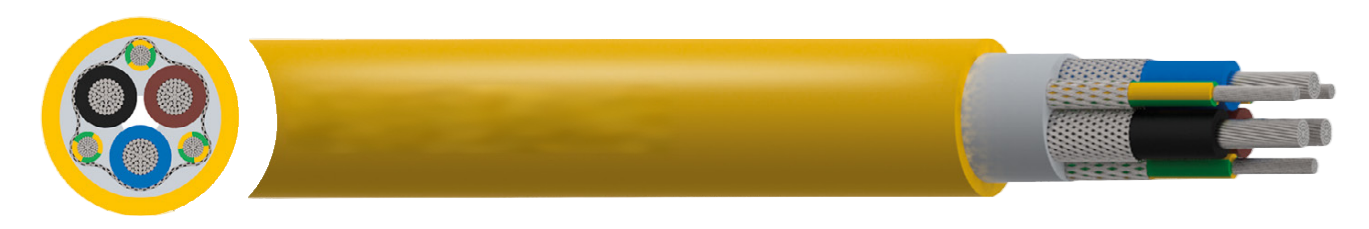

(N)SSCHÖU-J EMC Submersible Cable (0.6/1kV)
Heavy duty screened cable for frequency converters and 100m water depth applications
$40.00
APPLICATION Heavy duty tough rubber flexible cable for dynamic or static applications. It is suitable for installation inside or outside in dry, damp, wet and in hazardous environments. The overall screen provides a high level of electrical safety with EMC protection and makes the cable especially suitable for frequency converter controlled drives. This cable can be permanently submersed in water (fresh, salt, waste, storm, oily, sewage contaminated) to a depth of 100 metres. Suitable for indoor and outdoor applications. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage: 3kV Max AC Voltage: 0.7/1.2kV Max DC Voltage: 1.8kV Temperature Range Maximum Short Circuit Temperature: 250°C Static Condition: -40°C to +80°C Mobile Condition: -25°C to +80°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 5 x overall diameter |
CONSTRUCTION
Phase Conductor
Class 5 tinned copper conductor
Earth Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound
Screen
TCWB (Tinned Copper Wire Braid)
Inner Sheath
Rubber compound
Outer Sheath
Rubber compound
Sheath Colour
. Yellow
STANDARDS
VDE 0250 Part 812, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
