NSSHOEU 1 kV Low Voltage Flexible Rubber Cable – Heavy-Duty Mining & Water Applications
Durable LV Cable Resistant to Mechanical Stress, Oil, UV, and Aggressive Water
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 0.6/1 (1.2) kV |
Test Voltage | 3.5 kV |
AC Test Voltage (Control Cores) | 2 kV |
Maximum Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –25 °C to +60 °C |

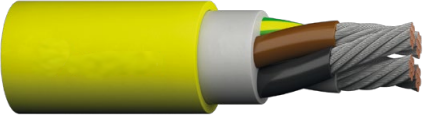

Conductor | Finely stranded tinned copper, class 5 |
Insulation | Special compound 3GI3 EPR rubber |
Core Configuration | Three, four, or five cores laid up |
Outer Sheath | Special waterproof compound rubber |
Additional Sheath | Chlorinated polyethylene (CM/CPE), special compound 5GM5 |
Mechanical Properties | Torsional stress: ±100°/m; Permanent tensile strength: 15 N/mm² |
Bending Radius | 4 × cable diameter (fixed installation); 5 × cable diameter (flexible operation) |
Chemical & Environmental Resistance | Flame retardant, oil resistant, ozone resistant, UV resistant, seawater resistant |
NSSHOEU I is a low voltage flexible rubber cable designed for both flexible use and fixed installations in open-cast mining, quarries, construction sites, as well as other heavy mechanical stress environments. Suitable for indoor and outdoor use, it is approved for explosion-hazard areas, industrial, and agricultural applications. The cable can be permanently submerged in wastewater up to 40 °C and to depths of 2000 meters, with additional suitability in industrial, cooling, surface, rain, mixed waters, and limited use in groundwater and seawater. Resistance testing is advised for aggressive or special solution waters.
Standards and Certifications
DIN VDE 0250-812
MSHA P-189-3
DIN EN 60228 / IEC 60228 / VDE 0295
DIN VDE 0293-308
DIN EN 50363 / DIN VDE 0207-20 / DIN VDE 0207-21
DIN EN 60332-1-2 / IEC 60332-1-2
DIN VDE 0298-4
DIN EN 50525-2-21
DIN EN 60811-404 / IEC 60811-404
Product Features
Flexible and Durable: Designed for challenging open-cast mining, industrial, and agricultural environments with high mechanical stress.
Water Resistant: Suitable for permanent submersion in wastewater up to 40 °C and depths up to 2000 m; compatibility with various water types recommended to verify resistance.
High Mechanical Strength: Torsional stress tolerance and tensile strength support rugged deployment conditions.
Safe and Certified: Flame retardant and halogen-free compounds ensure safe use in hazardous and industrial areas.
Versatile Core Configurations: Available in three, four, or five core versions to suit varied electrical needs.
Application Areas

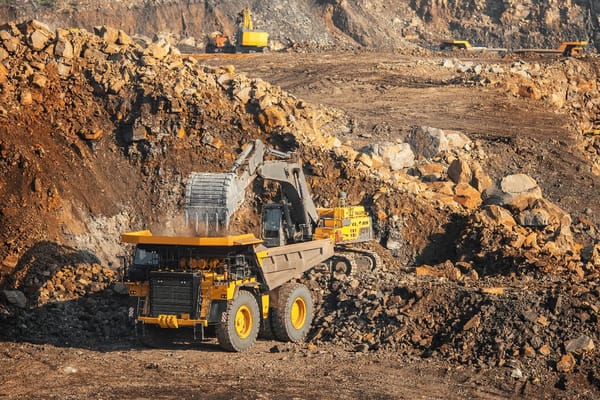

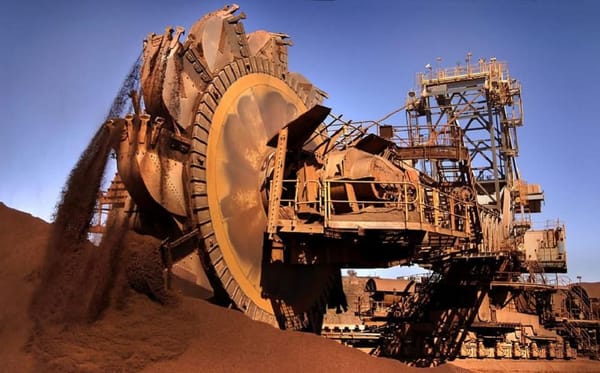

Ideal for power supply and flexible connection in open-cast mining, quarries, construction, explosion hazard zones, agriculture, and submersible pump applications.
Installation and Maintenance
Installation per VDE 0298-3 bending radius recommendations. Regular inspection advised, especially when exposed to aggressive or compositionally complex water environments.
Customization Services
Available in various core counts, conductor sizes, sheath types, and lengths according to customer requirements.
Contact Us
For quotations, technical datasheets, and customized low voltage flexible rubber cable solutions, please contact our sales or technical teams.
