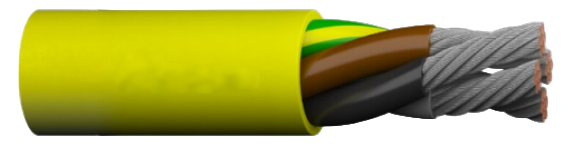

(N)SSHOEU PUR 1 kV Halogen-Free Flexible Cable – Heavy-Duty Mining Cable
Durable PUR Cable for Fixed and Mobile Installations in Quarries and Construction Sites
$10.00

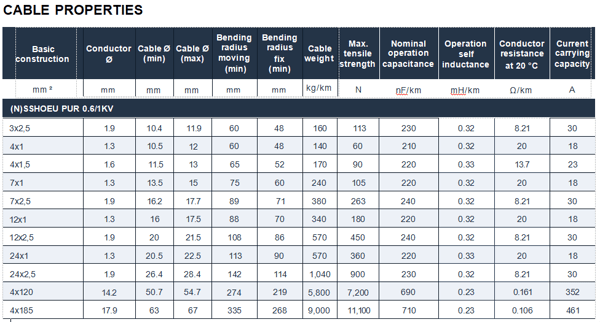

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 0.6/1 (1.2) kV |
Test Voltage | 3.5 kV |
AC Test Voltage (Control Cores) | 2 kV |
Maximum Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –30 °C to +80 °C |
Conductor | Finely stranded tinned copper, class 5 |
Insulation | Special compound 3GI3 EPR rubber |
Core Configuration | Three, four, or five cores laid up |
Outer Sheath | Polyurethane (PUR) |
Mechanical Properties | Torsional stress: ±50°/m; Permanent tensile strength: 15 N/mm² |
Bending Radius | 4 × cable diameter (fixed installation); 5 × cable diameter (flexible operation) |
Chemical & Environmental Resistance | Flame retardant (EN/IEC 60332-1-2 compliant), halogen free, oil resistant, ozone resistant, UV resistant, seawater resistant (max depth 10 m) |
(N)SSHOEU PUR is a halogen-free low voltage flexible cable designed for both flexible use and fixed installation in open-cast mining, quarries, construction sites, and similar applications subject to heavy mechanical stresses. Suitable for indoor and outdoor environments including explosion-hazard areas, industry, and agriculture, it is engineered for permanent use in wastewater up to 40 °C and depths up to 2000 meters. It also performs well in industrial water, cooling water, surface water, rainwater, and mixed water, with limited suitability in groundwater and seawater. Resistance testing is recommended when exposed to aggressive or chemically special waters.
Standards and Certifications
DIN VDE 0250-812
DIN EN 60228 / IEC 60228 / VDE 0295
DIN VDE 0293-308
DIN EN 50363 / DIN VDE 0207-20
DIN EN 60332-1-2 / IEC 60332-1-2
DIN VDE 0298-4
IEC 60811-404
Product Features
Halogen-Free Polyurethane Outer Sheath: Offers excellent resistance against abrasion, tearing, oils, ozone, UV radiation, and limited seawater exposure.
Flexible and Durable: Suitable for heavy mechanical stress applications, both flexible and fixed installations.
Wide Temperature Range: Operates reliably between –40 °C and +80 °C ambient temperatures.
Multiple Core Configurations: Available in three, four, or five cores to suit a variety of electrical applications.
Strict Safety Compliance: Flame retardant cable certified to international safety standards.
Application Areas
Ideal cable for power supply and flexible connection in open-cast mining, quarries, construction sites, explosion hazardous environments, industrial and agricultural applications.
Installation and Maintenance
Installed per VDE 0298-3 bending radius guidelines. Regular inspection advised, especially under frequent mechanical stress and in aggressive environments.
Customization Services
Available with varied core counts, conductor sizes, sheath colors, and lengths to meet specific operational needs.
