(N)SSHOEU PUR 1 KV Mining Cable: Heavy-Duty Flexible Solution for Opencast Mining & Quarry Applications

Introduction: Power Distribution Challenges in Modern Mining Operations

The global mining industry faces unprecedented challenges in maintaining reliable electrical infrastructure across increasingly demanding operational environments. Opencast mining operations, quarries, and construction sites require power distribution systems that can withstand extreme mechanical stress, chemical exposure, moisture ingress, and temperature fluctuations—often simultaneously. When mining equipment experiences unexpected downtime due to cable failure in a deep quarry pit or an opencast mine, the economic impact extends far beyond simple repair costs, affecting production schedules, equipment utilization rates, and worker safety.

Consider a typical scenario: a submersible pump operating 1,800 meters below the surface in a flooded quarry requires continuous power supply through cables submerged in chemically complex wastewater. Or envision mobile crushing equipment in an opencast coal mine, where cables must endure constant flexing, abrasion from coal dust, exposure to diesel fuel, and ambient temperatures ranging from -25°C during winter nights to +60°C under summer sun. These real-world conditions demand specialized cable solutions that conventional industrial cables simply cannot provide.

The SSHOEU PUR 1 KV mining cable represents an engineering solution specifically designed to address these challenges. This heavy-duty flexible cable combines advanced polyurethane (PUR) sheathing technology with robust construction methods, delivering reliable performance in the harshest mining environments while maintaining compliance with stringent international standards including DIN VDE 0298 Part 3.

Understanding SSHOEU PUR 1 KV Mining Cable Specifications

Core Construction and Conductor Design

The foundation of any reliable mining cable begins with its conductor design. The SSHOEU PUR 1 KV mining cable utilizes finely stranded tinned copper conductors manufactured to Class 5 flexibility standards according to DIN EN 60228/IEC 60228/VDE 0295. This specific conductor class ensures superior flexibility compared to standard industrial cables, enabling the cable to withstand repeated bending cycles without conductor fracturing—a critical requirement for mobile mining equipment.

Tinning the copper conductors provides essential corrosion resistance when cables operate in moisture-laden environments. The fine stranding pattern distributes mechanical stress evenly across individual wire strands, preventing stress concentration points that could lead to premature failure. Available conductor cross-sections range from 1 mm² for control applications to 185 mm² for high-current power distribution, accommodating diverse mining equipment power requirements.

Insulation System: EPR Rubber Technology

The cable employs ethylene propylene rubber (EPR) insulation with specialized compound formulations (designated 3GI3) that provide exceptional electrical performance and mechanical durability. EPR insulation offers several advantages over conventional PVC or XLPE insulation systems in mining applications:

Thermal Performance: The insulation maintains integrity at maximum conductor temperatures of 90°C during normal operation and withstands short-circuit temperatures up to 250°C. This thermal resilience prevents insulation degradation during temporary overload conditions common in mining operations.

Mechanical Resilience: EPR rubber possesses inherent elasticity that absorbs mechanical shock and vibration without developing microcracks. This property proves invaluable when cables connect to mobile drilling equipment, excavators, or haul trucks operating on rough quarry terrain.

Chemical Compatibility: The EPR compound resists degradation from mineral oils, hydraulic fluids, diesel fuel, and weak acids commonly encountered in mining environments. This chemical resistance extends cable service life significantly compared to cables with standard insulation materials.

Polyurethane Outer Sheath: The Protective Barrier

The defining characteristic of SSHOEU PUR 1 KV cables lies in their halogen-free polyurethane outer sheath. This advanced polymer provides exceptional protection against environmental hazards specific to mining operations:

Abrasion Resistance: Mining cables frequently drag across rock surfaces, concrete floors, and steel equipment during installation and operation. The PUR sheath exhibits superior abrasion resistance compared to conventional chloroprene rubber (neoprene) or PVC sheaths, substantially reducing sheath penetration failures.

Notch Propagation Resistance: When a PUR sheath sustains minor damage, the polyurethane chemistry prevents crack propagation. Conventional rubber sheaths tend to tear extensively from small nicks, whereas PUR sheaths contain damage locally, maintaining cable integrity.

UV and Ozone Resistance: Cables installed on surface mining equipment face constant ultraviolet radiation and atmospheric ozone exposure. The PUR sheath formulation incorporates stabilizers that prevent polymer chain scission, eliminating the surface cracking commonly observed on aged rubber-sheathed cables.

Low-Temperature Flexibility: The specialized PUR compound maintains flexibility down to -30°C during cable movement, enabling year-round operation in cold-climate mining regions without sheath embrittlement.

Primary Applications in Mining and Industrial Environments

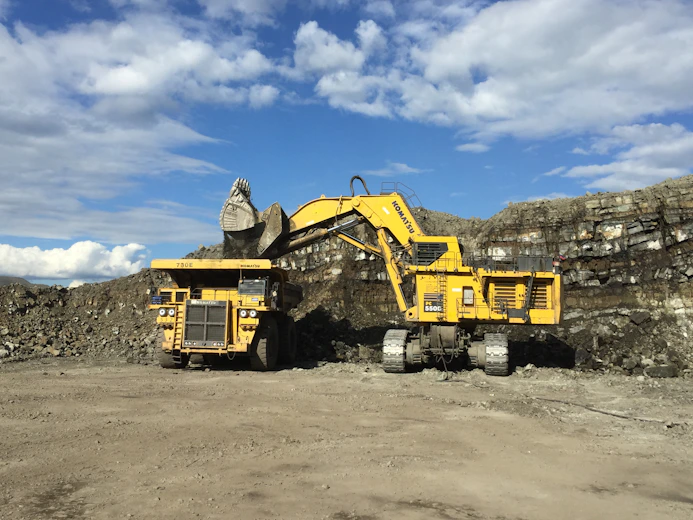

Opencast Mining Operations

Opencast mining presents unique cable application challenges due to the scale of equipment and environmental exposure. Dragline excavators, bucket-wheel excavators, and mobile crushers require flexible mining cables that can accommodate continuous movement while delivering reliable power.

In dragline operations, cables must withstand torsional stress as the equipment rotates through 360-degree arcs while maintaining electrical continuity. The SSHOEU PUR 1 KV cable's construction, with finely stranded conductors and flexible core arrangement, allows torsional stress up to ±50°/m without conductor damage or insulation failure. This torsional capability proves essential for trailing cable applications where the cable experiences complex three-dimensional movement patterns.

Large mobile equipment in opencast coal mines operates in coal dust-laden atmospheres where explosive gas concentrations may develop. The cable's approval for explosion-hazard areas enables safe deployment across the entire mine site without requiring separate cable specifications for different zones.

Quarry and Aggregate Operations

Quarries extracting limestone, granite, basalt, and aggregate materials present particularly demanding cable operating conditions. Stone crushing circuits, screening plants, and conveyor systems require both fixed installation cables and flexible connections for mobile equipment.

Submersible Pump Applications: Many quarries below the water table require continuous dewatering. Submersible pumps operating in quarry sumps demand cables rated for permanent underwater operation. The SSHOEU PUR 1 KV mining cable specifications include operation in wastewater up to 40°C at depths reaching 2,000 meters, making it suitable for deep quarry dewatering applications.

The cable demonstrates excellent seawater resistance, extending its applicability to coastal quarries where brackish groundwater infiltration occurs. However, when operating in aggressive water compositions or special chemical environments, specific resistance testing is recommended to verify long-term compatibility.

Mobile Crushing Systems: Modern quarries increasingly employ mobile crushing and screening plants that relocate within the pit as extraction progresses. These mobile plants require flexible power cables that can be repeatedly coiled, deployed, and repositioned without degradation. The minimum bending radius specifications—5 times cable diameter for flexible operation and 4 times cable diameter for fixed installation according to DIN VDE 0298-3—ensure the cable accommodates the tight bend radii often encountered around mobile equipment.

Construction Site Power Distribution

Major construction projects including tunnel excavation, dam construction, and infrastructure development share many characteristics with mining operations: heavy mobile equipment, harsh environmental conditions, and demanding duty cycles.

The cable's compliance with DIN VDE 0250-812 standards validates its suitability for construction applications. The halogen-free sheath composition provides safety advantages in enclosed spaces such as tunnels, where halogen-containing cable materials could release toxic gases during fire events.

Water and Environmental Resistance Performance

Understanding DIN VDE 0298 Part 3 Requirements

The SSHOEU PUR 1 KV mining cable's design addresses the comprehensive requirements of DIN VDE 0298 Part 3, the German standard governing cables for permanent operation in water. This standard establishes specific performance criteria that distinguish true submersible cables from water-resistant cables.

Water Types and Compatibility: The standard recognizes multiple water environments with varying aggressiveness:

• Industrial water and cooling water: Typically controlled chemistry with moderate conductivity

• Surface water and rainwater: Variable quality depending on atmospheric conditions and surface contamination

• Groundwater: Often contains dissolved minerals and varies significantly by geological formation

• Seawater and brackish water: High salinity requiring enhanced corrosion resistance for metallic components

• Wastewater: May contain organic compounds, acids, and chemical contaminants requiring thorough compatibility assessment

The cable achieves permanent water resistance through multiple design features. The chlorinated polyethylene (CPE) outer sheath provides the primary water barrier with excellent moisture permeation resistance. The EPR inner sheath adds a secondary moisture barrier, creating a dual-protection system. This redundant design ensures that minor sheath damage does not immediately compromise cable electrical integrity.

Maximum Depth and Pressure Ratings

The 2,000-meter depth rating represents more than simple hydrostatic pressure resistance. At this depth, cables experience approximately 200 bar (2,900 psi) of water pressure, which creates several potential failure mechanisms:

Radial Compression: Water pressure compresses the cable's circular cross-section, potentially creating gaps between conductor strands or between insulation and sheath layers. The SSHOEU PUR cable's construction uses compacted conductor stranding and tightly applied insulation layers that resist compression deformation.

Water Migration: Even minor sheath imperfections could allow water migration along the cable length under high pressure. The cable design incorporates water-blocking features within the core construction that limit longitudinal water propagation.

Connector Sealing: The depth rating assumes proper cable termination using submersible-rated connectors or junction boxes. Surface-style connections will not maintain water integrity at depth, making proper termination selection critical for submersible applications.

Temperature Performance in Wet Environments

The specified 40°C maximum water temperature for continuous submersion reflects the thermal limits of the complete cable system. Several factors influence this rating:

Water conducts heat away from the cable more effectively than air, improving current-carrying capacity in submerged applications. However, elevated water temperatures reduce this cooling benefit while simultaneously accelerating chemical aging of polymeric materials. The 40°C limit balances these competing factors to ensure long-term reliability.

For temporary exposure to higher temperatures—such as pumps in shallow sumps during summer months—the cable's 90°C conductor temperature rating provides thermal margin. However, continuous operation above rated water temperatures requires specific application analysis to verify acceptable service life.

Explosion-Hazard Area Compatibility

Mining operations frequently encounter potentially explosive atmospheres, particularly in coal mines, aggregate facilities with combustible dust, and locations where methane or other flammable gases may accumulate. The SSHOEU PUR 1 KV cable's approvals for explosion-hazard areas enable deployment across these sensitive locations.

Agricultural and Industrial Explosion Zones

The cable's suitability extends beyond mining to agricultural facilities (grain handling, feedstock processing) and chemical industries where flammable vapors or combustible dusts create explosion risks. The halogen-free cable construction eliminates corrosive halogen acid generation during fire events, reducing secondary damage to electrical equipment and supporting structures.

Proper cable selection for explosion-hazard areas requires understanding local regulations and classification systems. European ATEX directives, North American NEC classifications, and IECEx international standards each employ different terminology for equivalent hazard levels. Mining engineers should verify that cable specifications align with their specific regional requirements and zone classifications.

Installation Guidelines and Bending Radius Requirements

Proper installation practices directly impact cable reliability and service life. The SSHOEU PUR 1 KV mining cable specifications include detailed installation parameters derived from DIN VDE 0298-3 standards.

Minimum Bending Radius

The distinction between fixed installation and flexible operation bending radii reflects different mechanical stress conditions:

Fixed Installation (4× cable diameter): Applies to cables permanently installed along conveyor galleries, cable trays, or conduit systems. Once installed, these cables experience minimal movement, allowing tighter installation radii. For a 50 mm diameter cable, the minimum installation bend radius equals 200 mm.

Flexible Operation (5× cable diameter): Applies to trailing cables, reeling applications, and connections to mobile equipment. The increased bending radius accommodates the cumulative fatigue effects of repeated flexing cycles. The same 50 mm cable requires a 250 mm minimum operating bend radius during movement.

Violating minimum bending radius specifications concentrates mechanical stress on conductors and insulation, creating failure initiation points. Field observations consistently show that premature cable failures correlate strongly with installation practices that exceed minimum bend radius limits.

Torsional Stress Management

The ±50°/m torsional stress rating addresses cable applications where twisting occurs along the cable length. Mobile drilling equipment, rotating excavator platforms, and certain hoist systems impose torsional loads that compound normal bending stresses.

To visualize torsional stress: a cable experiencing 50° of twist per meter rotates 180° over a 3.6-meter length. This represents substantial twisting that requires specialized conductor stranding patterns and core arrangements to prevent conductor damage. Standard industrial cables without torsional ratings may fail rapidly under these conditions.

Standards Compliance and Quality Assurance

International Standards Framework

The SSHOEU PUR 1 KV mining cable complies with multiple international standards that collectively ensure comprehensive quality and performance:

DIN VDE 0250-812: Establishes general requirements for flexible cables including construction methods, marking, and testing protocols. This foundational standard ensures basic cable quality regardless of specific application.

DIN EN 60228/IEC 60228/VDE 0295: Defines conductor classifications, stranding patterns, and resistance values. Compliance ensures consistent electrical performance across manufacturers and production batches.

DIN VDE 0293-308: Specifies core identification methods through color coding and numbering systems, preventing installation errors in multi-core cables.

DIN EN 50363/DIN VDE 0207-20 and 0207-21: Establishes compound specifications for insulation and sheathing materials, including aging resistance, mechanical properties, and chemical compatibility.

DIN EN 60332-1-2/IEC 60332-1-2: Defines flame propagation testing methods, verifying that cables will not support flame spread along their length during fire exposure.

DIN EN 60811-404/IEC 60811-404: Specifies chemical resistance testing protocols for cable materials, confirming resistance to oils, acids, and solvents common in mining.

DIN VDE 0298-4: Establishes electrical parameter requirements and current-carrying capacity calculation methods for power cables in various installation conditions.

DIN VDE 0298-3: Provides comprehensive mechanical parameter specifications including bending radius requirements, tensile strength limits, and installation guidelines that directly govern mining cable applications.

Thermal Performance and Current-Carrying Capacity

Understanding cable thermal behavior proves essential for proper system design and preventing premature failures due to thermal overload.

Conductor Temperature Limits

The 90°C maximum conductor temperature during normal operation reflects the thermal limits of EPR insulation aging characteristics. Continuous operation at this temperature enables 20-30 year service life under typical conditions. Operating below maximum rated temperature extends service life exponentially—a cable operated at 70°C average conductor temperature may achieve 40+ years of reliable service.

The 250°C short-circuit temperature rating addresses momentary thermal excursions during fault conditions. Modern protective devices typically clear short-circuit faults within 1-2 seconds, limiting conductor temperature rise. The EPR insulation withstands these brief thermal transients without permanent damage, allowing the cable to return to service after fault clearing.

Ambient Temperature Considerations

The specified ambient temperature ranges recognize different installation environments:

Fixed Installation (-40°C to +80°C): Cables permanently installed in underground galleries benefit from stable earth temperature, rarely experiencing extreme temperature excursions. Surface installations must accommodate solar heating, which can drive cable surface temperatures 20-30°C above ambient air temperature.

Flexible Installation (-30°C to +80°C): The reduced low-temperature limit for flexible applications reflects the increased risk of sheath cracking during cable movement at extreme cold temperatures. The polyurethane sheath maintains adequate flexibility to -30°C, but installations in colder climates should incorporate heat tracing or protective enclosures if cable movement occurs during winter.

Current Capacity Determination

Published current-carrying capacity values assume specific installation conditions: single cable in free air at 30°C ambient temperature. Actual installation conditions significantly affect current capacity:

Installation Method Effects: Cables installed in conduit or cable trays dissipate heat less effectively than free-air installations, reducing current capacity by 15-30%. Direct burial in soil with good thermal conductivity may actually increase current capacity above free-air ratings.

Ambient Temperature Correction: High ambient temperatures require current derating. Operating at 50°C ambient typically reduces current capacity by approximately 20% compared to 30°C base conditions.

Grouping Factors: Multiple cables installed in close proximity generate mutual heating, requiring additional derating. Engineering standards provide grouping factors based on cable quantity, spacing, and arrangement.

Mechanical Properties and Durability Features

The SSHOEU PUR 1 KV cable's mechanical specifications directly address the physical abuse mining cables endure throughout their service life.

Tensile Strength and Cable Pulling

The permanent tensile strength rating of 15 N/mm² governs pulling forces during installation. This specification prevents conductor deformation or insulation compression when installers pull cables through conduit, around sheaves, or across rough terrain. For a 3×50 mm² cable with approximately 160 mm² total copper area, maximum pulling force equals 2,400 N (approximately 540 pounds force).

Proper installation technique distributes pulling force across all conductors and core elements rather than concentrating loads. Cable grips or pulling eyes attached to the cable's outer sheath and core structure ensure proper force distribution. Never pull cables by conductors alone, as this concentrates stress and may cause conductor separation from insulation.

Flame Retardant Performance

Compliance with DIN EN 60332-1-2/IEC 60332-1-2 flame testing standards ensures cables will not support flame propagation along their length. This characteristic proves critical in enclosed mining areas where cable fires could block escape routes or generate toxic smoke.

The halogen-free formulation provides additional safety benefits. When halogen-containing cables burn, they release hydrochloric acid or hydrofluoric acid vapors that create visibility problems, respiratory hazards, and cause extensive corrosion damage to electrical equipment. Halogen-free cables generate significantly lower smoke density and less toxic combustion products.

Oil and Chemical Resistance

Mining equipment operates in oil-contaminated environments. Hydraulic fluid leaks, diesel fuel spills, and mineral oil presence create constant chemical exposure for cables. The polyurethane sheath formulation specifically addresses these common mining contaminants, maintaining mechanical properties after prolonged exposure according to IEC 60811-404 testing protocols.

However, chemical resistance varies with specific compounds and concentrations. Strong solvents, concentrated acids, or specialized industrial chemicals may affect cable materials differently than standard mining exposures. For applications involving unusual chemical exposure, manufacturers can provide specific compatibility data or conduct application-specific testing.

Conclusion: Selecting the Right Cable Solution

The SSHOEU PUR 1 KV mining cable addresses the comprehensive challenges mining and quarry operations face in electrical power distribution. Its combination of flexible construction, environmental resistance, safety features, and standards compliance makes it suitable for demanding opencast mining, quarry, and construction applications.

Successful cable selection requires matching specific cable characteristics to application requirements. Engineers must consider:

• Installation environment (indoor/outdoor, underground, submersible)

• Mechanical stress conditions (fixed, flexible, reeling, trailing)

• Temperature extremes and thermal cycling

• Chemical exposure from mining processes

• Electrical loading and future capacity needs

• Regulatory requirements and approval standards

When properly specified, installed, and maintained, heavy-duty flexible mining cables deliver decades of reliable service, minimizing operational disruptions and supporting safe, efficient mining operations. The initial investment in appropriate cable specifications returns value through extended service life, reduced maintenance costs, and enhanced operational safety across the mining facility's productive lifetime.
