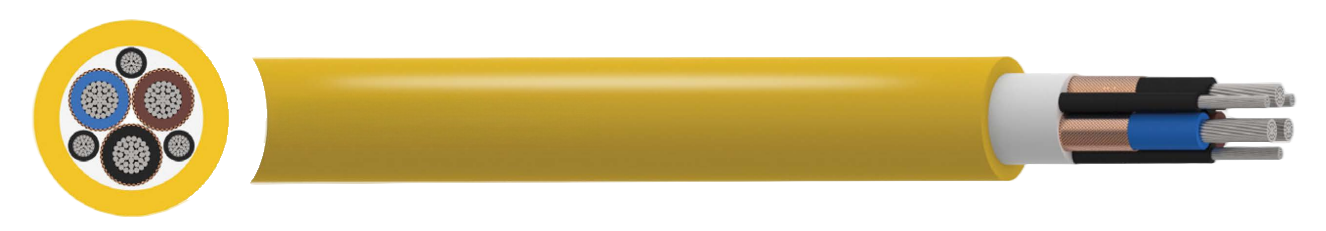

NSSHQU Heavy Duty Submersible Cable (0.6/1kV)
Ultra-tough rubber flexible cable for extreme environments and 100m water depth
$2.00
APPLICATION
Heavy duty tough rubber flexible cable with or without
individually earth screened cores for dynamic or static
applications in aggressive environments. Flame retardant,
abrasion, cut, notch and tear resistant. Good resistance to
oil and fats. Suitable for installation in dry, damp, wet and
in hazardous environments. For power supplies where high
levels of mechanical stress and abrasion are expected. Can be permanently submersed in fresh water, salt water, storm water, oily water and sewage contaminated water to a depth of 100
metres. Suitable for indoor and outdoor applications.
CHARACTERISTICS
Voltage Rating (Uo/U)
0.6/1kV
Test Voltage
3kV
Ambient Temperature
Fixed: -40°C to +80°C
Flexed: -25°C to +80°C
Maximum Short Circuit Temperature
+250°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Submersible
100m
CONSTRUCTION
Phase Conductor
Class 5 flexible tinned copper conductor
Insulation
Rubber compound Type 3Gl3

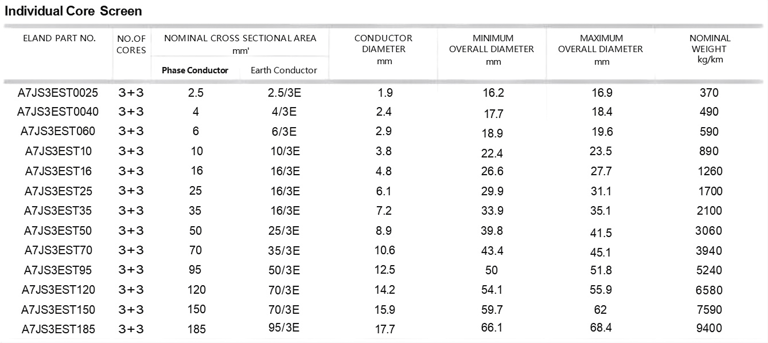

Individual Core Screen*
Copper braid up to 10mm2, copper wires from 16mm2
Control Conductors*
Class 5 flexible tinned copper conductor
Inner Sheath
Rubber compound Type GM1b
Outer Sheath
Rubber compound Type 5GM5
Sheath Colour
●Yellow
CABLE THIRD-PARTY ACCREDITATION
VDE APPROVED - Cables are tested and approved by the VDE Testing & Certification Institute.
STANDARDS
VDE 0250 Part 812, VDE 0295, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
